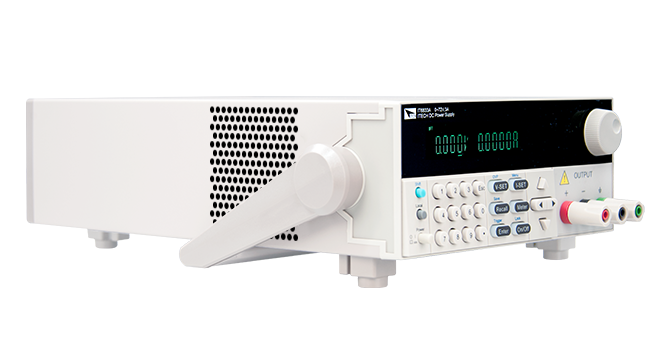

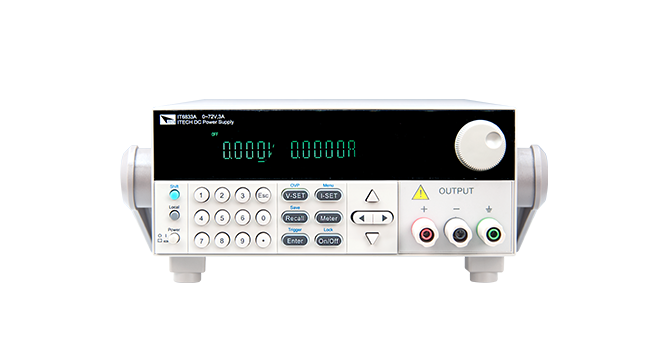

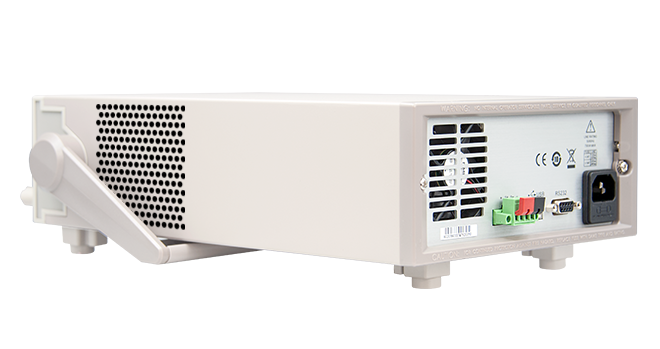

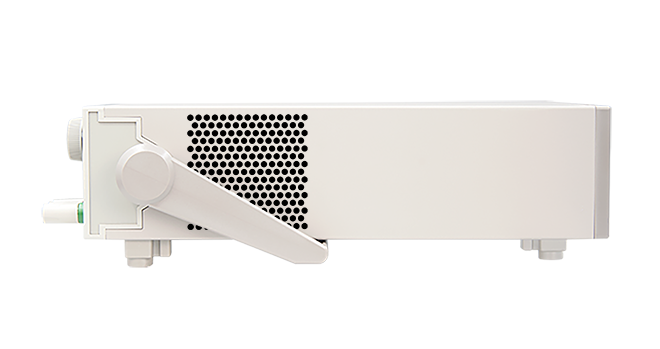

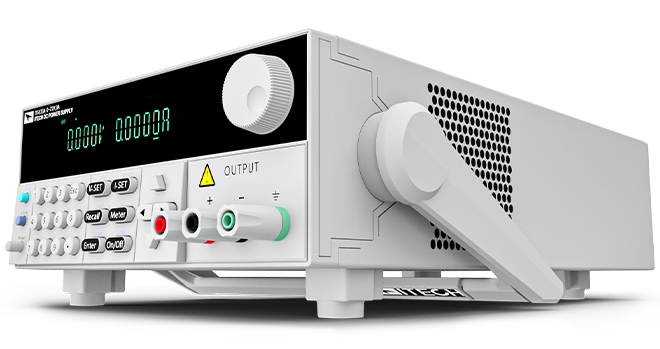

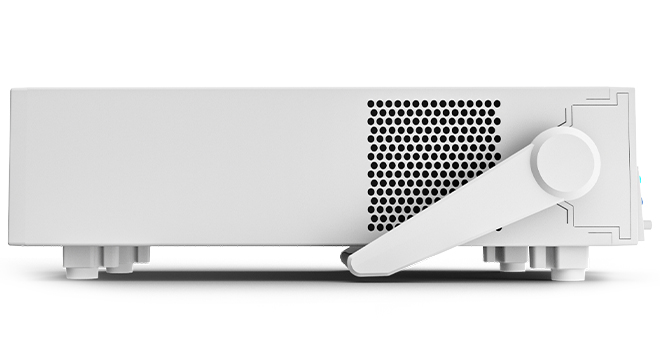

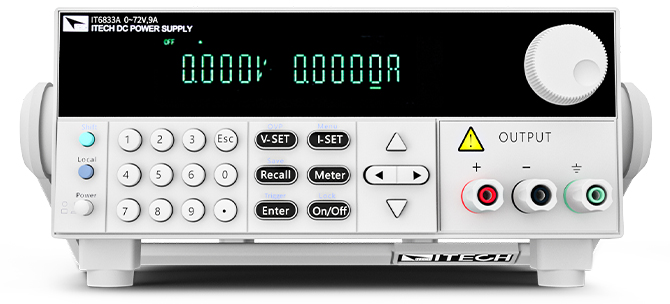

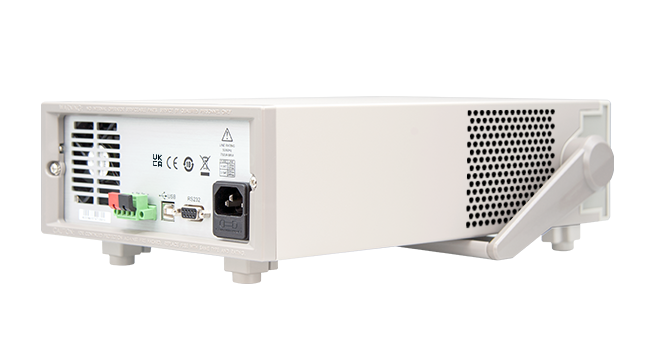

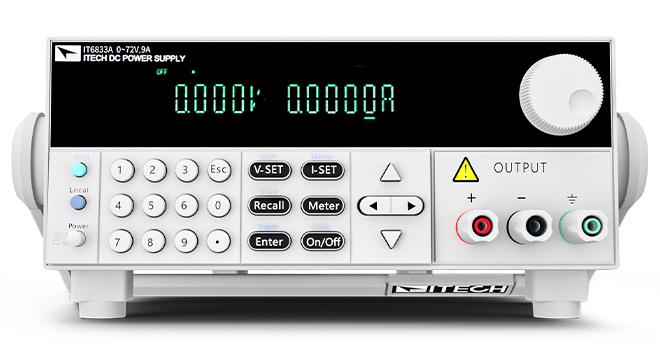

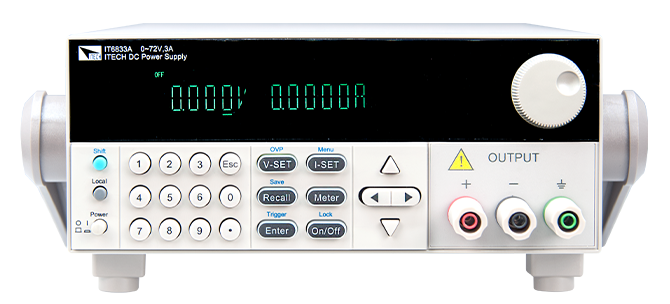

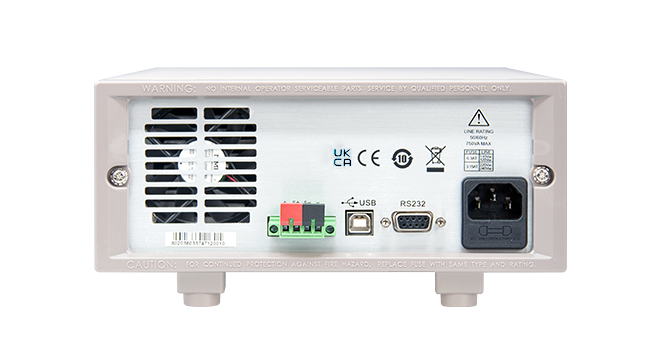

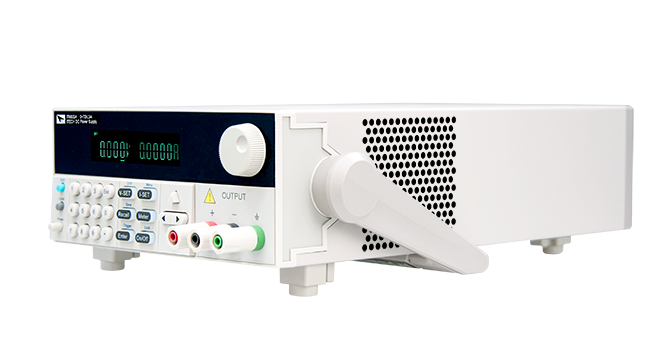

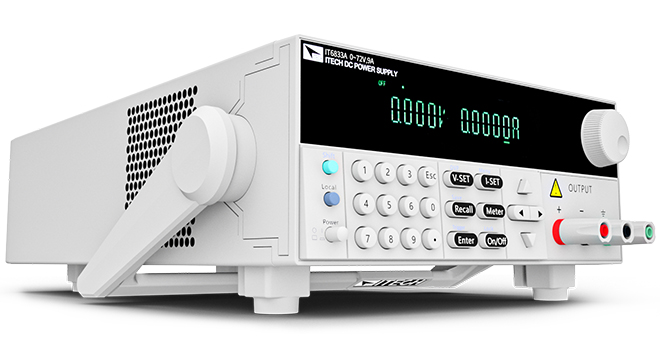

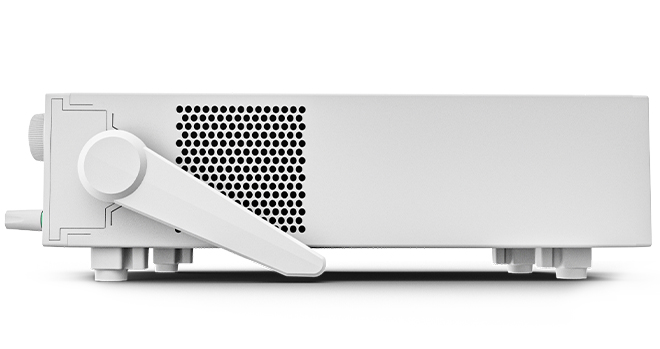

IT6800A/B Single Channel Programmable DC Power Supply

IT6800 single channel programmable DC power supply (180W-216W) with resolution 1mV/0.1mA, users can adjust the voltage/current stepping by pressing the left and right keys to moving the cursor and programs by the front panel. OVP/OTP protection. IT6800 supports timer function and their built-in RS232 and USB communication interfaces offer you a convinience testing experience.

  • Product catalog
  • Product video
  • Related technical articles
  • User's Manual
Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
IT6831A
18V
10A
180W
1mV/0.1mA
≤0.04%+8mV/ ≤0.1%+12mA
USB/RS232
½ 2U
inquiry
IT6832A
32V
6A
192W
1mV/0.1mA
≤0.04%+8mV/ ≤0.1%+8mA
USB/RS232
½ 2U
inquiry
IT6832B
32V
6A
192W
1mV/0.1mA
≤0.04%+8mV/ ≤0.1%+8mA
USB/RS232/GPIB
½ 2U
inquiry
IT6833A
72V
3A
216W
1mV/0.1mA
≤0.04%+8mV/ ≤0.1%+5mA
USB/RS232
½ 2U
inquiry
IT6833B
72V
3A
216W
1mV/0.1mA
≤0.04%+8mV/ ≤0.1%+5mA
USB/RS232/GPIB
½ 2U
inquiry
IT6835A
50V
4A
200W
1mV/0.1mA
≤0.04%+8mV/ ≤0.1%+8mA
USB/RS232
½ 2U
inquiry
IT6835B
50V
4A
200W
1mV/0.1mA
≤0.04%+8mV/ ≤0.1%+8mA
USB/RS232/GPIB
½ 2U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

 Support panel programming, numeric keypad operation
 High accuracy and resolution 1mV/0.1mA
 Outputs according to the programmed voltage and current values
 Adjust the voltage and current via knob
 Lower ripple and noise
 Remote sense
 Built-in RS232 / USB/ GPIB interface *1
 Intelligent fan control, save energy and reduce noise


*1 Built-in GPIB is available with IT6800B series only

Functions and Advantages
Support panel programming function (List)
The IT6800A Series single channel Programmable DC Power Supply generates a variety of output change sequences by sequentially operating each single step value and time. The parameters in the sequence include time units, single-step voltage, single-step current, single-step time, and the next step , looping steps, saving files, and so on. After the sequential operation is completed, when a trigger signal is received, the power is turned on until the sequence operation is completed or another trigger signal is received again.



Remote sense function

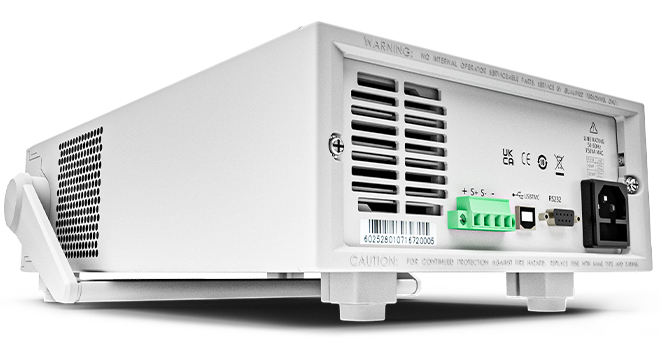

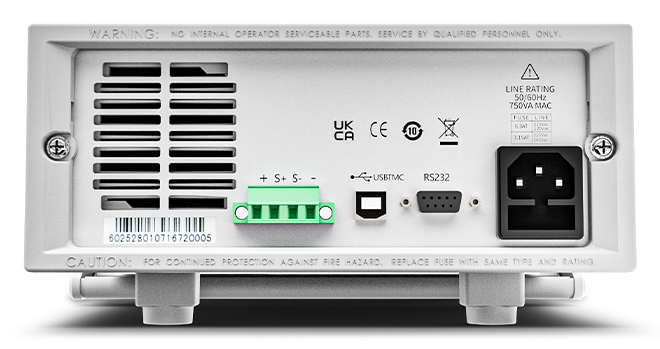

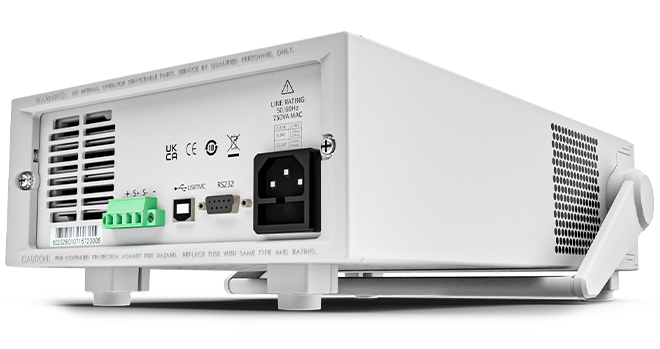

In order to avoid the pressure drop caused by the length of the wire connecting the load, the remote test allows measurement directly on the terminal of the test object to improve the measurement accuracy. S +, S is the remote measurement terminal, +, - is the output positive and negative terminals. When using the remote measurement function, it is necessary to disconnect the wires connected to the "+, -" terminals and lead S +, S to the test object.



Output timer
IT6800A/B series supports Output timer function,users can start this function in the Menu and set the time. The timers starts working when the unit is powered on. The unit will automatically turn off the output when the set time is due. Timing time setting range 0.1 - 9999.9S or 0.1 - 9999.9M.
