IT6300 Triple Channels DC power supply

IT6300 series is high-performance programmable triple channels DC power supply, each output voltage and current can be setfrom0 tomaximum rated output.This series provides series connection, parallelconnectionand synchronous functions ofchannel, which offer multi-purpose solutions forcustomerstest.IT6300 seriesis with high resolution1mV / 1mAand remote sense function,  which make the test more accurate. Withbuilt-in standard USB / RS232 / GPIB communication interface,IT6300 seriesgreatly enhance the communication speed, and customersalsocanadjust the digital step value byusing the cursorto  to facilitate the operation.



  • Product catalog
  • Product video
    Operational video
    Product description
  • Related technical articles
  • User's Manual
Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
IT6302
CH1:30V;;CH2:30V;;CH3:5V ;;
CH1:3A;;CH2:3A;;CH3:3A;;
CH1:90W;CH2:90W;CH3:15W;
10mV/1mA
≤0.06%+20mV/ ≤0.2%+10mA
Optional RS232/USB
½ 2U
inquiry
IT6322
CH1:30V;;CH2:30V;;CH3:5V ;;
CH1:3A;;CH2:3A;;CH3:3A;;
CH1:90W;CH2:90W;CH3:15W;
1mV/1mA
≤0.03%+10mV/ ≤0.1%+5mA
Optional RS232/USB/GPIB
½ 2U
inquiry
IT6322A
CH1:30V;;CH2:30V;;CH3:5V ;;
CH1:3A;;CH2:3A;;CH3:3A;;
CH1:90W;CH2:90W;CH3:15W;
1mV/1mA
≤0.03%+10mV/ ≤0.1%+5mA
RS232/USB
½ 2U
inquiry
IT6322B
CH1:30V;;CH2:30V;;CH3:5V ;;
CH1:3A;;CH2:3A;;CH3:3A;;
CH1:90W;CH2:90W;CH3:15W;
1mV/1mA
≤0.03%+10mV/ ≤0.1%+5mA
RS232/USB/GPIB
½ 2U
inquiry
IT6332A
CH1:30V;;CH2:30V;;CH3:5V ;;
CH1:6A;;CH2:6A;;CH3:3A;;
CH1:180W;CH2:180W;CH3:15W;
1mV/1mA
≤0.03%+10mV/ ≤0.1%+8mA
RS232/USB
½ 2U
inquiry
IT6332B
CH1:30V;;CH2:30V;;CH3:5V ;;
CH1:6A;;CH2:6A;;CH3:3A;;
CH1:180W;CH2:180W;CH3:15W;
1mV/1mA
≤0.03%+10mV/ ≤0.1%+8mA
RS232/USB/GPIB
½ 2U
inquiry
IT6333A
CH1:60V;;CH2:60V;;CH3:5V ;;
CH1:3A;;CH2:3A;;CH3:3A;;
CH1:180W;CH2:180W;CH3:15W;
1mV/1mA
≤0.03%+10mV/ ≤0.1%+5mA
RS232/USB
½ 2U
inquiry
IT6333B
CH1:60V;;CH2:60V;;CH3:5V ;;
CH1:3A;;CH2:3A;;CH3:3A;;
CH1:180W;CH2:180W;CH3:15W;
1mV/1mA
≤0.03%+10mV/ ≤0.1%+5mA
RS232/USB/GPIB
½ 2U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

♦ Triple output voltage, all are adjustable.
♦ Optional serial/ parallel/ track mode*1
♦ The voltage and current for each channel can be displayed at the same time
♦ Small size of 1/2 2U
♦ VFD display
♦ Function keys with LED light
♦ Adjust the digital step value via cursor
♦ Output switch control
♦ High accuracy, high resolution and high stability
♦ Remote measurement function, compensation online pressure drop*2
♦ Comprehensive protection function
♦ Intelligent fan control, reduce noise
♦ Built-in RS232/USB/GPIB communication interface for part of the models

*1:Table 1 for details  *2: IT6300A/B


Functions and Advantages

Track mode

CH1 and CH2, CH2 and CH3, or all three channels to be set as track mode, if any one channel parameter changed, the corresponding parameters of the other channels will also change in direct proportion.
For example, set up voltage and current of CH1 and CH2 to be CH1:4V, 1A; CH2:8V, 2A. Set CH1 and CH2 in track mode, in output off and Meter state, VFD is shown below:

DC power supply

Options & Accessories
  • IT-E30110-AB (Optional)
    10A/1m/Alligator clip - Banana...
  • IT-E151A (Optional)
    19'' Rack mount kit

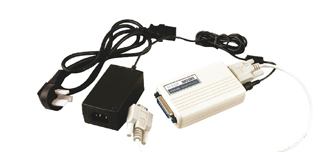

  • IT-E123 (Optional)
    RS485 optical isolation commun...
  • IT-E135 (Optional)
    GPIB optical isolation communi...
  • IT-E122 (Optional)
    USB optical isolation communic...
  • IT-E121 (Optional)
    RS232 optical isolation commun...
  • IT-E30110-BB (Optional)
    10A/1m/Banana plug - Banana pl...
  • IT-E30110-BY (Optional)
    10A/1m/Banana plug - Y termina...

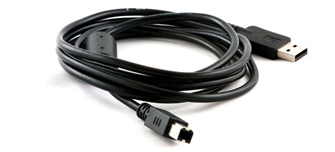

  • USB
    For USB port communication
  • CD (accessory)
    With user manual and communica...

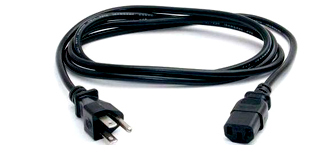

  • AC power cord (accessory)
    AC power cord (accessory)

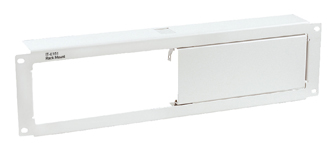

  • IT-E151 (Optional)
    19'' Rack mount kit
