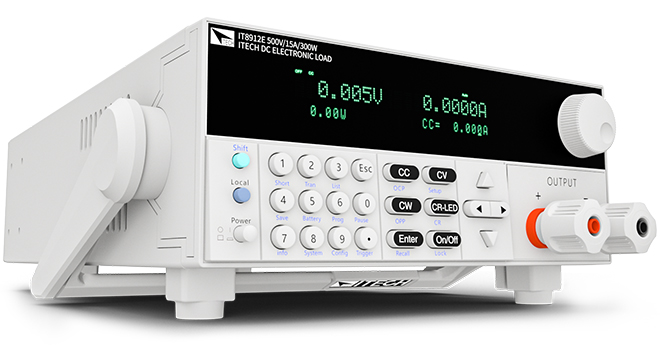

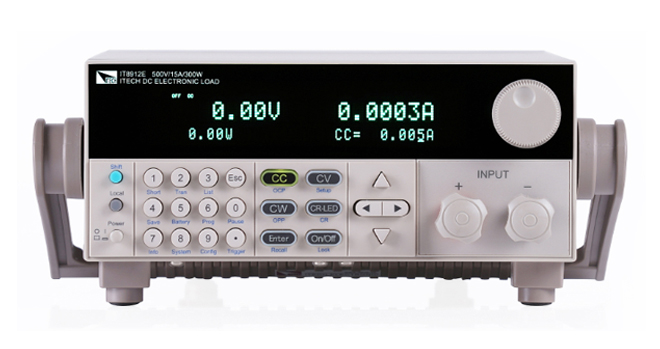

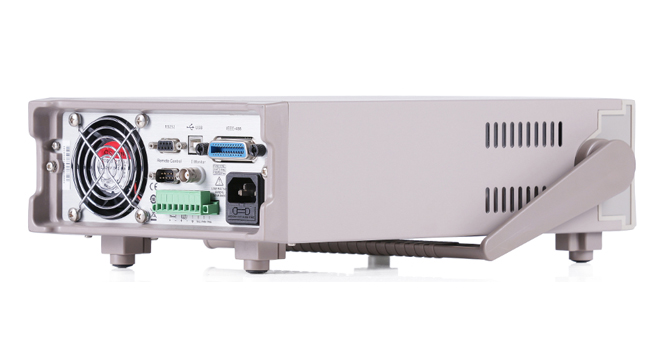

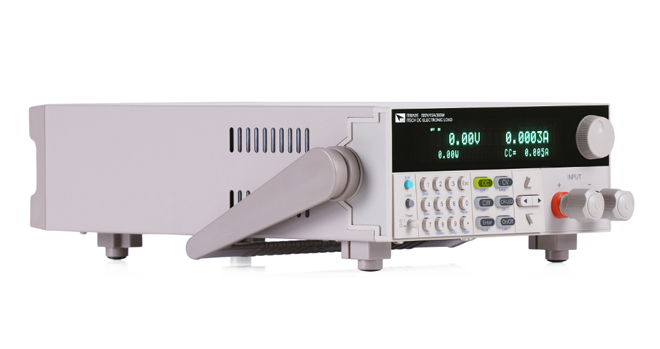

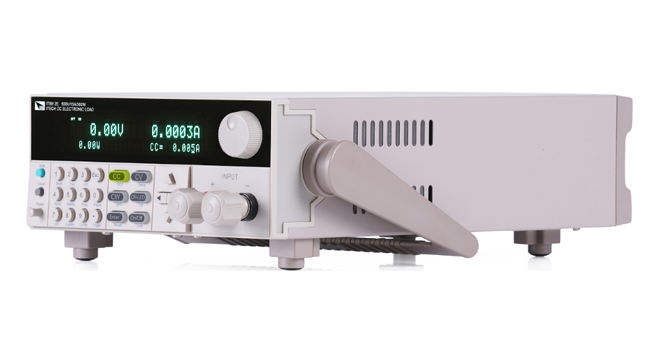

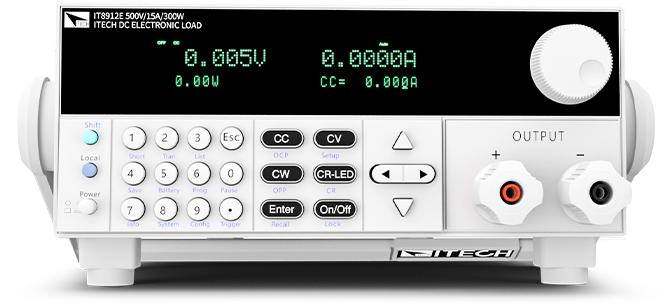

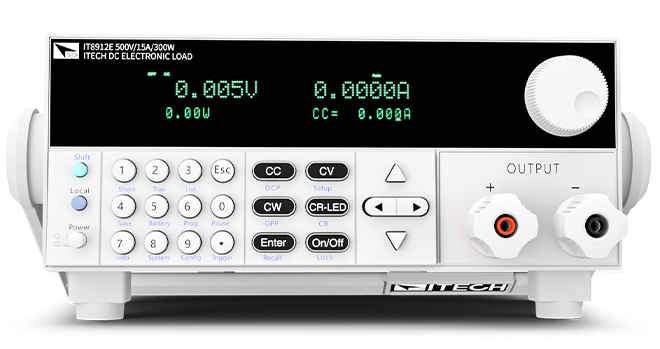

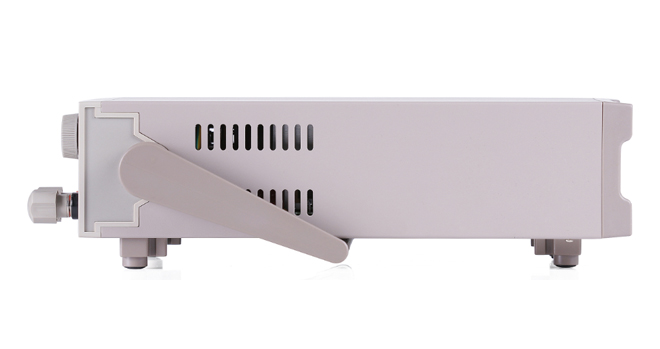

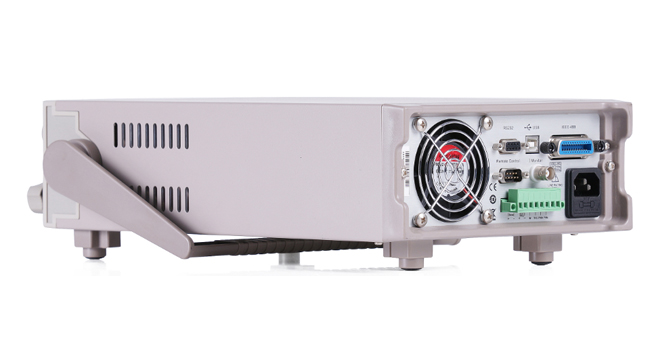

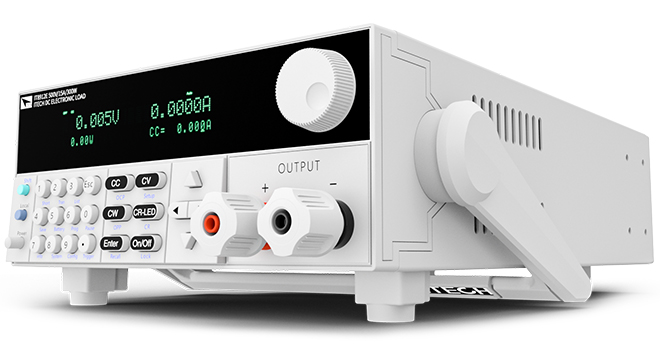

IT8912E LED Test Programmable DC Electronic Load

IT8900 series high accuracy LED specific testing electronic loads can simulate the real output of LED lights with different characteristics.Their specific circuit can realize CR-LED mode, adjustable frequency, duty ratio PWM dimming output port (frequency: 20Hz-2KHz), I-pp/I-max measurement function can test current ripple and start up surge current of LED constant flow source. Voltage and current testing speed can reach 50KHz. IT8900 series provides CR-LED / CC / CV + CC / CR /CW and other working modes, built-in USB / RS232 / GPIB communication interface. Widely used in LED driver power dimming test.




  • Product catalog
  • Product video
    Operational video
  • Related technical articles
  • User's Manual
Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
IT8912E
500V
15A
300W
10mV/0.1mA
±(0.05%+0.05%FS)
USB/RS232/GPIB
½ 2U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

Feature

 Up to 20KHz CC dynamic mode
♦ Voltage / current measurement speed up to 50KHz
 Various working modes for choice. CR-LED/CC/CV+CC/CR/CW etc.
 Unique CR-LED mode, providing the perfect PWM-LED Driver test solution
 Easy programmable parameter setting,applicable for simulating LED lights with different characteristics
♦ Automatically determine whether the test results beyond the set specifications according to high / low limit specifications  of the test parameters
 Adjustable frequency,duty ratio PWM dimming output port
 I-pp/I-max measurement function can test current ripple and start up surge current of LED constant flow source

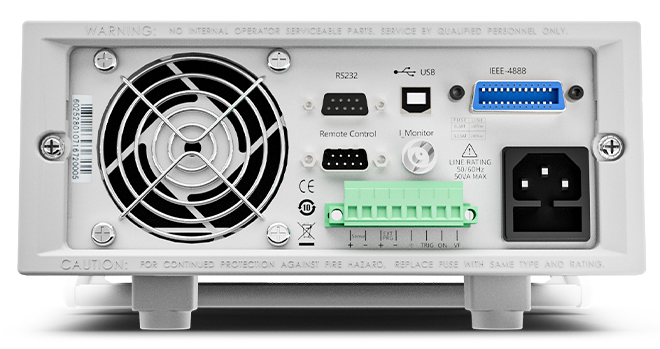

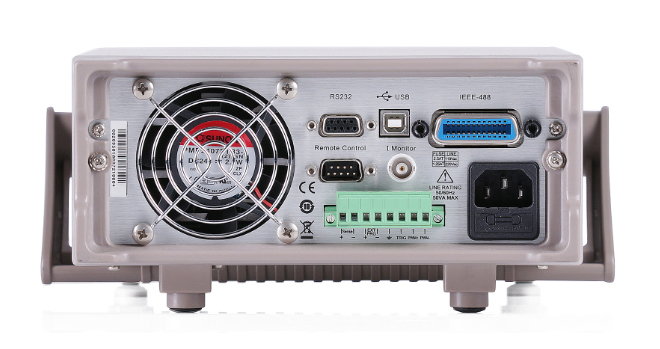

 Built-in USB/RS232/GPIB




Functions and Advantages

CR-LED mode

The unique CR-LED mode developed by IT8900 series is especially applicable for LED driver test.The user only needs to set the operating voltage,current and coefficient of LED driver to obtain real output parameter of LED driver.Different from universal electronic load,this mode of IT8900 series adopts pure hardware circuit design without software operation by MCU module,thus increasing the speed and stability of CR mode control circuit,solving voltage and current jitter during LED  driver test,increasing frequency width and helping realize PWM dimming.

DC Electronic Load


Options & Accessories
  • USB
    For USB port communication
  • CD (accessory)
    With user manual and communica...
  • AC power cord (accessory)
    AC power cord (accessory)

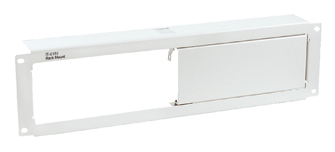

  • IT-E151 (Optional)
    19'' Rack mount kit
  • IT-E151A (Optional)
    19'' Rack mount kit
  • IT-E30312-YY (Optional)
    30A/1.2m/Y terminal, a pair of...
  • IT-E30320-YY (Optional)
    30A/2m/Y terminal, a pair of r...
