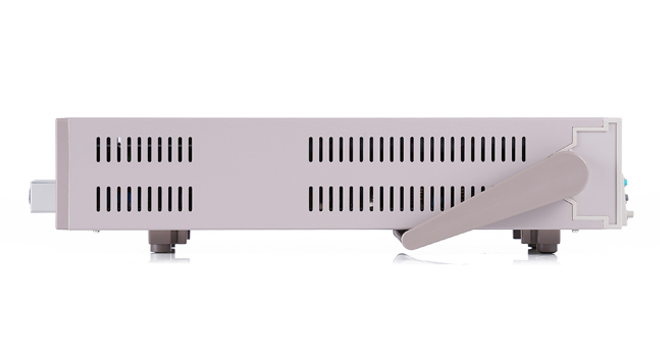

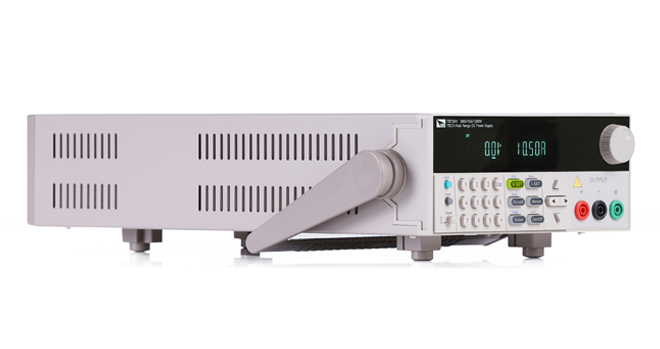

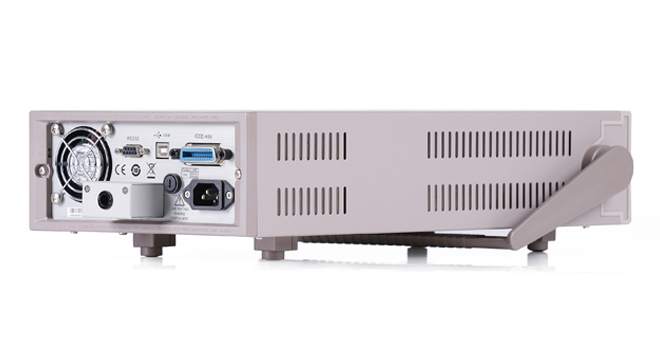

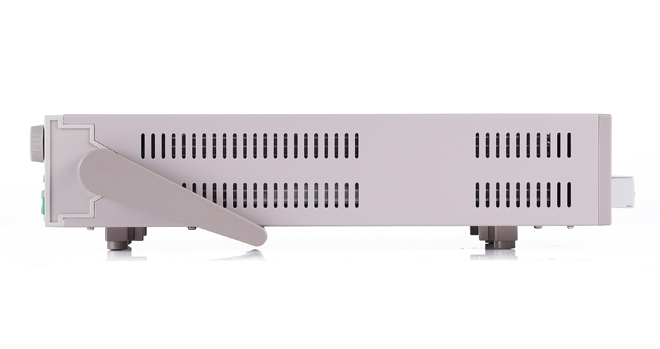

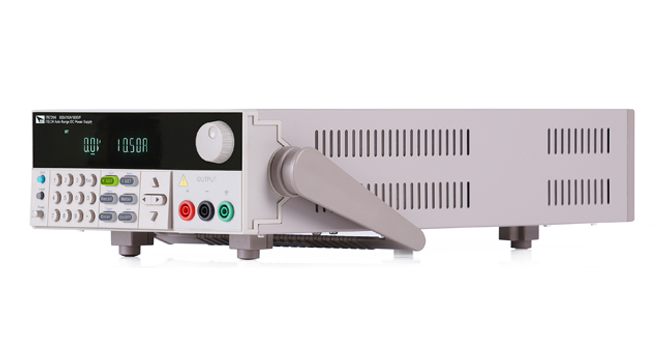

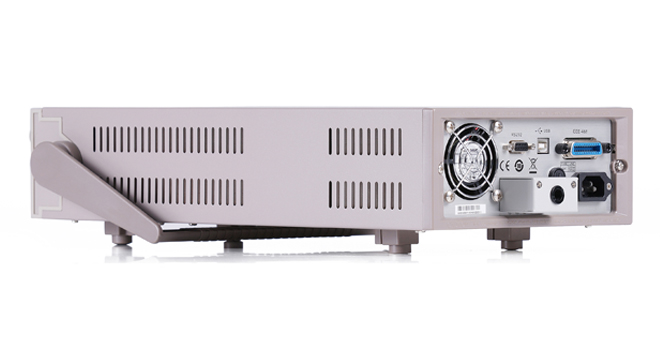

IT6700H Series High Voltage DC Power Supply

IT6700H series high-voltage DC power supplies is with maximum output power 3000W, adjustable voltage 0-1200V and current 0-10A, IT6700H series have desktop and shelves installation function, easy to operate. IT6700H series provide list mode, built-in RS232 / USB / GPIB communication interface, rich SCPI instructions facilitate the formation of a variety of intelligent test platforms. IT6700H can accurately describe the battery charge and discharge process, widely used in battery fluctuation simulation test, battery charger, high voltage ultra high speed diode, electrolytic capacitor, electromechanical control field and ATE test system, etc., which need to use high voltage and low current DC power supply.

  • Product catalog
  • Product video
    Operational video
  • Related technical articles
  • User's Manual
Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
IT6722
80V
20A
400W
10 mV/10 mA
≤0.01%+10mV/ ≤0.1%+10mA
RS232/USB/GPIB
½ 2U
inquiry
IT6722A
80V
20A
400W
10 mV/10 mA
≤0.01%+10mV/ ≤0.1%+10mA
RS232/USB
½ 2U
inquiry
IT6723
80V
40A
850W
10 mV/10 mA
≤0.03%+20mV/ ≤0.1%+40mA
RS232/USB/GPIB
½ 2U
inquiry
IT6723B
150V
20A
850W
100 mV/10 mA
≤0.03%+100mV/ ≤0.1%+20mA
RS232/USB/GPIB
½ 2U
inquiry
IT6723C
32V
110A
850W
10 mV/10 mA
≤0.03%+10mV/ ≤0.1%+60mA
RS232/USB/GPIB
½ 2U
inquiry
IT6723G
600V
5A
850W
100 mV/10 mA
≤0.03%+200mV/ ≤0.1%+20mA
RS232/USB/GPIB
½ 2U
inquiry
IT6723H
300V
10A
850W
100 mV/10 mA
≤0.03%+200mV/ ≤0.1%+20mA
RS232/USB/GPIB
½ 2U
inquiry
IT6724
80V
40A
1500W
10 mV/10 mA
≤0.03%+20mV/ ≤0.1%+40mA
RS232/USB/GPIB
½ 2U
inquiry
IT6724B
150V
20A
1500W
100 mV/10 mA
≤0.02%+100mV/ ≤0.03%+20mA
RS232/USB/GPIB
½ 2U
inquiry
IT6724C
32V
110A
1500W
10 mV/10 mA
≤0.03%+10mV/ ≤0.1%+60mA
RS232/USB/GPIB
½ 2U
inquiry
IT6724G
600V
5A
1500W
100 mV/10 mA
≤0.03%+200mV/ ≤0.1%+20mA
RS232/USB/GPIB
½ 2U
inquiry

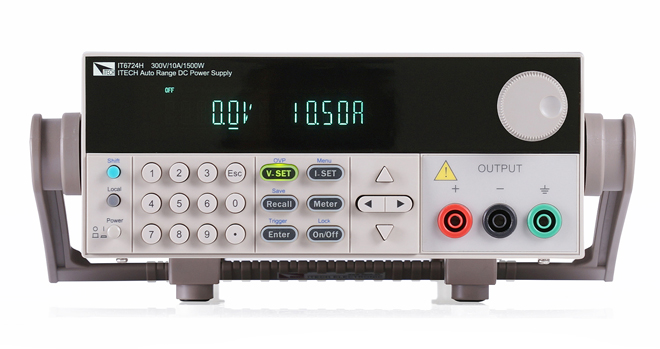

IT6724H
300V
10A
1500W
100 mV/10 mA
≤0.03%+200mV/ ≤0.1%+20mA
RS232/USB/GPIB
½ 2U
inquiry
IT6726B
160V
40A
3000W
100 mV/10 mA
≤0.03%+200mV/ ≤0.1%+40mA
RS232/USB/GPIB
2U
inquiry
IT6726C
32V
220A
3000W
10 mV/10 mA
≤0.03%+30mV/ ≤0.2%+100mA
RS232/USB/GPIB
2U
inquiry
IT6726G
600V
10A
3000W
100 mV/10 mA
≤0.03%+200mV/ ≤0.1%+20mA
RS232/USB/GPIB
2U
inquiry
IT6726V
1200V
5A
3000W
100 mV/10 mA
≤0.04%+400mV/ ≤0.1%+20mA
RS232/USB/GPIB
2U
inquiry
IT6726H
300V
20A
3000W
100 mV/10 mA
≤0.03%+200mV/ ≤0.1%+30mA
RS232/USB/GPIB
2U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

Voltage up to 1200V
 VFD display
♦ Various models for high voltage or high current are Optional
♦ Output switch ON/OFF control
♦ Safety terminal
♦ List mode, editable waveforms of voltage and current
♦ Remote sense

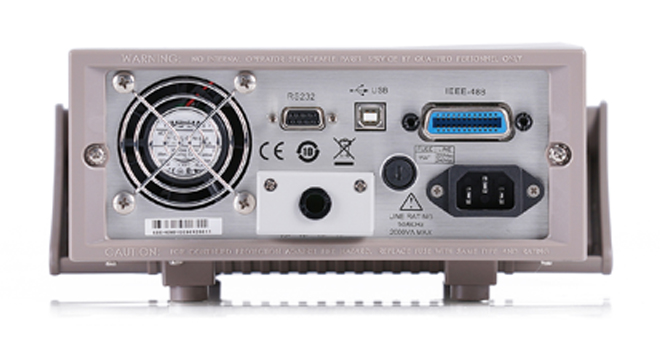

♦ Built-in RS232/USB/GPIB *1

*1:IT6722A is without GPIB interface


Functions and Advantages

Battery fluctuation simulation test
Battery charging needs high-precision voltage and stable current output to simulate the battery charge and discharge process. IT6700H series can accurately describes the battery charge and discharge process, which is applied in areas need high voltage and low flow direct current, such as battery fluctuation simulation tests, battery chargers, high voltage ultra high speed diodes, electrolytic capacitors, electromechanical control, and ATE test systems, etc.


Widely programmable range,higher  voltage                                                                 Power range 850W~3000W,Maximum output voltage 1200V







Options & Accessories
  • CD (accessory)
    With user manual and communica...
  • USB
    For USB port communication
  • AC power cord (accessory)
    AC power cord (accessory)
  • IT-E151A (Optional)
    19'' Rack mount kit
  • IT-E151 (Optional)
    19'' Rack mount kit
  • IT-E30110-AB (Optional)
    10A/1m/Alligator clip - Banana...
  • IT-E30110-BB (Optional)
    10A/1m/Banana plug - Banana pl...
  • IT-E30110-BY (Optional)
    10A/1m/Banana plug - Y termina...
  • IT-E30312-YY (Optional)
    30A/1.2m/Y terminal, a pair of...
  • IT-E30320-YY (Optional)
    30A/2m/Y terminal, a pair of r...
  • IT-E30615-OO (Optional)
    60A/1.5m/round terminal, a pai...
  • IT-E31220-OO (Optional)
    120A/2m/round terminal, a pair...
  • IT-E31220-OO (Optional)
    120A/2m/round terminal, a pair...
  • IT-E32420-OO (Optional)
    240A/2m/round terminal, a pair...
  • IT-E32410-OO (Optional)
    240A/1m/round terminal, a pair...
