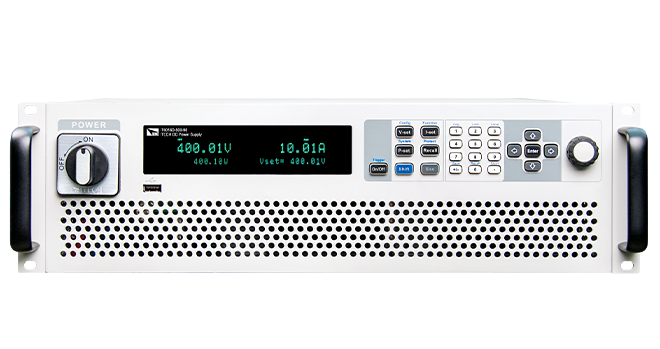

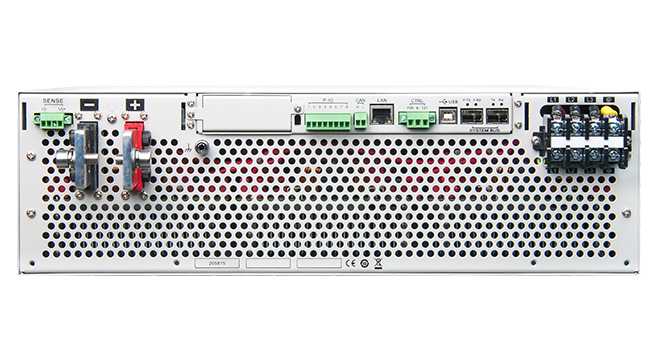

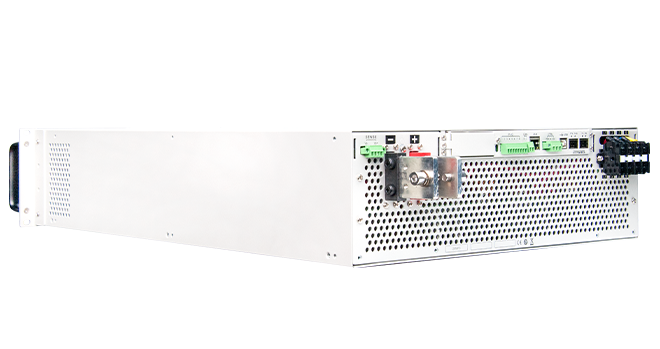

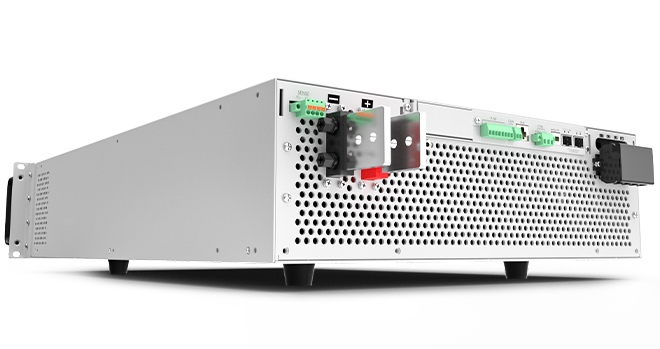

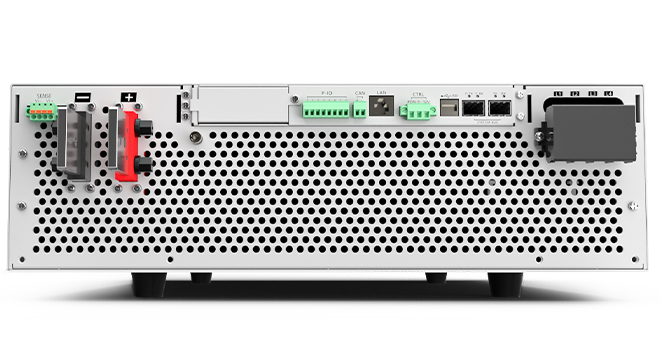

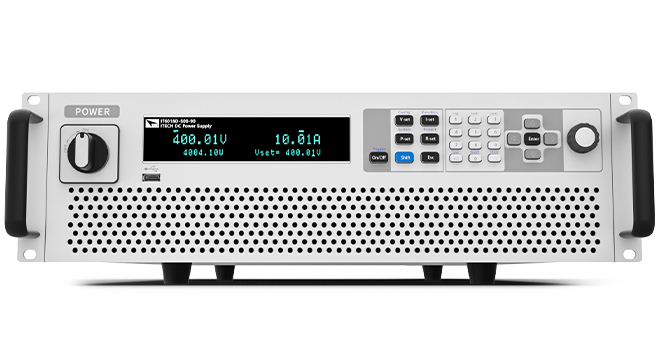

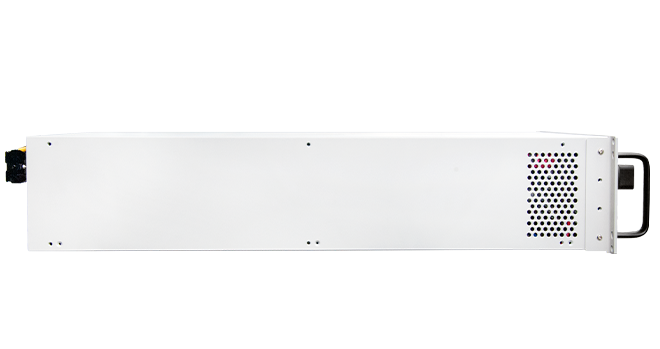

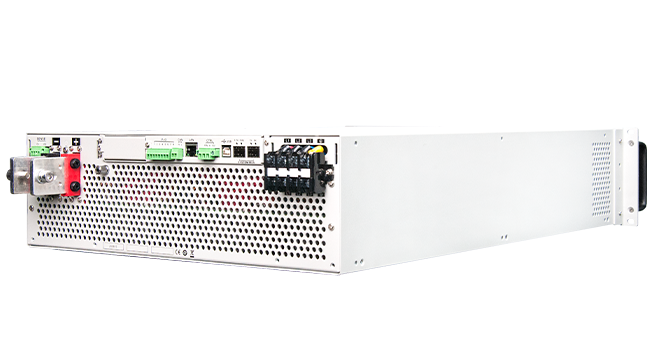

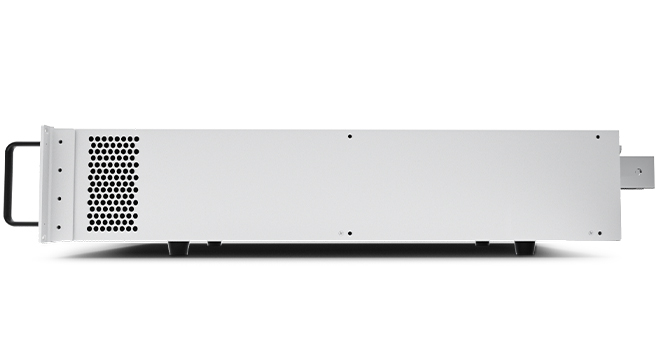

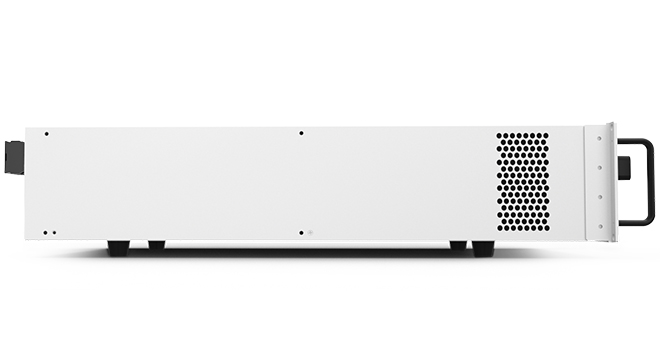

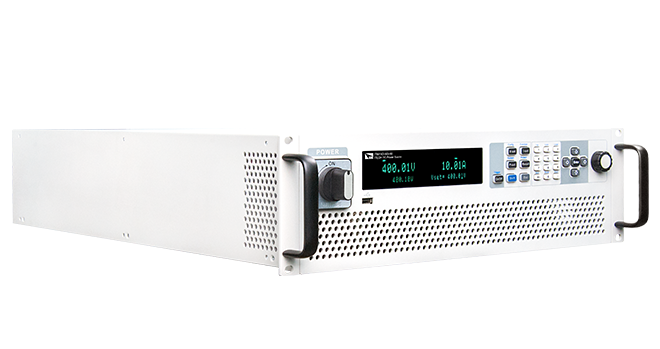

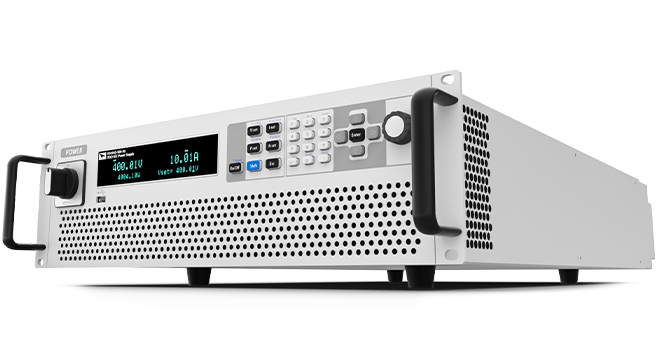

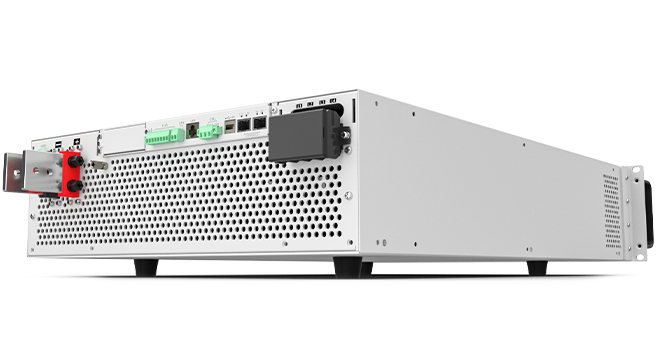

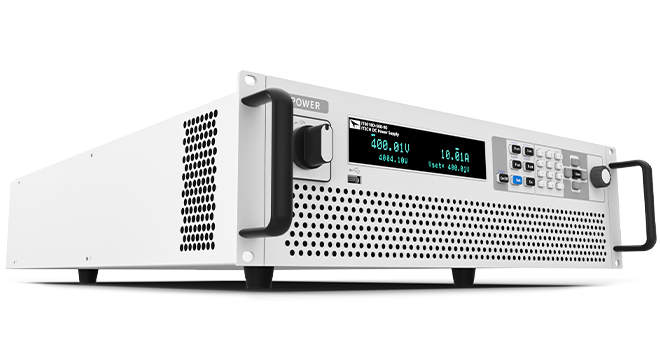

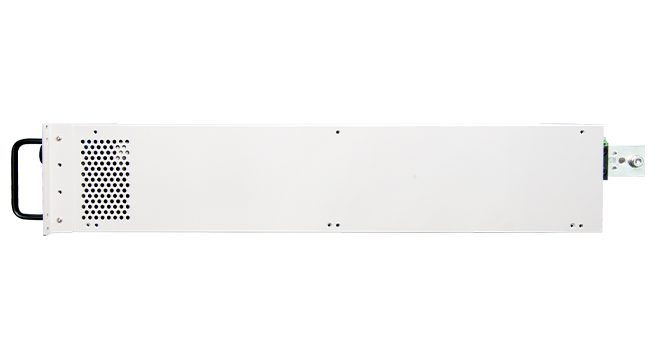

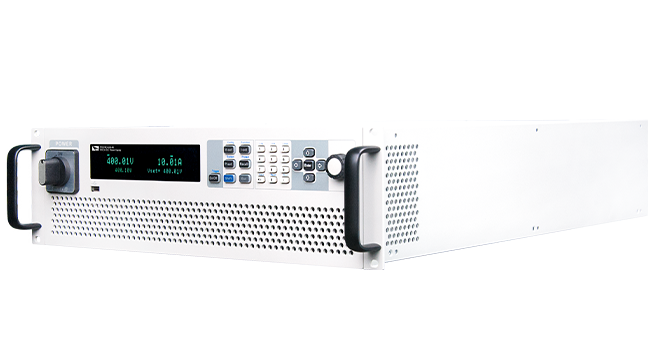

IT6000D Series High Power Programmable DC Power Supply

IT6000D, single channel output programmable DC power supply, is applicable in laboratories and automatic test system to provide high-power and stable DC supply. The feature of autoranging output enables a wide range of voltage and current combinations at full power, unprecedentedly flexible. IT6000D Series has wide range of applications and its single unit provides power range of 6kW to 144kW, current up to 2040A, as well as its voltage up to 2250V. Besides, IT6000D provides multi built-in communication interfaces to simplify and accelerate the testing development. The compact 3U design saves rack space. Multi units of the same model can be paralleled easily to have higher power and the maximum power can reach up to 1.152 MW.


  • Product catalog
  • Product video
    Operational video
  • Related technical articles
  • User's Manual
Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
IT6054D-2250-60
2250V
60A
54kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6072D-2250-80
2250V
80A
72kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6072D-1500-160
1500V
160A
72kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6090D-2250-100
2250V
100A
90kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6090D-1500-200
1500V
200A
90kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6108D-1500-240
1500V
240A
108kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6108D-2250-120
2250V
120A
108kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6144D-1500-320
1500V
320A
144kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6126D-1500-280
1500V
280A
126kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6144D-2250-160
2250V
160A
144kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6126D-2250-140
2250V
140A
126kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6075D-80-1800
80V
1800A
75 kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6030D-80-720
80V
720A
30 kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
6U
inquiry
IT6045D-80-1080
80V
1080A
45 kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6015D-80-360
80V
360A
15 kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6060D-80-1440
80V
1440A
60 kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6010D-80-240
80V
240A
10 kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6005D-80-120
80V
120A
5 kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6012D-500-60
500V
60A
12 kW
0.01V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6006D-500-30
500V
30A
6 kW
0.01V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6036D-500-180
500V
180A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
6U
inquiry
IT6018D-500-90
500V
90A
18 kW
0.01V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6072D-500-360
500V
360A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6054D-500-270
500V
270A
54kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6108D-500-540
500V
540A
108kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6090D-500-450
500V
450A
90kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6126D-500-630
500V
630A
126kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6006D-500-40
500V
40A
6 kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6144D-500-720
500V
720A
144kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6012D-500-80
500V
80A
12 kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6006D-800-20
800V
20A
6 kW
0.01V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6012D-800-40
800V
40A
12 kW
0.01V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6018D-800-60
800V
60A
18 kW
0.01V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6018D-500-120
500V
120A
18 kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6036D-500-240
500V
240A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
6U
inquiry
IT6054D-500-360
500V
360A
54kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6036D-800-120
800V
120A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
6U
inquiry
IT6054D-800-180
800V
180A
54kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6072D-800-240
800V
240A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6072D-500-480
500V
480A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6090D-800-300
800V
300A
90kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6090D-500-600
500V
600A
90kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6108D-800-360
800V
360A
108kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6108D-500-720
500V
720A
108kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6126D-500-840
500V
840A
126kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6144D-500-960
500V
960A
144kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6126D-800-420
800V
420A
126kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6144D-800-480
800V
480A
144kW
0.01V/0.01A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6018D-1500-30
1500V
30A
18 kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6054D-1500-90
1500V
90A
54kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6036D-1500-60
1500V
60A
36kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
6U
inquiry
IT6090D-1500-150
1500V
150A
90kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6072D-1500-120
1500V
120A
72kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
IT6126D-1500-210
1500V
210A
126kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6108D-1500-180
1500V
180A
108kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6144D-1500-240
1500V
240A
144kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
27U
inquiry
IT6018D-1500-40
1500V
40A
18kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6018D-2250-20
2250V
20A
18 kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
3U
inquiry
IT6036D-2250-40
2250V
40A
36kW
0.1V/0.001A
≤0.02%+0.02%FS/ ≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
6U
inquiry
IT6036D-1500-80
1500V
80A
36kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
6U
inquiry
IT6054D-1500-120
1500V
120A
54kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/Digital I/O
15U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

♦ Single unit provides voltage of 80V-2250V, current of 30-2040A, power of 6kW -144kW, and 73 standard models are available
♦ Master-slave parallel, the power can be paralleled up to 1.152 MW
♦ Current is up to 2040A by paralleling
♦ The adoption of high frequency switching structure supports the automatic switching between CV and CC
♦ Provides various protections: OVP, OCP, OPP, OTP, protection of power failure and UVP
♦ Supports data recording function, can continuously record the Max, Min, Average values of output voltage and current, and it can automatically execute data by sequence
♦ Power efficiency up to 95%
♦ High power density of 18kW in 3U
♦ Supports external data recording function, internal buffing, and the PC will periodically read data from the power supply

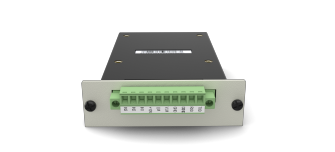

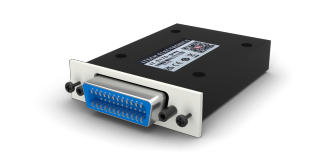

♦ Built-in communication interfaces of USB/CAN/LAN/Digital IO, and optional interfaces of GPIB, Analog and RS232
♦ Supports SCPI protocol, built-in Web server



Applications





Functions and Advantages

3U/18kW High power density

High power density of 18kW in 3U size, IT6000D series DC power supply has good capability of low output ripple and noise, power grid disturbance adjustment, load regulation and fast transient response. Standalone unit with voltage range of 80V-2250V, current of 30A-510A. Its wide range allows the devices to be used in every testing step of R&D, products testing and production.




Output features


Compare with the conventional design, the IT6000D has much better output range to satisfy various requirement. Featured as its wide auto range output, it can cover more applications. One standalone unit equals to 3-5 traditional power supply and 3units equals to 10-13 traditional power supply. This makes it easier to build a system and save space at the same time.


Options & Accessories

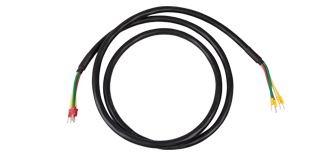

  • AC power cord (accessory)
    AC power cord (accessory)
  • USB
    For USB port communication
  • CD (accessory)
    With user manual and communica...
  • IT-E31220-OO (Optional)
    120A/2m/round terminal, a pair...
  • IT-E30615-OO (Optional)
    60A/1.5m/round terminal, a pai...
  • IT-E32420-OO (Optional)
    240A/2m/round terminal, a pair...
  • IT-E32410-OO (Optional)
    240A/1m/round terminal, a pair...
  • IT-E33620-OO (Optional)
    360A/2m/round terminal, a pair...
  • IT-E30312-YY (Optional)
    30A/1.2m/Y terminal, a pair of...
  • IT-E30320-YY (Optional)
    30A/2m/Y terminal, a pair of r...
