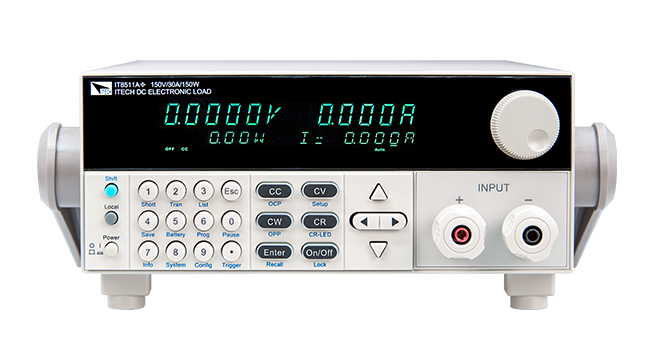

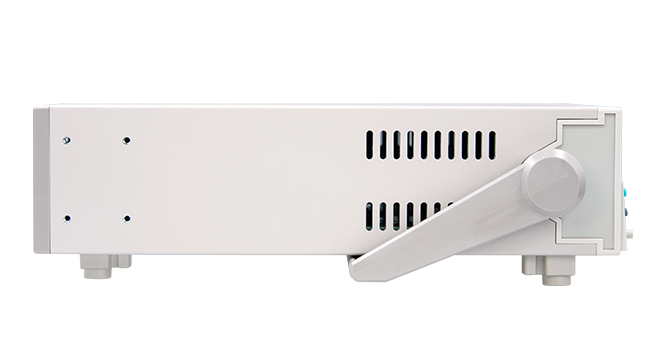

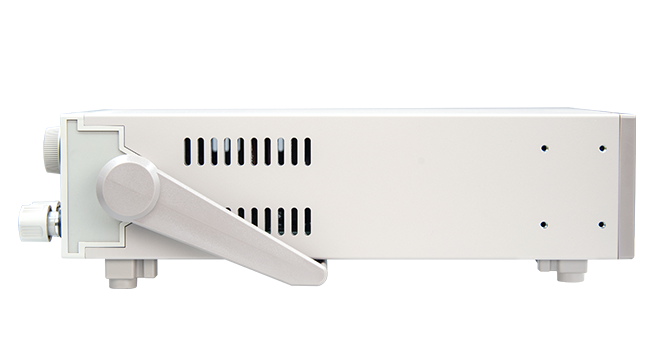

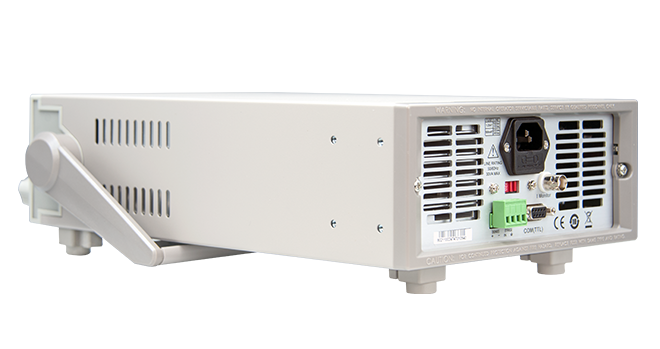

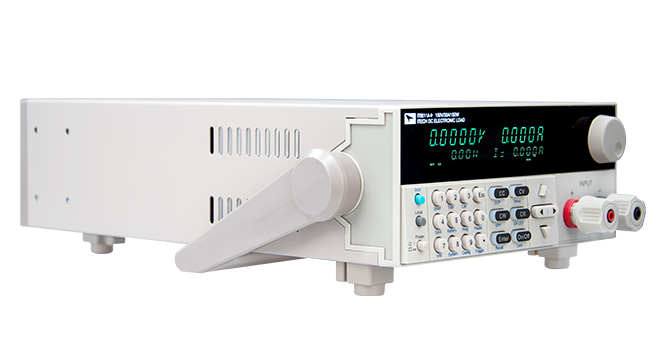

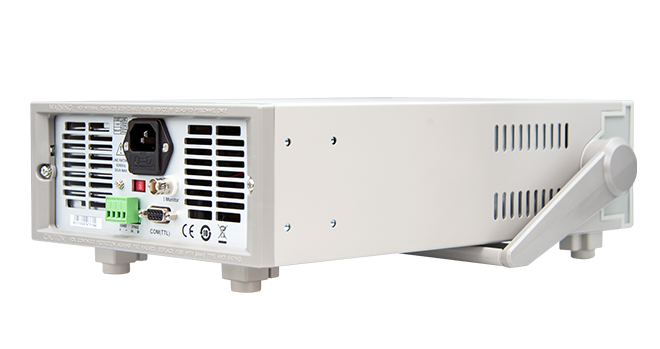

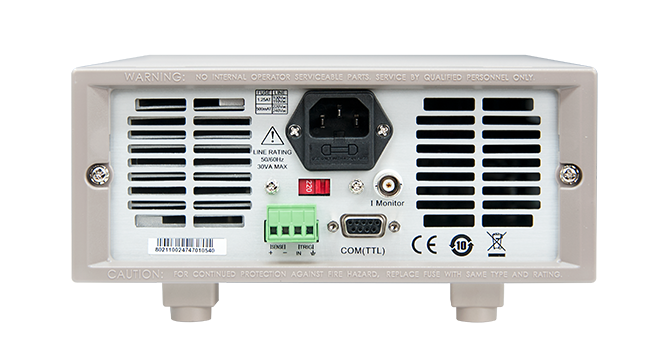

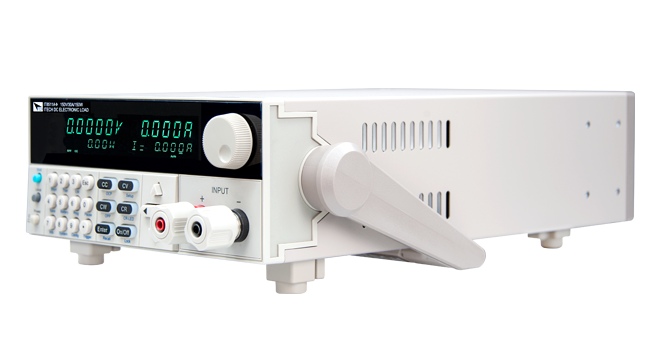

IT8500+ Programmable DC Electronic Load

IT8500+series (150W~3000W) single-channel programmable DC electronic loads are designed for middle & high-end applications.They can be offered as multiple solutions according to customer's design and testing requirements.The user can perform online voltage measurements and adjustments or simulate short circuit test using the simple keypad on the front panel. IT8500+ series DC loads are a versatile instrument for static and dynamic testing of power supplies,batteries,DC - DC converters,battery chargers,provides user the best testing solution.


  • Product catalog
  • Product video
    Operational video
  • Related technical articles
  • User's Manual
Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
IT8511A+
150V
30A
150W
0.1mV/1mA
±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/RS485
½ 2U
inquiry
IT8511B+
500V
10A
150W
1mV/0.1mA
±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/RS485
½ 2U
inquiry
IT8512A+
150V
30A
300W
1mV/0.1mA
±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/RS485
½ 2U
inquiry
IT8512B+
500V
15A
300W
1mV/0.1mA
±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/RS485
½ 2U
inquiry
IT8512C+
120V
60A
300W
1mV/0.1mA
±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/RS485
½ 2U
inquiry
IT8512H+
800V
5A
300W
1mV/0.1mA
±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/RS485
½ 2U
inquiry
IT8513A+
150V
60A
400W
0.1mV/1mA
±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/RS485
½ 2U
inquiry
IT8513C+
120V
120A
600W
0.1mV/1mA
±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/RS485
½ 2U
inquiry
IT8514B+
500V
60A
1500W
0.1mV/1mA
±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/RS485
2U
inquiry
IT8514C+
120V
240A
1500W
1mV/0.1mA
±(0.025%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/RS485
2U
inquiry
IT8516C+
120V
240A
3000W
0.1mV/1mA
±(0.025%+0.025%FS)/ ±(0.1%+0.1%FS)
RS232/USB/RS485
4U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

Features

♦ Four operating modes: CV,CC,CR,CP
♦ Battery test function, automatic test function, OPP test, OCP test function and CR-LED function.
♦ Dynamic mode up to 10KHz
♦ Voltage measurement resolution up to 0.1mV / 0.1mA
♦ Remote sense
♦ Short circuit function
♦ Current monitoring function
♦ Power-off memory function
♦ 100 groups memory capacity
♦ Optional USB / RS232 / RS485 interface

* IT8514B+, IT8514C+ and IT8516C+ have built-in RS232 and USB interfaces.


Functions and Advantages

Dynamic test function

The dynamic test operation allows the electronic load to be switched between the two setting parameters according to the setting rules. This function is used to test the dynamic characteristics of the power supply.

♦ Continuous mode: Under continuous mode, When the dynamic test operation is enabled, load will be continuously switched between the A value and the B value .


♦ Pulse mode: Under pulse mode, when the dynamic test operation is enabled, each receive a trigger signal, the load will switch to the B value, after maintaining the B pulse width time, switch back to the A value.


 Toggle mode: In the trigger mode, when the dynamic test operation is enabled, each time a trigger signal is received, the load is switched between the A value and the B value.


Battery discharge test function

IT8500 + series electronic load can use constant current mode for battery discharge test. After the discharge test mode is selected, the test mode termination condition "switch off voltage value", "switch off capacity value" and "discharge time" can be set. When any of the three conditions is satisfied, the discharge is stopped and the electronic load is automatically switched is OFF state. Users can observe the battery voltage, time and battery discharge capacity during the test process.
