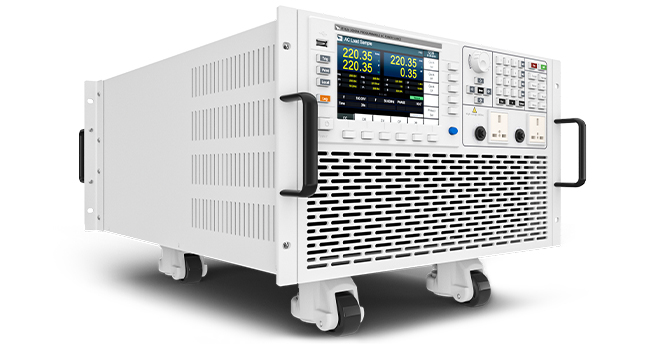

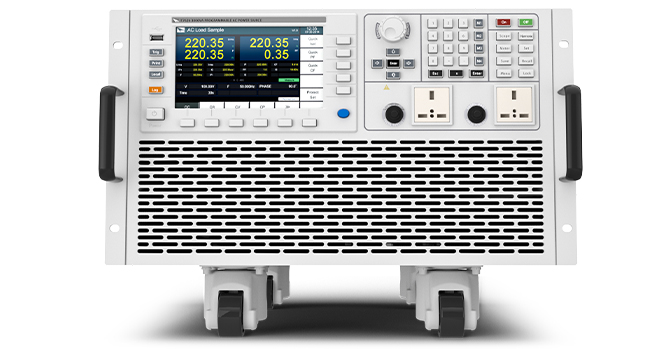

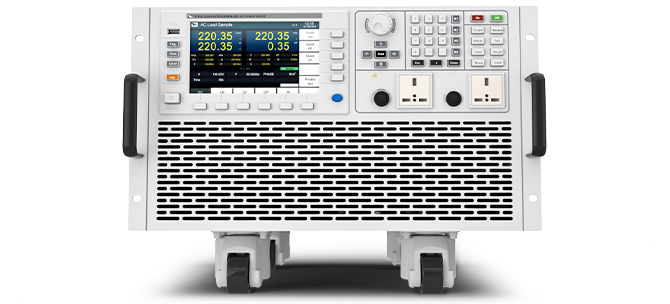

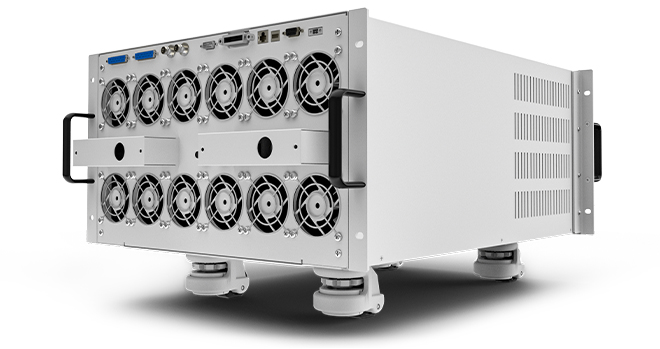

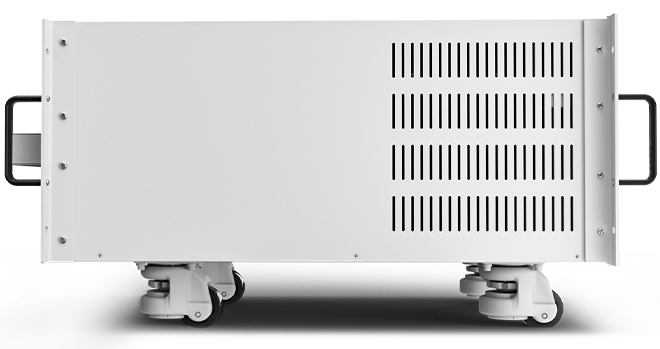

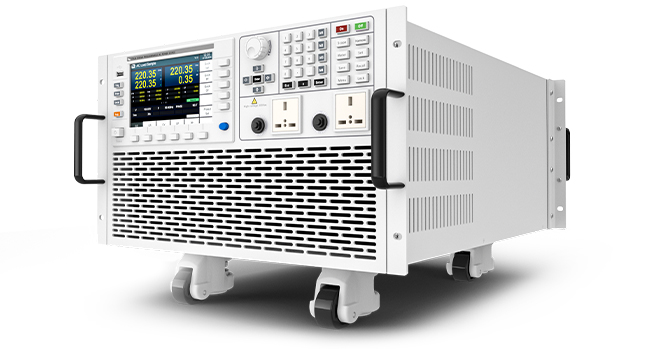

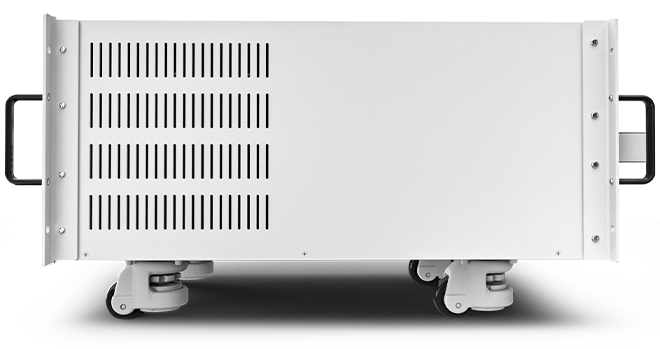

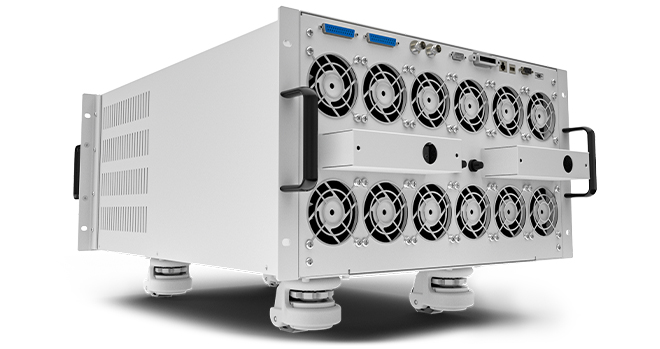

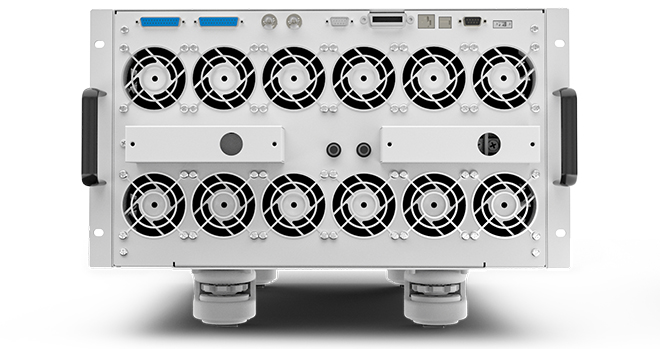

IT7600 High Performance Programmable AC Power Supply

IT7600series high performance programmable AC power supplies, adopt advanced digital signal processing technology, with frequency up to 10-5000 Hz, built-inall-round power meter and large-screen oscilloscope function. Power up to 54kVA and support master-slave parallel, which can provide high-capacitysingle-phase or three-phase AC output. Some single-phase or three-phase products can be easily upgraded toAC600V (three-phase star connection downline voltage up to 1000V) output. IT7600 has built-in arbitrary waveform generator to simulate the harmonic and avariety of arbitrary waveforms output; also has strong exchange measurement and analysis functions. IT7600 can be widely used in many areas, such as newenergy, home appliances, power electronics, avionics, military, the development and application of IEC standard test and so on.




  • Product catalog
  • Product video
    Operational video
    Product description
  • Related technical articles
  • User's Manual
Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
IT7622
150/300 V
6/3 Arms
750 VA,1φ
10mV/10mA
±(0.2%+0.2%FS)
USB/RS232/LAN/GPIB/CAN
3U
inquiry
IT7624
150/300 V
12/6 Arms
1500 VA,1φ
10mA/10mV
±(0.2%+0.2%FS)
RS232/USB/RS485/CAN/LAN
3U
inquiry
IT7625
150/300 V
36/18 Arms(1φ ), 12/6 Arms(3φ)
4500 VA,1φ or 3φ
10mV/10mA
±(0.2%+0.2%FS)
USB/RS232/LAN/GPIB/CAN
15U
inquiry
IT7626
150/300 V
24/12 Arms
3000 VA,1φ
10mV/10mA
±(0.2%+0.2%FS)
USB/RS232/LAN/GPIB/CAN
6U
inquiry
IT7627
150/300 V
72/36 Arms(1φ ) 24/12 Arms(3φ)
9000 VA,1φ or 3φ
10mV/10mA
±(0.2%+0.2%FS)
USB/RS232/LAN/GPIB/CAN
24U
inquiry
IT7628
150/300 V
144/72 Arms(1φ ), 48/24 Arms(3φ)
18 kVA,1φ or 3φ
10mV/10mA
±(0.2%+0.2%FS)
USB/RS232/LAN/GPIB/CAN
37U
inquiry
IT7628L
150/300 V
36/18 Arms
13.5 kVA,3φ
10mV/10mA
±(0.2%+0.2%FS)
USB/RS232/LAN/GPIB/CAN
37U
inquiry
IT7630
150/300 V
72/36 Arms
27 kVA,3φ
10mV/10mA
±(0.2%+0.2%FS)
USB/RS232/LAN/GPIB/CAN
24U×3
inquiry
IT7632
150/300 V
96/48 Arms
36 kVA,3φ
10mV/10mA
±(0.2%+0.2%FS)
USB/RS232/LAN/GPIB/CAN
24u×3
inquiry
IT7634
150/300 V
120/60 Arms
45 kVA,3φ
10mV/10mA
±(0.2%+0.2%FS)
USB/RS232/LAN/GPIB/CAN
37u×3
inquiry
IT7636
150/300 V
144/72 Arms
54 kVA,3φ
10mV/10mA
±(0.2%+0.2%FS)
USB/RS232/LAN/GPIB/CAN
37U×3
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

7” DSO function, which can display real-time waveforms of voltage and current under the single unit or parallel mode
♦ Built-in powerful single-phase or three-phase AC power meter
Output frequency up to 10-5000 Hz, output variable rate of voltage or frequency is adjustable
♦ Maximum power up to 54 kVA
Voltage up to 300 V / 600 V *1
Realize AC, DC, AC+DC output modes, AC+DC can realize simulating distortion of DC Voltage *4
Simulate arbitrary waveform output, support CSV format to import waveform
Built-in various waveform database
Strong master-slave paralleling makes multi-module output equalized current synchronously
Support single / three-phase output, and can simulate unbalanced three phase output *2
Strong harmonic simulation capability, up to 50th harmonic simulation *3
♦ Strong harmonic analysis function, which can measure up to 50th voltage and current harmonic *3
List mode can simulate civil use AC network, achieve simulation of instantaneous power interruption
♦ The output waveform start / stop phase angle can be set
Support remote sense compensation function, which can improve measurement accuracy
Relay Ctrl output function, which can achieve electrical isolation between DUT and the source
Sweep function, which can test the efficiency of switching power supply andcatch the voltage and frequency when reaching maximum power point
OTP, OCP (Including peak and rms values), OPP
Built-in USB / RS232 / LAN / GPIB / CAN communication Interface
USB on the front panel can achieve importing and exporting file functions and data storage function
*1 Up to 600V with option by IT-E-7600A
*2 IT7622 / 7624 / 7626 can parallel multiple units to achieve single / three-phase output. IT7627 / 7628 can achieve single / three-phase switching output.
*3 10 Hz-500 Hz.
*4 (IT7628L, IT7630, IT7632, IT7634, IT7636) only support AC mode


Applications


Functions and Advantages

7” DSO function

Display real-time waveforms of voltage and current under the stand-alone or parallel mode

IT7600 series high-power AC / DC power supply provide a powerful oscilloscope function by the 7” large screen. Built-in high-speed sampling measurement design realizes the display of real-time voltage and current curves. When multi-units are paralleled, IT7600 can display the status of all paralleled units, instantaneous  analysis is available without an oscilloscope.




Output frequency up to10-5000 Hz

Output variable rate of voltage or frequency is adjustable

IT7600 series high-power AC / DC power supply output frequency is adjustable during 10-5000 Hz. IT7600 series have a wide range of applications, which not only
to meet the low-frequency demand for general commercial industry, but also can be used for high frequency aerospace and military application.

IT7600 series allows users to set their own output fluctuation rate of voltage or frequency, so that the voltage or frequency regularly reach the set value step by step. It is more accurate to verify the product operation scope and also can reduce surge current of DUT when starting up.


Achieve AC, DC, AC+DC output modes

AC+DC can achieve offset simulation of DC Voltage

IT7600 series high-power AC / DC power supply can achieve AC, DC, AC + DC output modes, not only provide pure AC / DC output, but also can provide AC + DC output mode to expand application and test DC bias components.


Strong master-slave paralleling function

Using power in more flexible way

The IT7600 AC / DC power supply models provide the strong (Master-Slave) parallel operation function, which enable users to extend the current / power output ability to save cost. During parallel connection operation, it only requires the setting on Master unit, and the slave unit will be controlled by the master unit automatically. This function greatly simplifies the paralleling operation. IT7600 series have built-in synchronous On / Off input and output signals, which ensures the synchronization and equalized current output on multi modules synchronously.

  IT7600 after paralleling of 3 sets, each unit will share the test current averagely


Support single / three-phase output

Simulate unbalanced three phase output
IT7600 series high performance programmable AC / DC power supply supports single / three-phase output and can achieve test applications for three-phase AC power supply. Users can achieve Y-type and Δ-type connections according to actual requirements.

 IT7627 / IT7628 Support one key to switch single / three-phase output through the panel or software, easy to operate.
 IT7622 / IT7624 / IT7626 can also achieve three-phase AC power test applications through multiple paralleling.
 IT7628L / IT7630 / IT7632 / IT7634 / IT7636 support three-phase output. When IT7600 series realize three-phase output, IT7600 can simulate unbalanced three-phase output, expanding the scope of application.

When IT7600 series realize three-phase output, IT7600 can simulate unbalanced three-phase output, expanding the scope of application.


Built-in abundant waveform database

Recall by menu and display the selected waveform on the LCD screen

IT7600 series high power AC / DC power supply provide built-in a variety of different types of waveforms, such as triangle wave, sine wave, surge at peak, trap wave, and other waveforms, the user can recall by menu and display the selected waveform on the LCD screen.


List mode

List mode can simulate civil use AC network, achieve simulation of instantaneous power interruption

IT7600 series high-power AC / DC power supply provide users a simple way to achieve the output parameters changing gradually or continuously through STEP mode and LIST mode. The amplitude of output voltage, frequency, phase, waveform and other parameters can also be output by controlling the internal trigger or external trigger of the instrument. Thus you can simulate a variety of power instantaneous power interruption, surge, ramp and other characteristics.


Support CSV file to import waveforms

Import a CSV file via the USB interface to generate a waveforms output

The user can edit the waveform output by the panel LIST function or can import a CSV file via the USB interface to generate waveform output. At the same time, IT7600 series provides external ± 10 V analog interface, users can choose separate AM and FM amplitude modulation to receive external signal source.


Strong harmonic analysis function

Voltage / current harmonic measurement

IT7600 high-power AC power supply is with powerful function in harmonic analysis, including harmonic measurements for voltage and current. For harmonic
measurements, when frequency is 10-500 Hz, IT7600 can test 50th; when it’s above 500 Hz, then 20th. In harmonic mode, it can do tests for U / I THD (Voltage / Current Total Harmonic Distortion) factors, as well as Phase tests. Besides, IT7600 can do multiple harmonic measurements, the results are displayed in list or histogram, so that the test results are more clear.


Strong harmonic simulation capability

Up to 50th harmonics
IT7600 series high-power AC / DC power supply has strong harmonic simulation capability, up to 50th harmonics. Within 10-500 Hz, IT7600 can measure 50th voltage and current harmonic. Exceed 500 Hz, IT7600 can test 20th voltage and current harmonic.


Options & Accessories
  • IT-E760
    IT7600 series boosting module
  • AC power cord (accessory)
    AC power cord (accessory)
  • USB
    For USB port communication
  • CD (accessory)
    With user manual and communica...
  • IT-E31220-OO (Optional)
    120A/2m/round terminal, a pair...
  • IT-E30615-OO (Optional)
    60A/1.5m/round terminal, a pai...
  • IT-E32420-OO (Optional)
    240A/2m/round terminal, a pair...
  • IT-E32410-OO (Optional)
    240A/1m/round terminal, a pair...
  • IT-E33620-OO (Optional)
    360A/2m/round terminal, a pair...
  • IT-E30110-AB (Optional)
    10A/1m/Alligator clip - Banana...
  • IT-E30110-BB (Optional)
    10A/1m/Banana plug - Banana pl...
  • IT-E30110-BY (Optional)
    10A/1m/Banana plug - Y termina...
  • IT-E30312-YY (Optional)
    30A/1.2m/Y terminal, a pair of...
  • IT-E30320-YY (Optional)
    30A/2m/Y terminal, a pair of r...
Database
