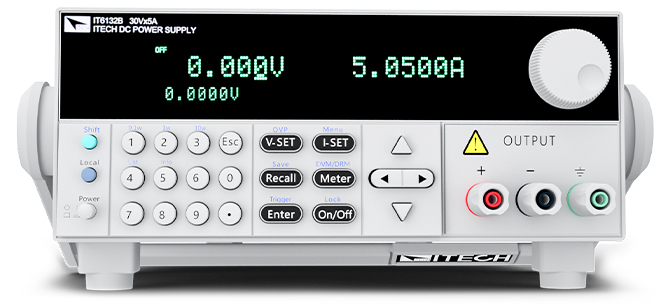

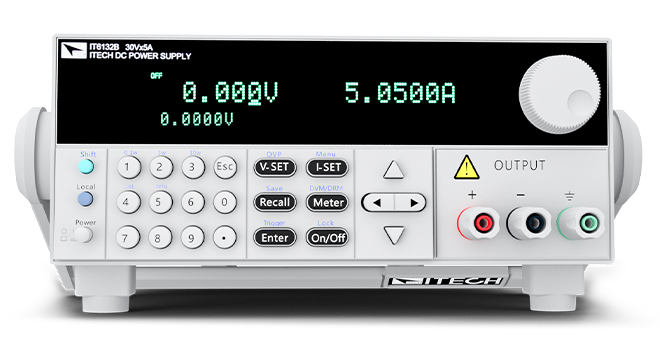

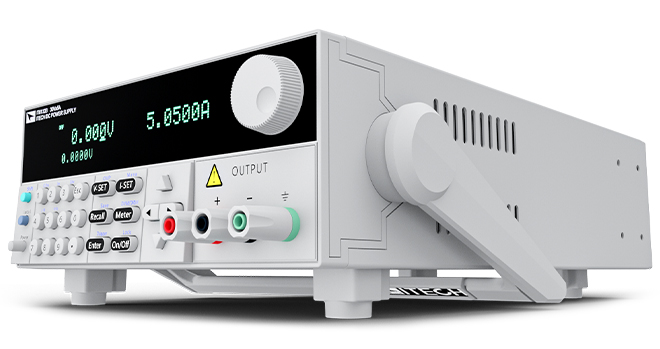

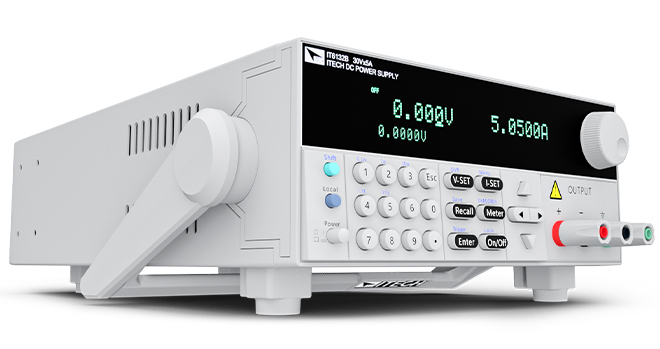

IT6100B Programmable DC Power Supply

IT6100B series (86 ~ 1200W) high speed high precision programmable DC power supply is withultra high voltage rising time, the fastestfull load up to 500us, resolution up to 0.1mV / 0.01mA, the latest output waveform priority mode allows rising waveform ofvoltage or current  is with high-speed and no overshoot, which is widely used inaerospace power modules and other high-precision test occasions. IT6100B hasbuilt-in standard USB / RS232 / GPIB communication interface and the panel supports List programming, which canprovide multi-purpose solutionaccording to customer design and testing demands, easy to use.


  • Product catalog
  • Product video
    Operational video
  • Related technical articles
  • User's Manual
Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
IT6121B
20V
5A
100W
0.1mV/0.01mA
±0.02%+3mV/ ±0.05%+2mA
RS232/USB/GPIB
½ 2U
inquiry
IT6122B
32V
3A
96W
0.1mV/0.01mA
±0.02%+3mV/ ±0.05%+2mA
RS232/USB/GPIB
½ 2U
inquiry
IT6123B
72V
1.2A
86.4W
0.1mV/0.01mA
±0.02%+5mV/ ±0.05%+1mA
RS232/USB/GPIB
½ 2U
inquiry
IT6132B
30V
5A
150W
0.1mV/0.01mA
±0.02%+3mV/ ±0.05%+2.5mA
RS232/USB/GPIB
½ 2U
inquiry
IT6133B
60V
2.5A
150W
0.1mV/0.01mA
±0.02%+5mV/ ±0.05%+1.5mA
RS232/USB/GPIB
½ 2U
inquiry
IT6162B
20V
50A
1000W
1mV/1mA
≤0.02%+2mV/ ≤0.05%+15mA
RS232/USB/GPIB
2U
inquiry
IT6164B
Range1:30V;Range2:60V;
Range1:40A;Range2:20A;
Range1:1200W;Range2:1200W;
1mV/1mA
≤0.02%+5mV/ ≤0.05%+15mA
RS232/USB/GPIB
2U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features
Output linear adjustment, high speed reliable, low noise
High accuracy and resolution
High voltage rising edge
Built-in 5½ digital voltmeter and Ohmmeter
Memory capacity: 100 groups
List mode
Timer function (0.01~60000S)
Remote sense interface to compensate line voltage
Built-in RS232/USB/GPIB interface and support SCPI protocol
Functions and Advantages

High voltage rise speed
Comparing with general high speed power supplies, IT6100B series power supplies reduce their ripple and noise to the lowest level.Their high voltage rise speed  (<20mS) suits for all high speed and precise testing occasions.



Digital voltage ohmmeter

IT6100B series has built-in precision digital voltage ohmmeterDigital ohmmeter: Provide four-wire method to measure resistance, measurement range: 0 ~ 1KΩ
Digital voltmeter: A 5½  voltmeter is provided to measure the external voltage, measurement range: 0 ~ 40V


Options & Accessories
  • CD (accessory)
    With user manual and communica...
  • USB
    For USB port communication
  • AC power cord (accessory)
    AC power cord (accessory)
  • IT-E151A (Optional)
    19'' Rack mount kit
  • IT-E151 (Optional)
    19'' Rack mount kit
  • IT-E30110-AB (Optional)
    10A/1m/Alligator clip - Banana...
  • IT-E30110-BB (Optional)
    10A/1m/Banana plug - Banana pl...
  • IT-E30110-BY (Optional)
    10A/1m/Banana plug - Y termina...
  • IT-E30312-YY (Optional)
    30A/1.2m/Y terminal, a pair of...
  • IT-E30320-YY (Optional)
    30A/2m/Y terminal, a pair of r...
  • IT-E30615-OO (Optional)
    60A/1.5m/round terminal, a pai...
