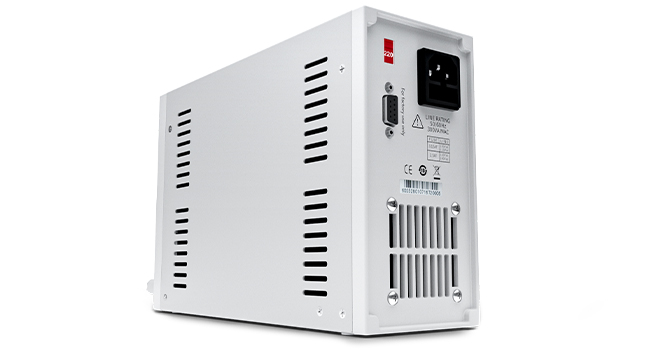

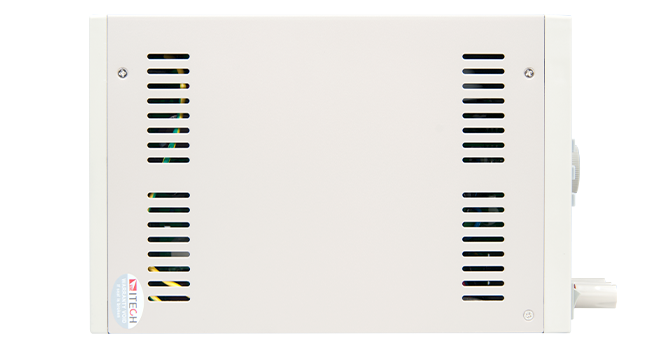

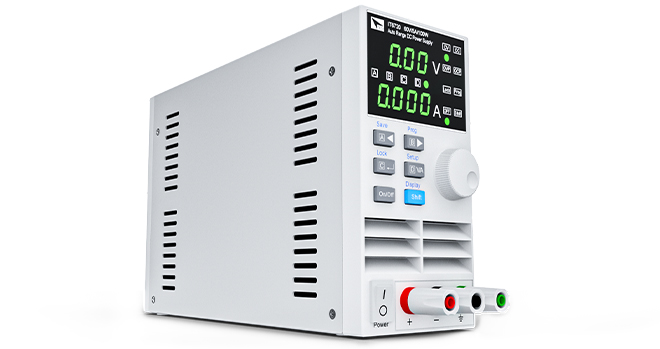

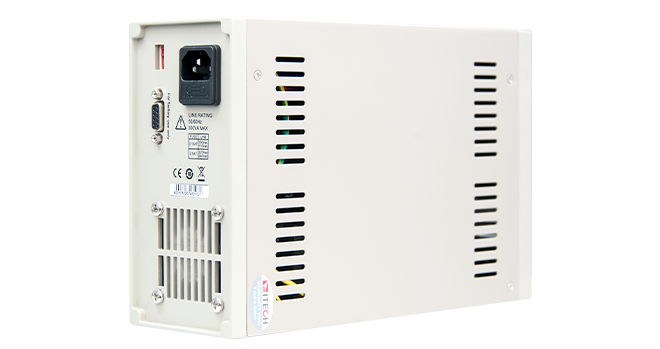

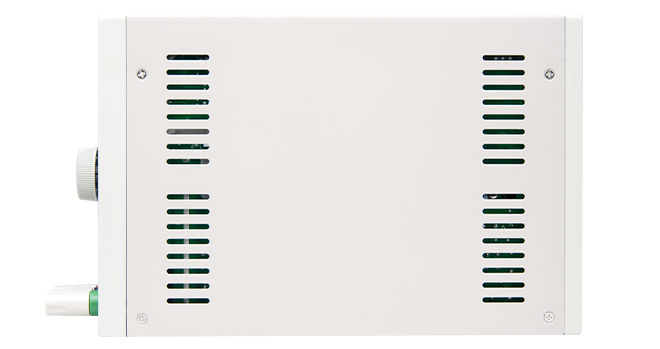

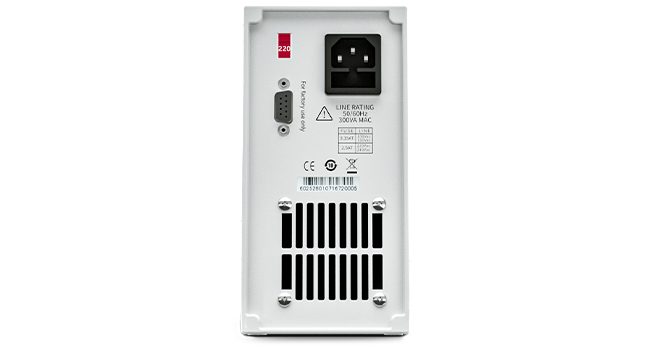

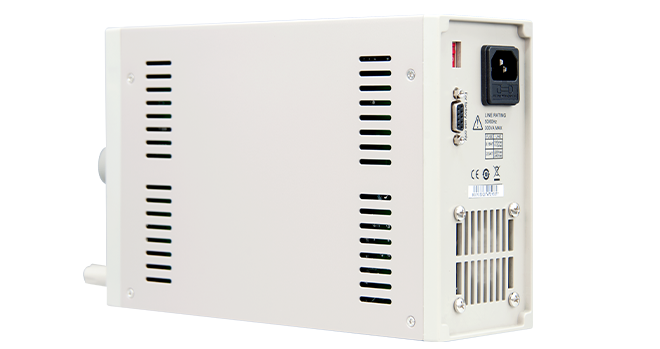

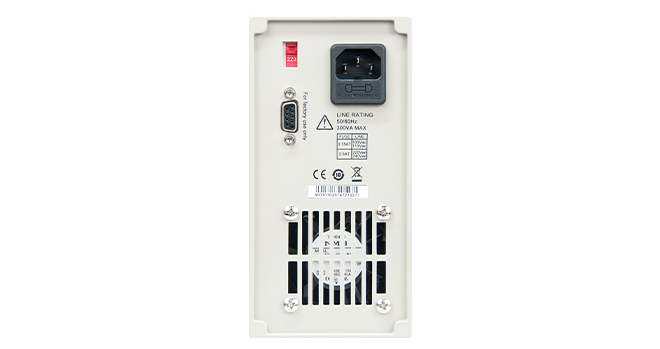

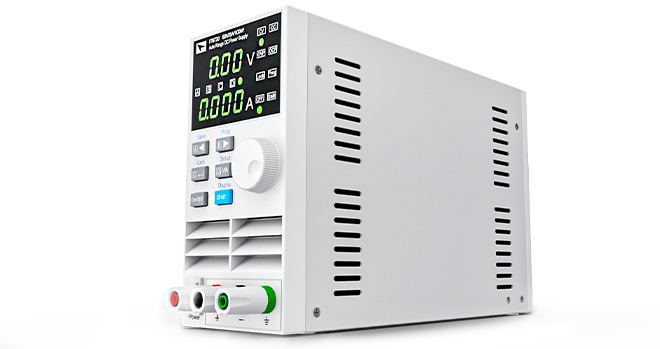

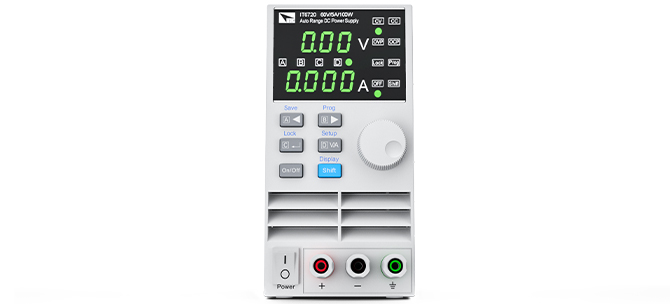

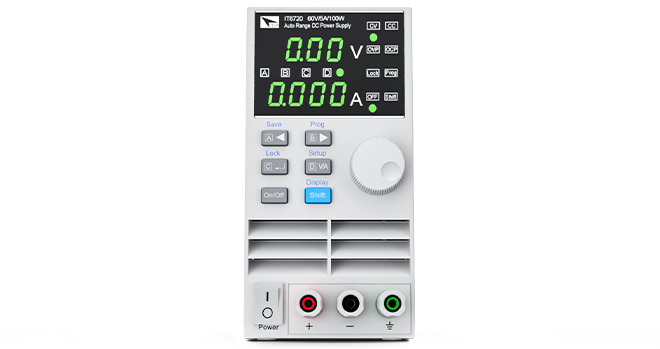

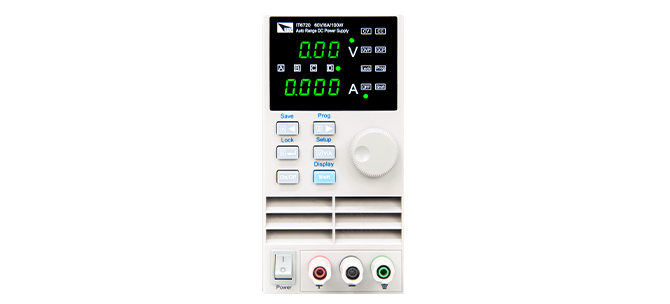

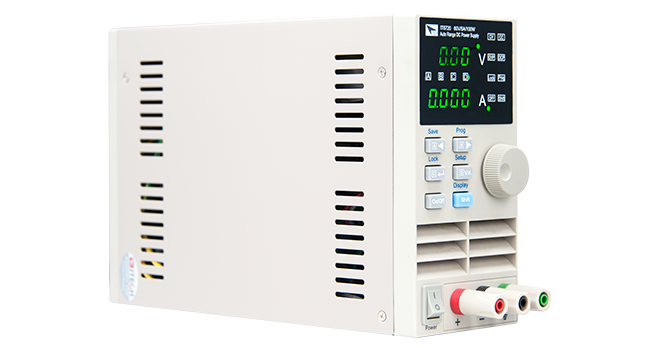

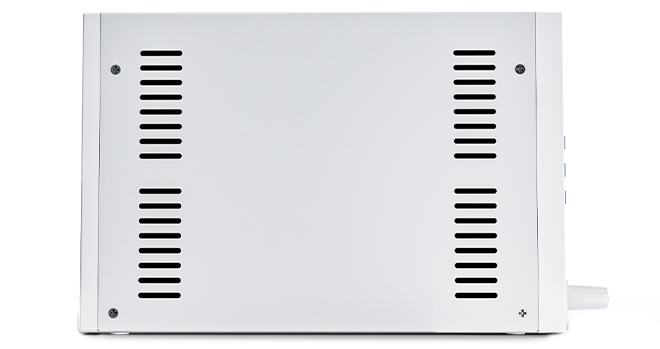

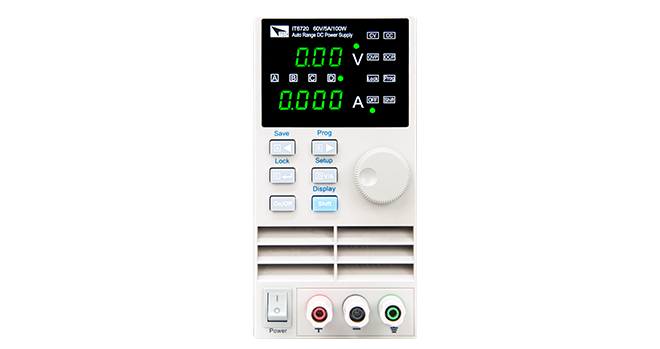

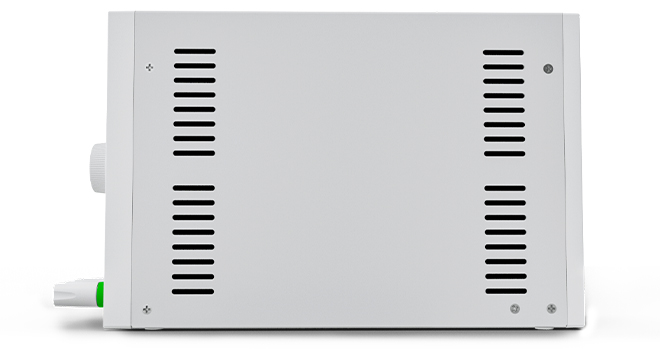

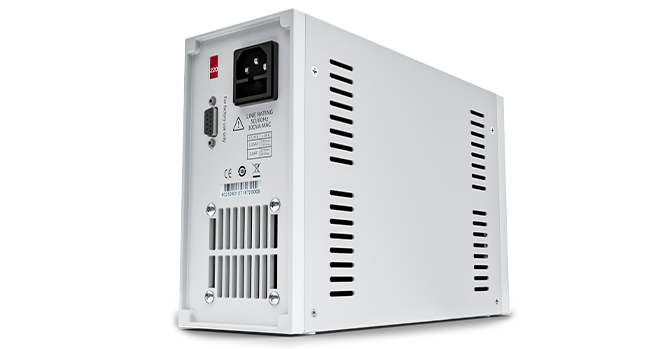

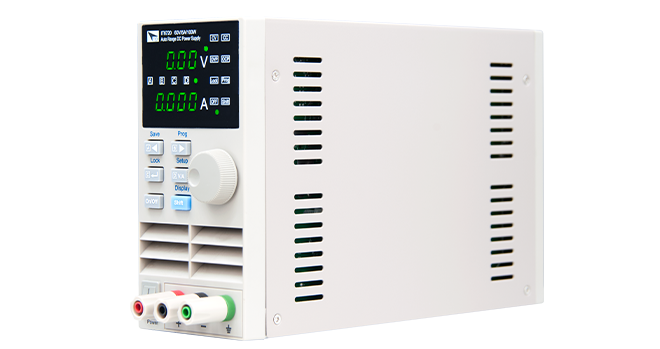

IT6700 Series Digital-control DC Power Supply

IT6700 series power supplies are the most economical power supplies, they have the widest voltage and current utilization, one power supply can replace multiple power supplies, widely used in various testing occasions. With the capacity of 100W, voltage output of 60V, current output of 5A, they can control the change rates of the voltage and current automatically. The power ratio can be up to 3 times. For instance, One IT6720 can subsitute previous 60V*1.6A/32/*3A/20V*5A 3 kinds of models to save your cost.


  • Product catalog
  • Product video
  • Related technical articles
  • User's Manual
Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
IT6720
60V
5A
100W
10mV/1mA
<0.05%+10mV/ <0.1%+2mA
——
88*175*282(mm)
inquiry
IT6721
60V
8A
180W
10mV/1mA
<0.05%+10mV/ <0.3%+5mA
——
88*175*282(mm)
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features
The most economical high performance completely digital-control power supplies
10mV/1mA high accuracy and resolution
Lower noise and ripple
CV/CC modes
Minimum size to save space
LED display
OCP/OVP/OTP protection
Full scale 60V/5A,resolution 10mV/1mA,no need to switch
On/off controlling
Functions and Advantages

Widest voltage and current utilization
IT6700 series can control voltage and current automaticly.The power ratio can be up to 3 times.For instance,one IT6720 can subsitute previous 60V*1.6A/32/*3A/20V*5A  3 kinds of models to save your cost.



Options & Accessories
  • CD (accessory)
    With user manual and communica...
  • AC power cord (accessory)
    AC power cord (accessory)

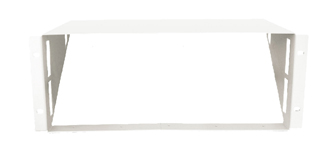

  • IT-E152 (Optional)
    19'' Rack mount kit
