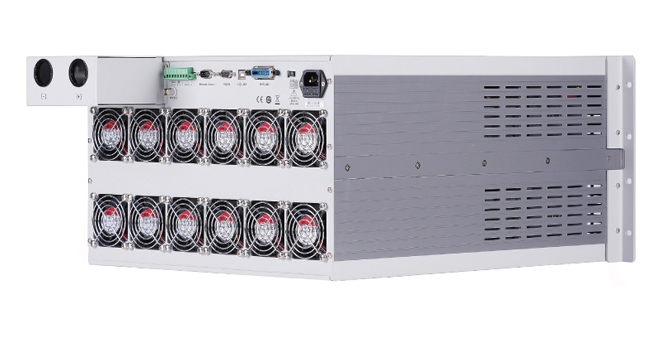

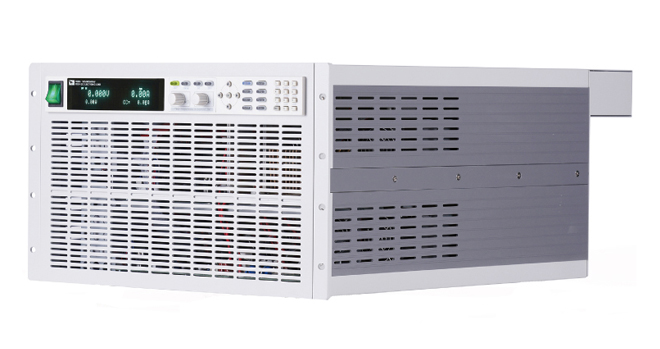

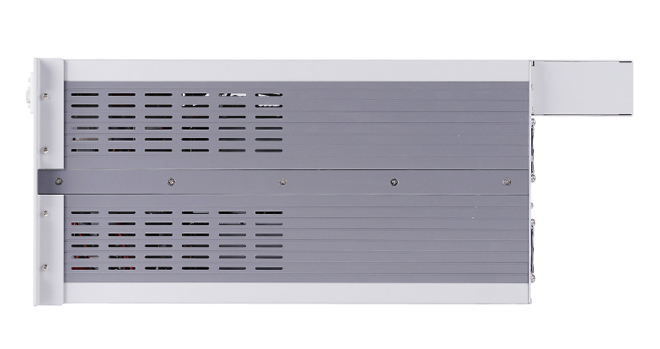

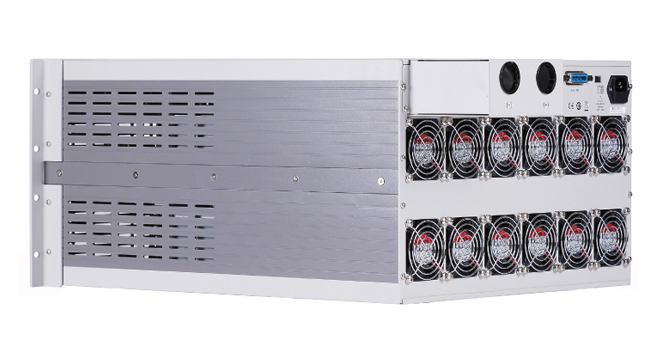

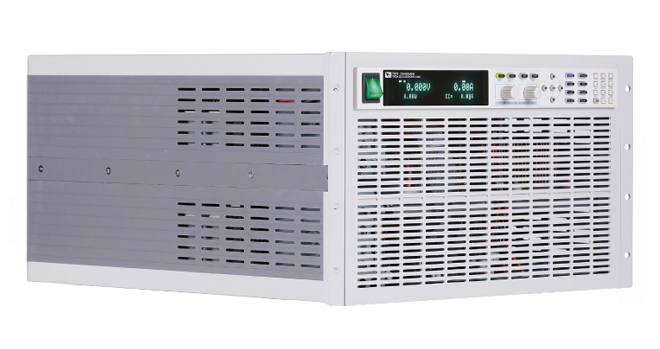

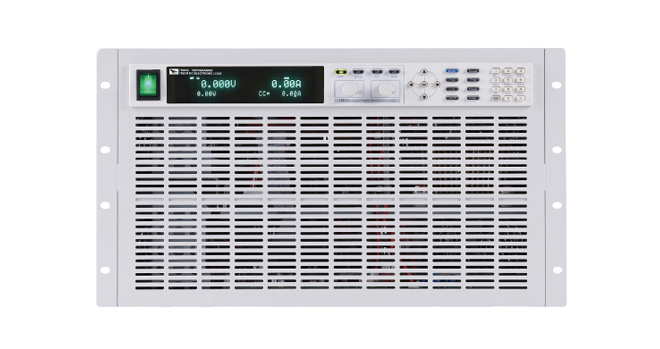

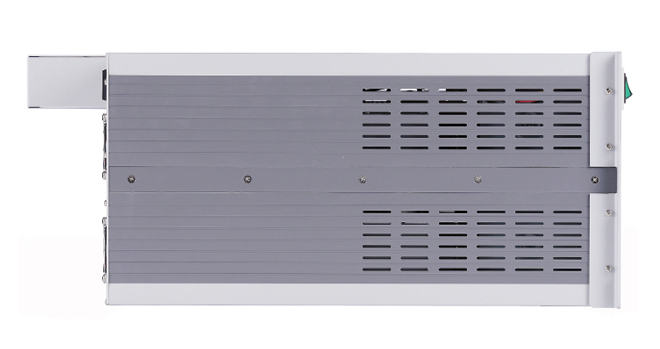

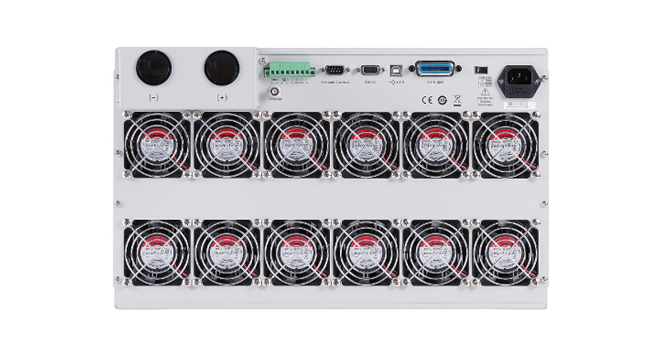

IT8800 High Power DC Electronic Load

IT8800 series has wide power range 150W~10KW, voltage and current measurement speed up to 50KHZ, resolution up to 0.1mV/0.01mA, adjustable measurement current rising speed 0.001A/us~2.5A/us, built-in RS232/GPIB/USB interface. IT8800 series has wide application fields because of its high performance products, it has been applied to LED lighting, automotive electronics and other fields.



製品を探す
型名
電圧
電流
電力
分解能
精度
インターフェース
サイズ
IT8811
120V
30A
150W
1 mV/0.1mA
±(0.05%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
½ 2U
お問い合わせ
IT8812
120V
30A
250W
1 mV/0.1mA
±(0.05%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
½ 2U
お問い合わせ
IT8812B
500V
15A
200W
1 mV/0.1mA
±(0.05%+0.025%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
½ 2U
お問い合わせ
IT8812C
120V
60A
250W
1 mV/0.1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
½ 2U
お問い合わせ
IT8813
120V
60A
750W
1 mV/0.1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
3U
お問い合わせ
IT8813B
500V
30A
750W
1 mV/0.1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
3U
お問い合わせ
IT8813C
120V
120A
750W
1 mV/1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)
RS232/USB/GPIB
3U
お問い合わせ
IT8814
120V
120A
1.5kW
1 mV/1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)
RS232/USB/GPIB
3U
お問い合わせ
IT8814B
500V
60A
1.2kW
1 mV/0.1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)
RS232/USB/GPIB
3U
お問い合わせ
IT8816
120V
240A
3kW
1 mV/1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
3U
お問い合わせ
IT8816B
500V
100A
2.5kW
1 mV/1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
3U
お問い合わせ
IT8817
120V
360A
4.5kW
1 mV/1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)
RS232/USB/GPIB
6U
お問い合わせ
IT8817B
500V
120A
3.6kW
1 mV/1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
6U
お問い合わせ
IT8818
120V
480A
6kW
1 mV/1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)
RS232/USB/GPIB
6U
お問い合わせ
IT8818B
500V
150A
5kW
1 mV/1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
6U
お問い合わせ
IT8819H
800V
80A
7.5kW
1 mV/1mA
±(0.05%+0.05%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
12U
お問い合わせ
IT8830
120V
500A
10kW
1 mV/1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.1%FS)
RS232/USB/GPIB
12U
お問い合わせ
IT8830B
500V
200A
10kW
1 mV/1mA
±(0.025%+0.05%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
12U
お問い合わせ
IT8830H
800V
100A
10kW
1 mV/1mA
±(0.05%+0.05%FS)/ ±(0.05%+0.05%FS)
RS232/USB/GPIB
12U
お問い合わせ
Show all
* The above specifications are subject to change without prior notice.
製品特性

 150-10kW/120-800V/15-500A

 CV/CC/CR/CW mode
 Remote sense
 Measurement resolution:0.1mv,0.01ma
 Dynamic mode: up to 25 KHz
 Adjustable current rising slope: 0.001A/us~2.5A/us·
 Measurement speed: up to 50KHz ·
 Dynamic test, short-circuit test function
 Rotary knob, making the operation more easier
 CR-LED test
 OCP / OVP / CPP / OTP/ Reverse polarity protection
 100 groups memory capacity
 Power off memory function
 External analog control
 Support VISA/USBTMC/SCPI communication protocol
♦ Built-in RS232/USB/GPIB communication interface
 Software monitoring via PC



機能及び特徴

Dynamic mode up to 25KHz

Dynamic mode operation allows the electronic load to be switched between the two setting parameters according to the setting rules. Dynamic mode can be used to test the dynamic nature of the power supply, e.g. when the computer disk drive is running or stopped, the dynamic load mode can simulate change of operating current.


Adjustable rising/falling speed of current

The user can use IT8800 test the voltage rising / falling time. Enter the measure menu under config, set two voltage points. And then turn on the display on timer function, the rising / falling time will be displayed on the screen when finished.

This test is improtant for switching power supply testing, fuse testing.
