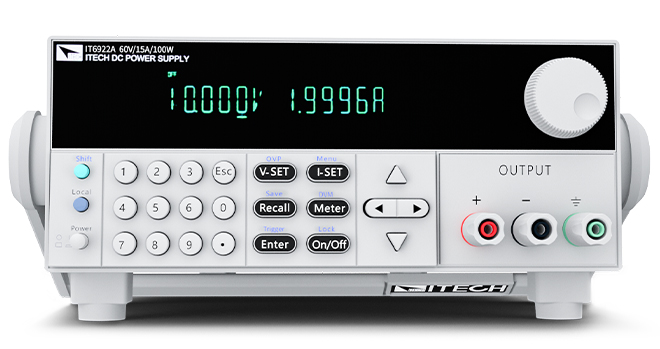

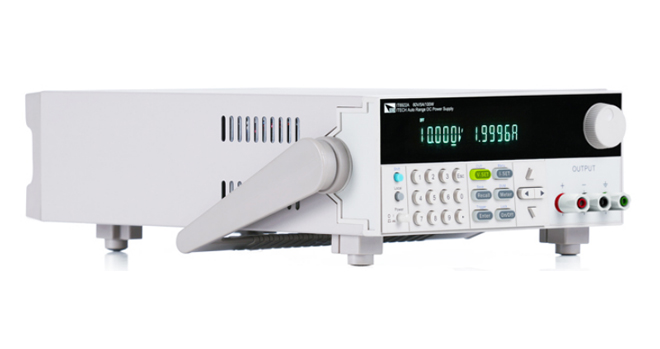

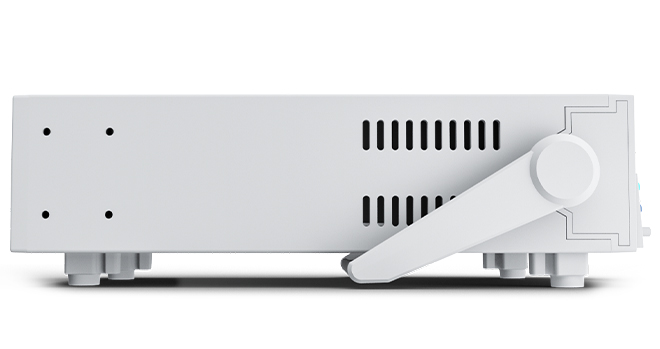

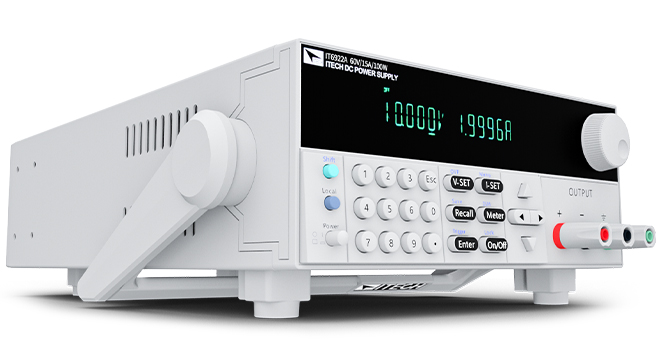

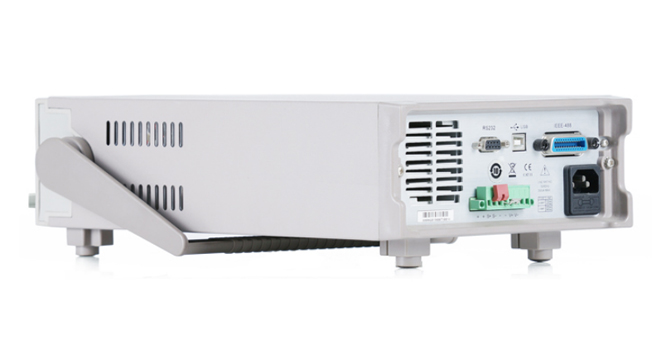

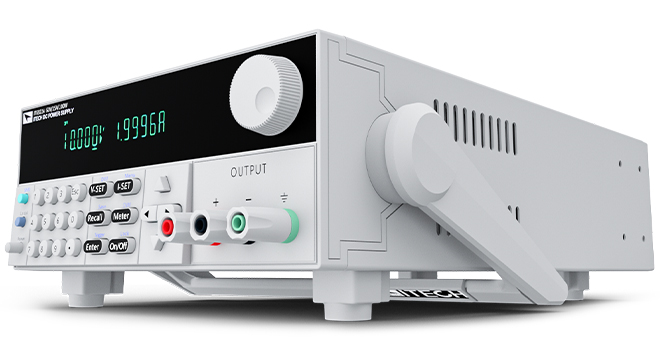

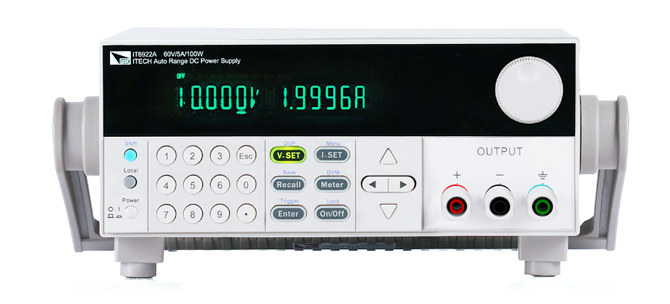

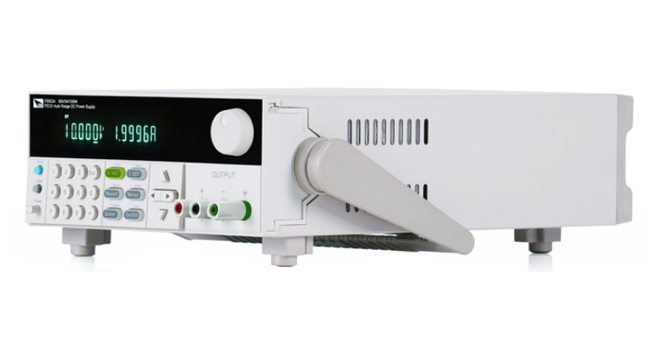

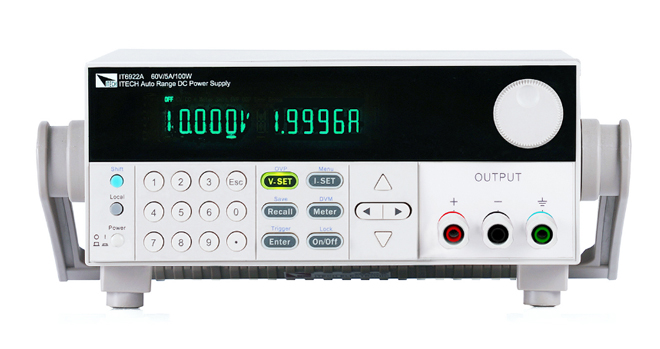

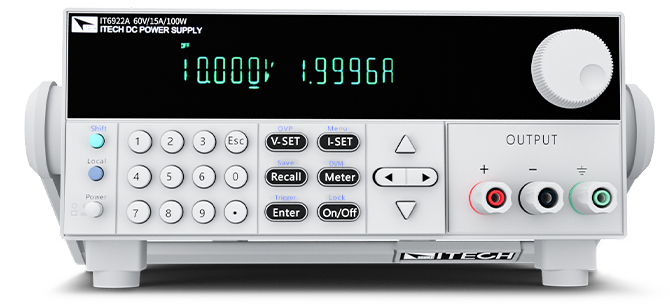

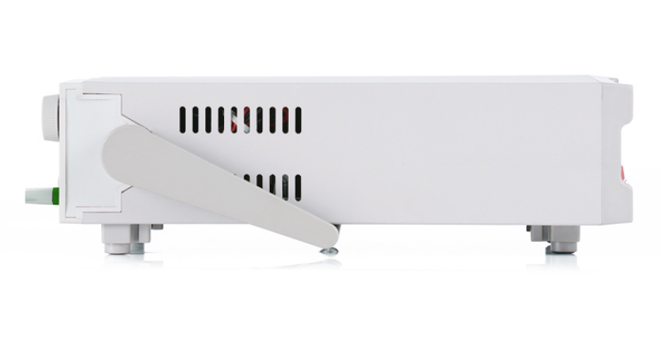

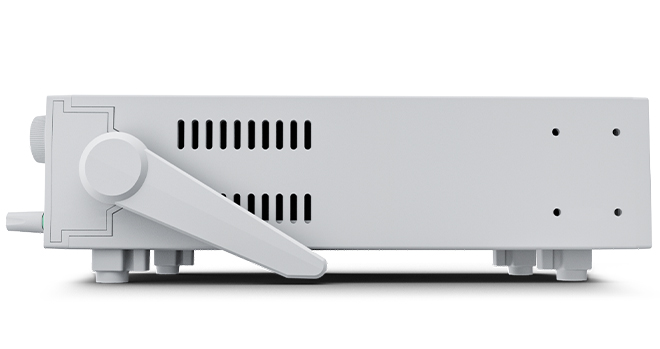

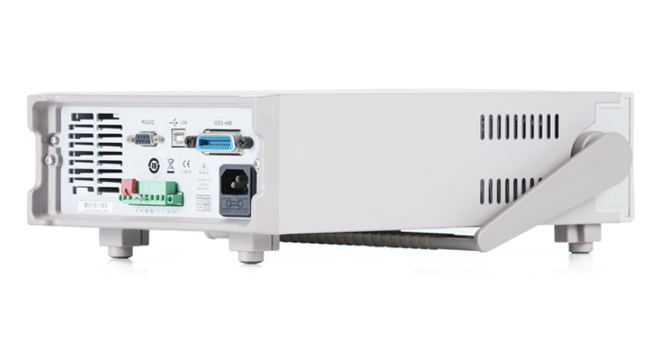

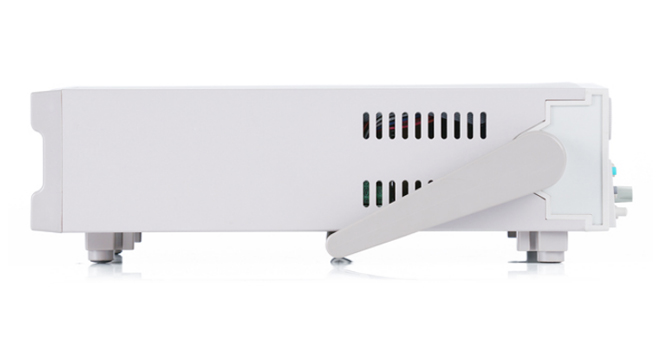

IT6900A Wide-range Programmable DC Power Supply

IT6900A series wide range programmable power supply have built-in standard RS232, USB, RS485 and analog interface (RS485 and analog interface are just for IT6900B), support SCPI protocol, facilitate remote control, industrial PLC control and the formation of intelligent test platform. Remote compensation terminals avoid the problem of inaccurate testing caused by voltage drop on the wire.Low ripple, low noise and built-in digital voltmeter make IT6900A easy to do external measurement.IT6900A can be widely applied in DC-DC power supply module, battery charging and sensors and other test areas.



Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT6933B
150V
5A
200W
1mV/1mA
≤0.03%+5mV/ ≤0.1%+10mA
RS232/USB/RS485/external analog
½ 2U
inquiry
IT6932B
60V
10A
200W
1mV/1mA
≤0.03%+5mV/ ≤0.1%+10mA
RS232/USB/RS485/external analog
½ 2U
inquiry
IT6922B
60V
5A
100W
1mV/0.1mA
≤0.03%+5mV/ ≤0.1%+5mA
RS232/USB/RS485/external analog
½ 2U
inquiry
IT6953A
150V
10A
600W
1mV/1mA
≤0.03%+20mV/ ≤0.1%+25mA
RS232/USB
½ 2U
inquiry
IT6952A
60V
25A
600W
1mV/1mA
≤0.03%+5mV/ ≤0.1%+25mA
RS232/USB
½ 2U
inquiry
IT6942A
60V
15A
360W
1mV/0.1mA
≤0.03%+5mV/ ≤0.1%+15mA
RS232/USB
½ 2U
inquiry
IT6933A
150V
5A
200W
1mV/1mA
≤0.03%+5mV/ ≤0.1%+10mA
RS232/USB
½ 2U
inquiry
IT6932A
60V
10A
200W
1mV/1mA
≤0.03%+5mV/ ≤0.1%+10mA
RS232/USB
½ 2U
inquiry
IT6922A
60V
5A
100W
1mV/0.1mA
≤0.03%+5mV/ ≤0.1%+5mA
RS232/USB
½ 2U
inquiry
IT6953B
150V
10A
600W
1mV/1mA
≤0.03%+20mV/ ≤0.1%+25mA
RS232/USB/RS485/external analog
½ 2U
inquiry
IT6952B
60V
25A
600W
1mV/1mA
≤0.03%+5mV/ ≤0.1%+25mA
RS232/USB/RS485/external analog
½ 2U
inquiry
IT6942B
60V
15A
360W
1mV/1mA
≤0.03%+5mV/ ≤0.1%+15mA
RS232/USB/RS485/external analog
½ 2U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

VFD display
Adjust voltage and current via knob or numerical key pad
High accuracy and high resolution
Adjust digital step value via cursor
Output according to voltage and current programed
Output Timer(0.1 ~ 99999.9S) Function
Low ripple and low noise
Remote Sense Function
OVP/OCP/OTP protection fucntions
Intelligent fan control
Rich SCPI instructions to facilitate the formation of intelligent test platform
Support front and rear panel output
Optional external analog function


Functions and Advantages

Remote sense function

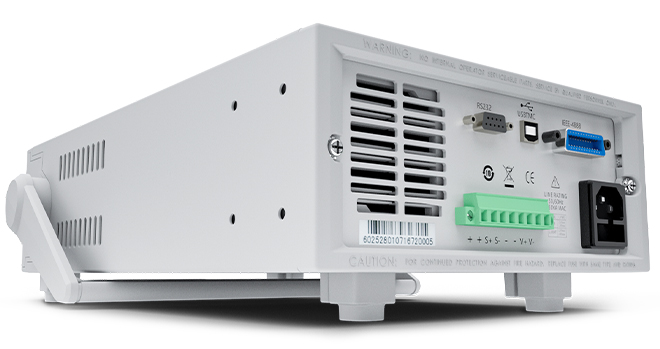

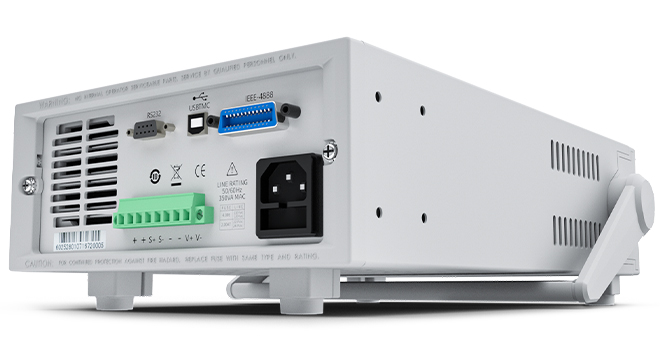

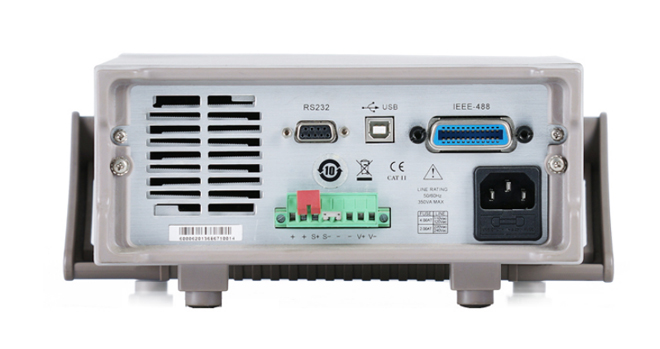

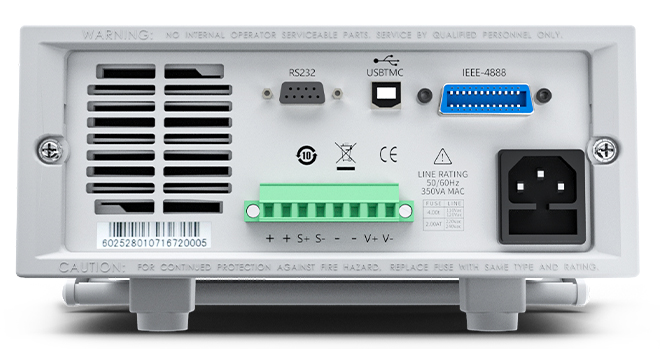

In order to avoid the pressure drop caused by the length of the wire connecting the load, the remote test allows measurement directly on the terminal of the test object to improve the measurement accuracy. S +, S is the remote measurement terminal, +, - is the output positive and negative terminals. When using the remote measurement function, it is necessary to disconnect the wires connected to the "+, -" terminals and lead S +, S to the test object.


List function



Auto Range

IT6900A series is a power supply with automatic wide range output. It can realize various voltage and current combinations under fixed power. One power supply can meet the test of high voltage and low current or high current and low voltage. At the same time, because the output of power supply voltage and current is controlled by the limit power, it will show the switching of voltage and current automatic range.


Options & Accessories
  • IT-E9005(Optional)
    ITECH Warranty up to 5 years
  • IT-E9003(Optional)
    ITECH Warranty up to 3 years
  • CD (accessory)
    With user manual and communica...
  • USB
    For USB port communication
  • AC power cord (accessory)
    AC power cord (accessory)

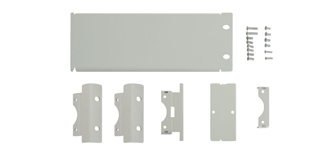

  • IT-E151A (Optional)
    19'' Rack mount kit
  • IT-E30110-AB (Optional)
    10A/1m/Alligator clip - Banana...
  • IT-E30110-BB (Optional)
    10A/1m/Banana plug - Banana pl...
  • IT-E30110-BY (Optional)
    10A/1m/Banana plug - Y termina...
  • IT-E30312-YY (Optional)
    30A/1.2m/Y terminal, a pair of...
  • IT-E30320-YY (Optional)
    30A/2m/Y terminal, a pair of r...
