The unique bipolar voltage/current output makes IT6400 series can be used as a bipolarpower source or a bipolar electronic load. The battery simulating function isespecially applicable for development and high speed production testing ofportable, battery-operated products. IT6400 has ultrafast transient time lessthan 20 μs and resolut ion up to 1 nA. Its new designed speed shift modeachieves volt age/current fast rising and without overshoot, the rising time upto 150μs. Mean while, the waveform display function let the test be visible and simple. IT6400 series can be widely used in portable battery-operatedproducts test, mobile power pack test, LED test and other fields.
♦ Maximum output power of single channel up to 150 W , outputvoltage max. ±60 V, output current max. ±10A
♦ High performance color LCD display, dual channel output display main interface *1
♦ Bipolar dual-range output
♦ Accurate Battery Simulation
♦ Oscilloscope waveform display (DSO)
♦ Ultrafast transient response time < 20 μs
♦ Ultrafast voltage rising time up to 150 μs *2
♦ Current display resolution up to 1 nA
♦ Ultra-small current ripple up to 2 μArms
♦ Built-in high accuracy DVM
♦ Variable output impedance
♦ Applicable to portable battery power supplies test
♦ LED test no overcharged current
♦ Relay out function achieves electrical isolation on terminals
♦ High speed AD sampling
♦ List function achieves voltage/current output as programmed
♦ Standard interface LAN/USB/GPIB
*1 IT6412 provide this function
*2 IT6432H stay tuned
♦ Portable battery-operated products test
♦ Mobile power pack test
♦ Battery protection board test
♦ Battery test
♦ LED test
♦ Power amplifier Test
♦ DC / DC converter test
♦ Support fast charge
♦ Fast charge has become a development trend for mobile phone, tablet PC and other electronic products, the major electronics manufacturers also focus on fast charge. IT6431 battery simulator current output up to ± 10 A, fully meet the market mainstream low-voltage, high current f ast charge test requirements.

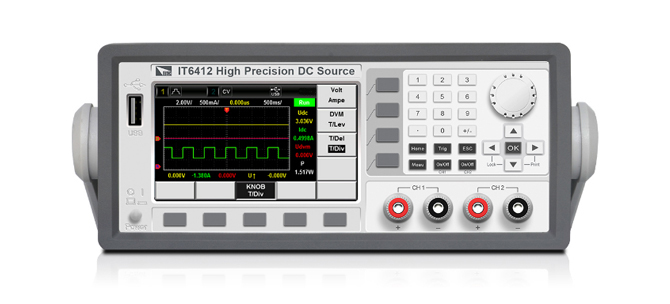

IT6400 high speed linear DC source provides bipolar output, maximum output voltage of single channel up to ± 60 V, maximum output current up to ± 10 A. IT6400 is with multi-functional and high-performance output, so that it meets various of test needs. IT6412 is a dual-channel bipolar DC source and it is available for easy-shifting dual range output with each channel. Users can switch according to test requirements, one set of IT6412 can fi nish mobile and charger test independently ， a single device to complete the test phone and charger,easy to use.

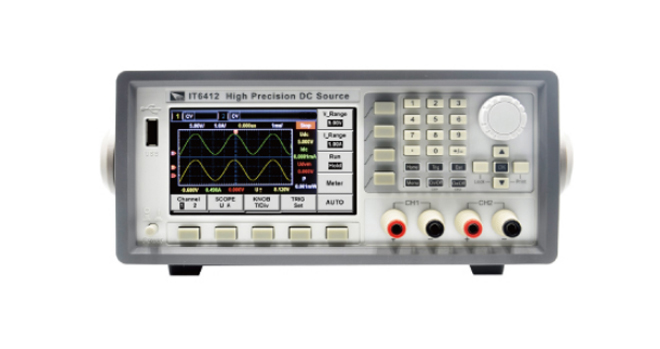

Oscilloscope Waveform Display Function
IT6400 battery cell simulator provides waveform display function based on sample data. The voltage/current waveform is visible or invisible by your option, and can be adjusted by the knob. The graphic on the newly design colorful display can be saved, achieves easy and effective oscilloscope experience.
Battery Simulating Function
With the unique current bipolar design and 0~20 Ω variable outp u t impedance, IT6400 battery simulator power supply is applicable to types of portable battery charge-discharge tests. Simulating the battery charge-discharge features and assist with other tests are also reliable. One equipment, diversified applications.
