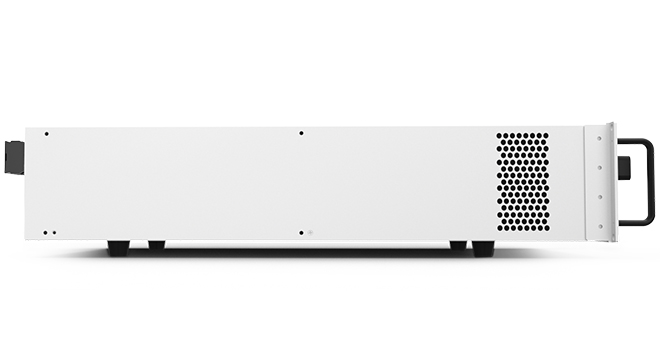

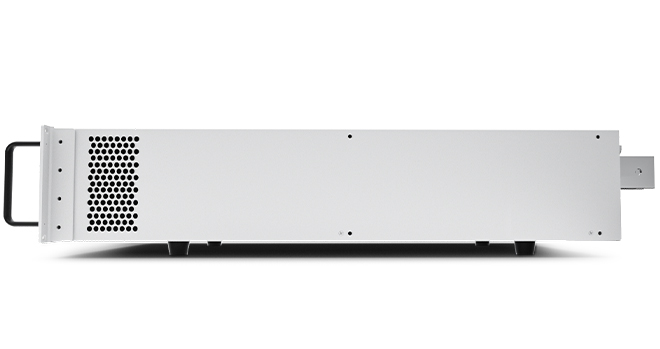

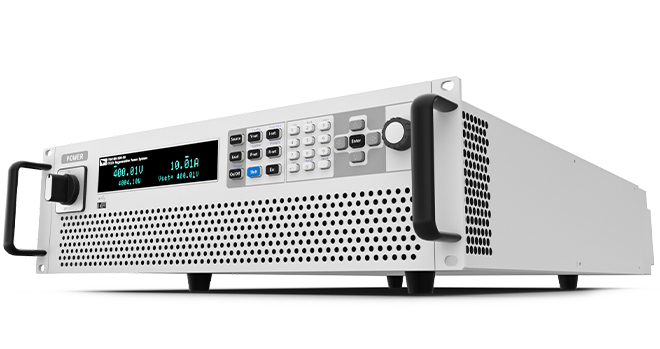

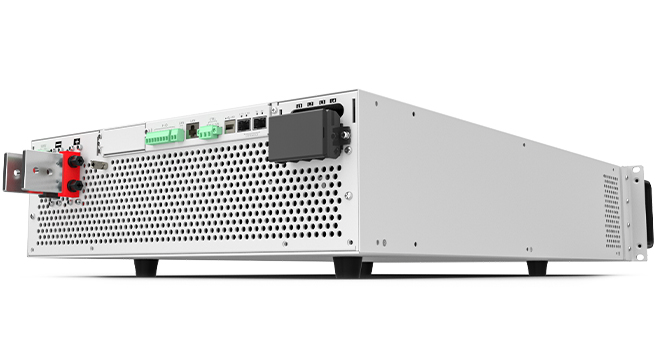

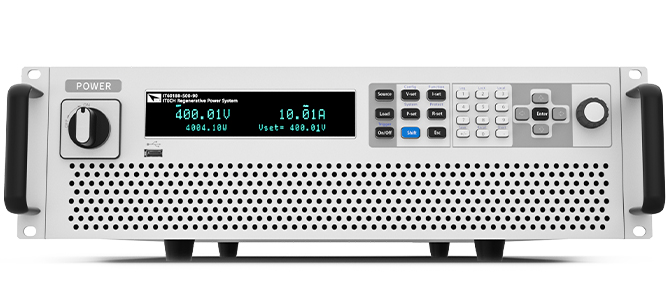

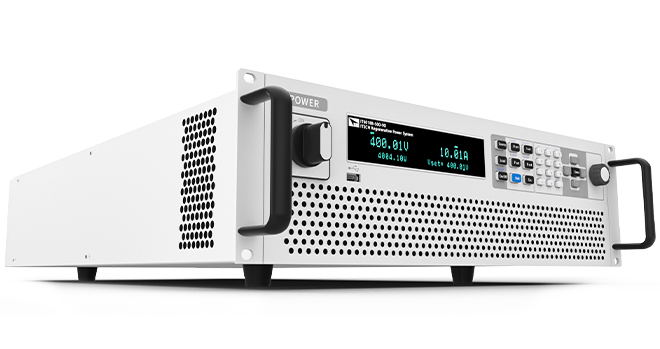

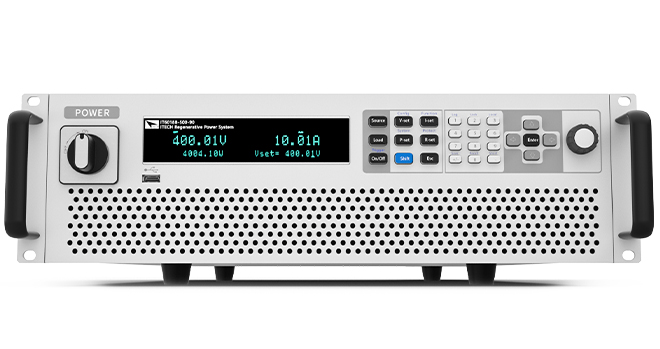

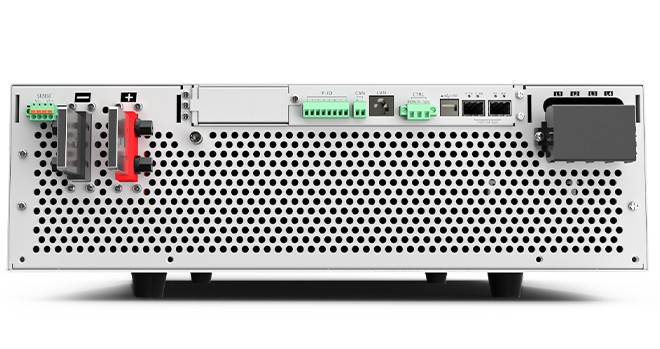

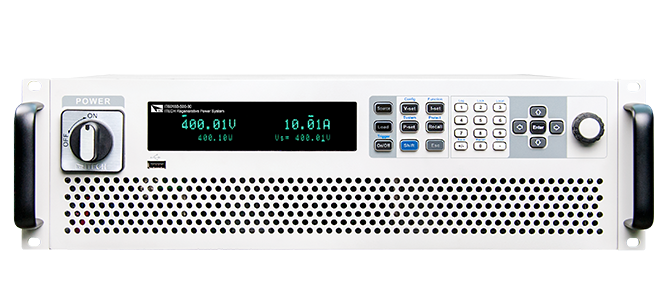

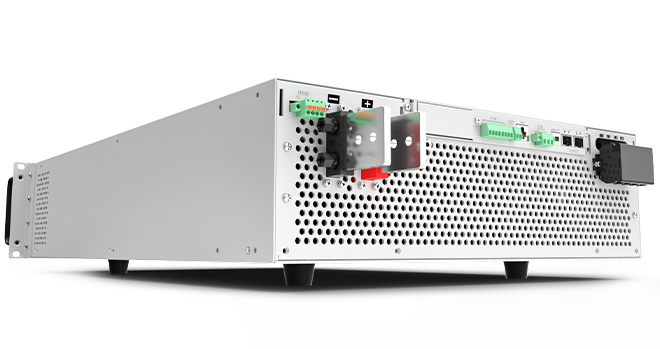

IT6000B Regenerative Power System

From the perspective of improving customer experience, ITECH launches a new incorporated product--IT6000B series. Adopting advanced SiC technology, IT6000B integrates bidirectional power supply and regenerative electronic load into one 3U unit. It can be used not only as a stand-alone powerful bidirectional power supply, as a source to provide power; but also as an independent regenerative electronic load, to absorb the consumed energy and feedback cleanly to the grid. IT6000B offers standard two-quadrants functionality. IT6000B provides 7 voltage specification, up to 2250V, supports master-slave parallel with even current distribution up to 2 MW. Built-in waveform generator supports generating arbitrary waveforms, and imports LIST files for waveforms via USB interface. IT6000B is a family of bi-directional, regenerative power system with excellent performance, extensively used in aspects of high power battery, automotive electronics, green energy, high speed testing etc.




Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT6005B-80-150
80V
150A
5kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6006B-300-75
300V
75A
6kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6120B-80-2040
80V
2040A
120kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6105B-80-2040
80V
2040A
105kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6090B-80-2040
80V
2040A
90kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6075B-80-2040
80V
2040A
75kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6060B-80-1800
80V
1800A
60kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6045B-80-1350
80V
1350A
45kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6030B-80-900
80V
900A
30kW
0.001V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT6015B-80-450
80V
450A
15kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6010B-80-300
80V
300A
10kW
0.001V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6012B-500-80
500V
80A
12kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6006B-500-40
500V
40A
6kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6144B-300-1800
300V
1800A
144kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6126B-300-1575
300V
1575A
126kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6108B-300-1350
300V
1350A
108kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6090B-300-1125
300V
1125A
90kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6072B-300-900
300V
900A
72kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6054B-300-675
300V
675A
54kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6036B-300-450
300V
450A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT6018B-300-225
300V
225A
18kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6012B-300-150
300V
150A
12kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6090B-800-375
800V
375A
90kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6072B-800-300
800V
300A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6054B-800-225
800V
225A
54kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6036B-800-150
800V
150A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT6018B-800-75
800V
75A
18kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6012B-800-50
800V
50A
12kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6006B-800-25
800V
25A
6kW
0.01V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6144B-500-960
500V
960A
144kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6126B-500-840
500V
840A
126kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6108B-500-720
500V
720A
108kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6090B-500-600
500V
600A
90kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6072B-500-480
500V
480A
72kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6054B-500-360
500V
360A
54kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6036B-500-240
500V
240A
36kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT6018B-500-120
500V
120A
18kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6072B-2250-100
2250V
100A
72kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6054B-2250-75
2250V
75A
54kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6036B-2250-50
2250V
50A
36kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT6018B-2250-25
2250V
25A
18kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6144B-1500-320
1500V
320A
144kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6126B-1500-280
1500V
280A
126kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6108B-1500-240
1500V
240A
108kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6090B-1500-200
1500V
200A
90kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6072B-1500-160
1500V
160A
72kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6054B-1500-120
1500V
120A
54kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT6036B-1500-80
1500V
80A
36kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT6018B-1500-40
1500V
40A
18kW
0.1V/0.001A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT6144B-800-600
800V
600A
144kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6126B-800-525
800V
525A
126kW
0.01V/0.1A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6108B-800-450
800V
450A
108kW
0.01V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6144B-2250-200
2250V
200A
144kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6126B-2250-175
2250V
175A
126kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6108B-2250-150
2250V
150A
108kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT6090B-2250-125
2250V
125A
90kW
0.1V/0.01A
≤0.02%+0.02%FS/≤0.1%+0.1%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features
 2 in 1 device integrating bidirectional DC power supply and electronics load supported by advanced third-generation SiC technology
 Seamless current switch between souring and sinking
 Stand-alone power up to 144kW, expandable in parallel up to 2 MW
 Voltage output ratings: 0-2250V
 Current output ratings: 0 to 2040A (single cabinet), 0 to 8000A (parallel connection between cabinets)
 High power density design provides 18kW in 3U space
 Seamless current switch between souring and sinking
 Support CC/CV loop speed and priority setting
 Partial pre-compliant with LV123, LV148, DIN40839, ISO-16750-2, SAEJ1113-11,LV124 and ISO21848 automotive testing standards
 High efficient energy recovery
 Battey cycle test - support CC/CV/CP
 Built-in waveform generator, support generating arbitrary waveforms
 PV simulator(with SAS1000) - solar array I-V curves simulation
 Complete protection, support OVP, ±OCP, ±OPP, OTP, voltage transient drop protection and anti-islanding
protection
 Built-in USB/CAN/LAN/digital IO interface, Optional GPIB/Analog&RS232
 Support Datalog via USB disk and the shortest sample interval is 10us
 Battery simulator(with BSS2000) -Characteristic simulation of various batteries
 Strong dynamic driving profile simulation function, up to 10,000,000 points
Functions and Advantages

One button switch between source and sink

IT6000B innovatively incorporate two devices in one: a bidirectional power supply and a regenerative electronic load. The devices offer the functional button on panel for easy two-quadrants operation, either as a bidirectional programmable DC power supply or as a DC electronic load with recovery function. It reduces the space , cost and efforts on DUT for separate units.


Bi-directional energy, seamless switching

The IT6000B Series combines bi-directional power supply and regenerative load function in one. Unlike traditional power supplies and E-loads, for which there will be short transitions and incontinuity in the middle of positive and negative current switching, IT6000B is a standard high-speed bidirectional power supply. It can switch seamlessly between source and sink mode fast and continuously, which avoids voltage or current overshoot effectively. It can be applied to battery test, cell packaging equipment test, battery protection board test, etc.


High energy regenerative efficiency

The IT6000B series has a unique function of energy regenerative that can regenerate electrical energy and then directly use it in the plant instead of consuming it in the form of heat. Its conversion efficiency can reach up to 95%, which not only greatly reduces the user's electricity cost, but also avoids the use of air conditioning or expensive cooling systems. Most of the conventional electronic loads are energy-consuming loads. In addition to the high cost of electricity, large amounts of carbon dioxide, sulfur dioxide, nitrogen oxides and other greenhouse gases or harmful gases are generated during power generation, which is harmful to the environment. IT6000B can avoid any of these by its regenerative function.


Application for solar array simulation

IT6000B optional SAS1000 SOLAR ARRAY SIMULATION SOFTWARE, users can easily use the software to output, measure, display the maximum power and track status of photovoltaic inverter in real time and record value. With the built-in EN50530 / Sandia NB/T32004 / C GC/GF004 /CGC/GF035 regulatory testing procedures, it is simple for users to simulate I-V curves, test the static and dynamic MPPT performance of PV inverters and generate reports. Solar simulation power supply also provides the shadow and table mode, Users can enter up to 4096 points array to edit any shielded IV curve and achieve dynamic shadow effect. Or users can store 100 I-V curves under different irradiation and temperature, set operation time and order to test the long-term MPPT of photovoltaic inverters under different climatic conditions.



Built-in voltage curves for a variety of standard automotive voltage curves

Automotive electronics may often experience power transients during vehicle start-up and operation. To ensure that the device under test can withstand these actual transients, the tester must simulate worst-case power transient conditions during the test. According to the relevant standards of the industry, the IT6000B has built-in voltage curves for DIN40839, ISO-16750-2, SAEJ1113-11, LV124 and ISO21848 standard automotive voltage curves. Users can easily recall various waveforms directly, such as voltage drop waveform during vehicle starting up, pulse waveform and other related automotive electronics waveforms for performance tests. Available voltage grades in 12V, 24V and 48V.


CC&CV Priority

IT6000B has CC/CV priority function which is the newest concept in the industry. It can meet different application requests such as fast speed or no overshoot and make the test more flexible. Users can choose CC/CV loop response time and loop working mode to decide the output to be voltage high speed mode or current no overshoot mode. This unique function makes it suitable for the application of high power integrated circuit test, charging and discharging test, transient simulation test of automotive electronics etc.


Parallel technology

 All the function and performance will be the same as standalone unit
 No need to calibrate after paralleling
 Fiber transmission, good for anti-interference
 Digital paralleling, fully insulated, good for protecting DUT


Options & Accessories
  • AC power cord (accessory)
    AC power cord (accessory)
  • USB straight wire (accessory)
    Used for USB port communicatio...
  • IT-E168/169(Optional)
    Parallel optical fiber kit Sin...
  • IT-E165A-250/400/500(Optional)...
    Anti-reverse connection module...
  • IT-E165B (Optional)
    Anti-electromotive force modul...
  • SAS1000(Optional)
    Solar array simulation softwar...
  • FCS3000(Optional)
    Single channel fuel cell simul...
  • BSS2000(Optional)
    Battery simulating software ba...
  • IT-E166(Optional)
    GPIB

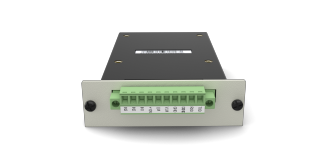

  • IT-E167(Optional)
    RS232/Analog communication car...
  • ITcabinet(Optional)
    ITcabinet 15U/27U/37U
  • AC power cord(Optional)
    AC power cord, 5m
  • IT-E30312(20)-YY(Optional)
    30A/1.2m(2m)/Y terminal, a pai...
  • IT-E30615-OO(Optional)
    60A/1.5m/Round terminal, a pai...
  • IT-E31220-OO(Optional)
    120A/2m/Round terminal, a pair...
  • IT-E32410(20)-OO(Optional)
    240A/1m(2m)/Round terminal, a ...
  • IT-E33620-OO(Optional)
    360A/2m/Round terminal, a pair...
  • IT-E9005(Optional)
    ITECH Warranty up to 5 years
  • IT-E9003(Optional)
    ITECH Warranty up to 3 years
Database
Related Products
Relevant Solutions
Related technical articles
User's Manual
Product catalog
***Item is required. Please submit the information after completion.
You have submitted it successfully, We will review it as soon as possible.

No Records

More information Product / Solutions
