IT-N6900 Programmable DC Power Supply
IT-N6900 DC power supply has 60V and 150V, 800W and 1500W output. It features as black panel and large screen, low ripple and noise. It can provide stable and pure DC power, two current ranges, up to 1μA current resolution. It has CC and CV priority settings, new Foldback protection. It is well used for the test of DC-DC, semiconductor lasers, automotive electronics, communication electronics, motors, PV modules and so on. IT-N6900 series supports SCPI and LabVIEW drivers, built-in USB/LAN/digital IO communication interface, optional GPIB/RS232, suitable for remote control and system integration, and can be used in R&D, production lines, univeristies, etc.
Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT-N6952
60V
25A
800W
1mV/1uA
≤0.03%+12mV/≤0.1%+30uA
Built-in USB/LAN/ digital IO, optional GPIB/RS232
inquiry
IT-N6962
60V
25A
1500W
1mV/1uA
≤0.03%+12mV/≤0.1%+30uA
Built-in USB/LAN/ digital IO, optional GPIB/RS232
inquiry
IT-N6953
150V
10A
800W
1mV/1uA
≤0.03%+20mV/≤0.1%+30uA
Built-in USB/LAN/ digital IO, optional GPIB/RS232
inquiry
IT-N6963
150V
10A
1500W
1mV/1uA
≤0.03%+20mV/≤0.1%+30uA
Built-in USB/LAN/ digital IO, optional GPIB/RS232
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

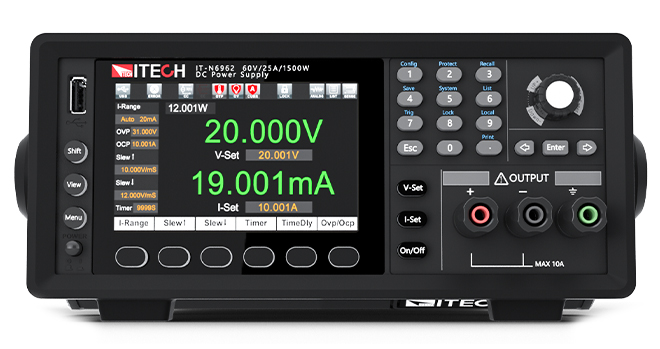

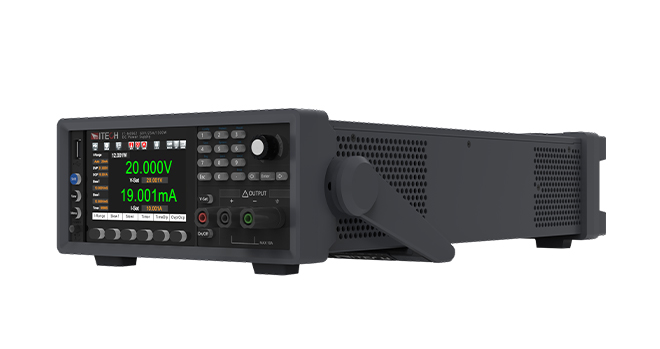

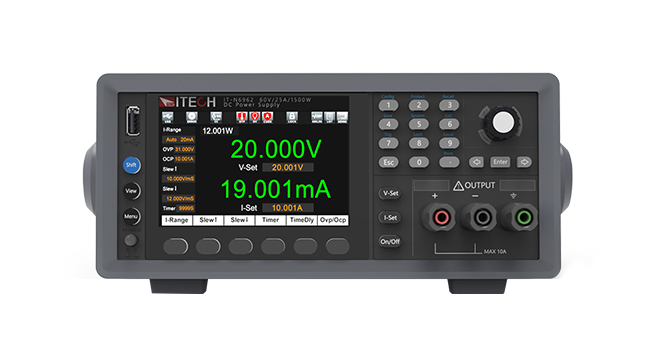

 4.3” LCD
 Voltage: 60V, 150V
 Power: 800W, 1500W, wide range output
 Two current ranges, 1μA current resolution
 Linear + switching structure, lower ripple and noise
 Using a new type of transformer, lighter, higher efficiency and stability
 Faster voltage rise and fall
 With CC, CV priority, suitable for a variety of DUT's
 Remote compensation function
 Support OVP, UVP, OCP, OPP, OTP, F oldback protection function

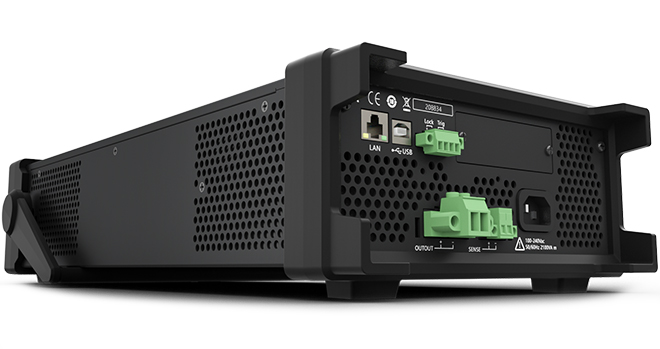

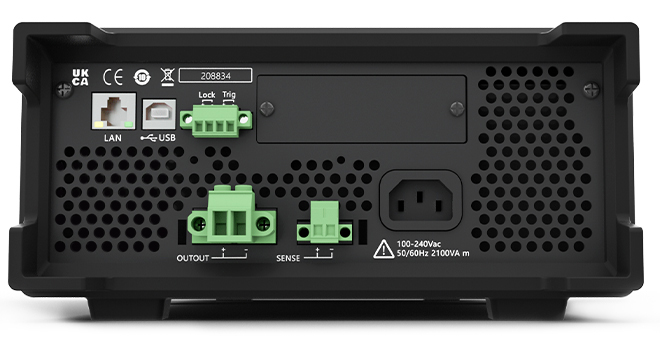

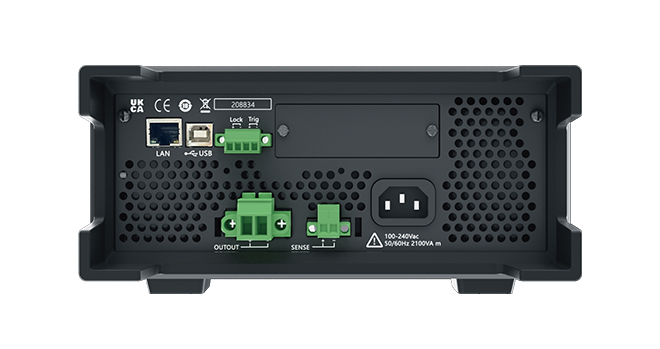

 Built-in USB/LAN/Digital IO communication interface, optional GPIB/RS232
 Support SCPI, LabVIEW programming
Functions and Advantages

List programming

The LIST pr ogramming func tion of IT-N6900 c an pr ovide a maximum of 100 s teps of sequenc e output , and a t otal of 10 sequence files c an be edit ed. The user c an g enerate various output chang e sequences b y editing the s teps such as voltage, curr ent, time and whe ther t o c ycle the s teps of each single s tep. The p arameters include time units.

CC&CV priority

IT-N6900 has C C/CV priority func tion, which is suit able f or complex applic ations with high speed or no
overshoot t est r equirements. In C V priority mode, y ou c an g et faster v oltage rising. In C C priority mode, the output curr ent has no o vershoot, which c an be used t o t est the DUT of c onstant curr ent operating
characteristics. It is g ood f or applic ations such as laser t esting, int egrated cir cuit t esting, char ge and
discharge testing, power transient simulation and characterization of automotive electronics, etc.



Foldback

IT-N6900 supports multiple protection functions such as OVP/UVP/OCP/OPP/OTP/Foldback. The F oldback protection function is mainly used to turn off the output when the power supply CV/CC is switched, so as to protect the DUT swhich are sensitive to voltage and current overshoot. You can set the working mode and the protection delay time. If the current working mode is changed, the protection will be triggered when the time is up and the output will be turned off .

Options & Accessories
  • AC power cord (accessory)
    AC power cord (accessory)
  • IT-E177 (accessory)
    RS232/Analog communication car...
  • USB straight wire (accessory)
    Used for USB port communicatio...
  • IT-E176 (accessory)
    GPIB communication card
