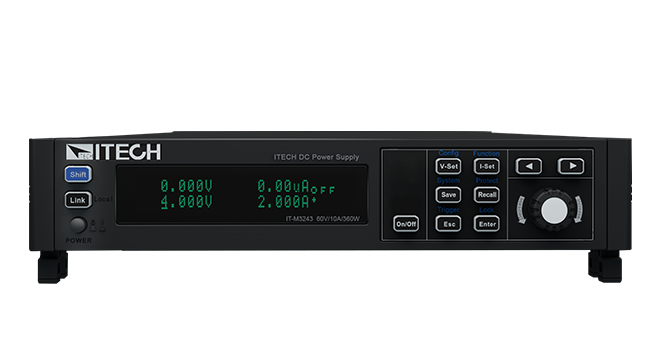

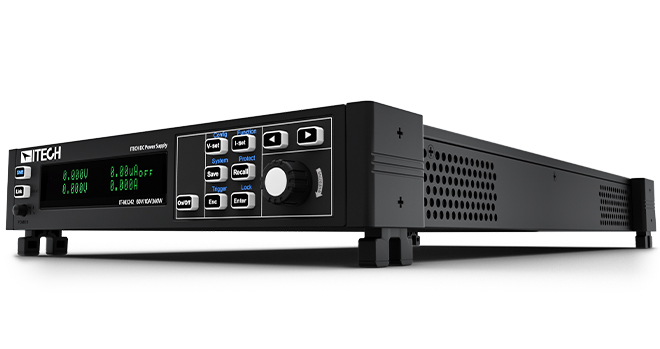

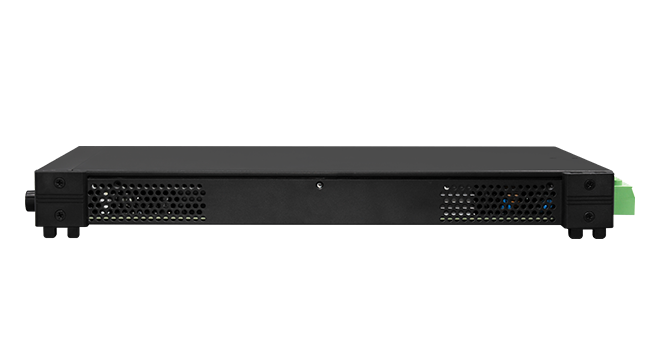

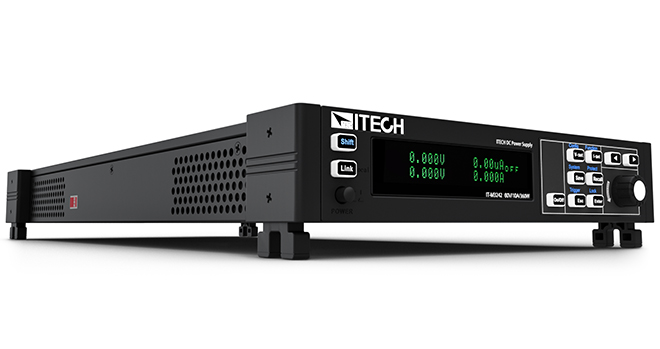

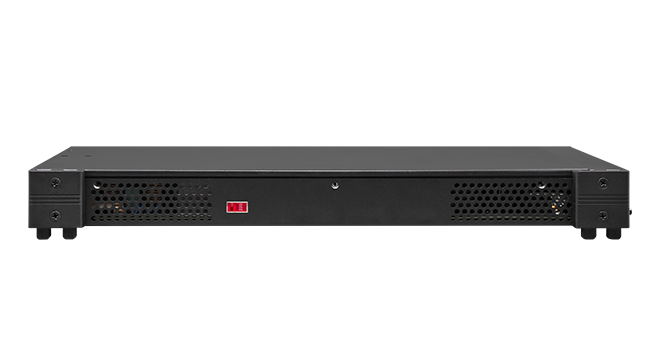

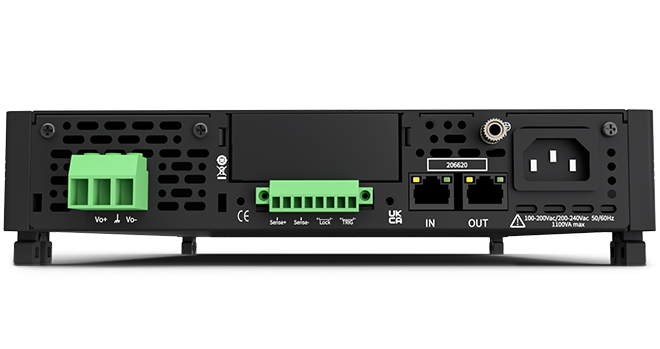

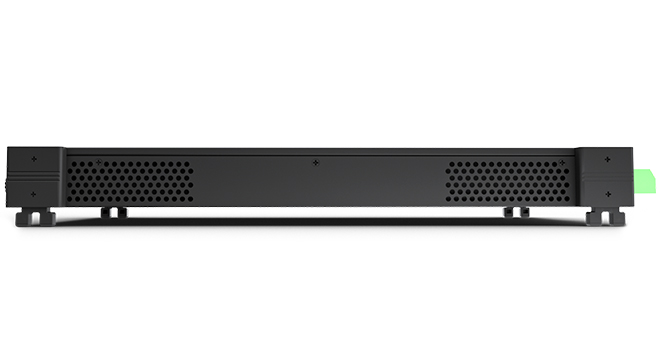

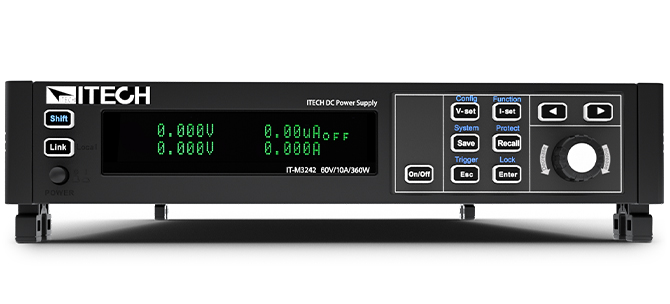

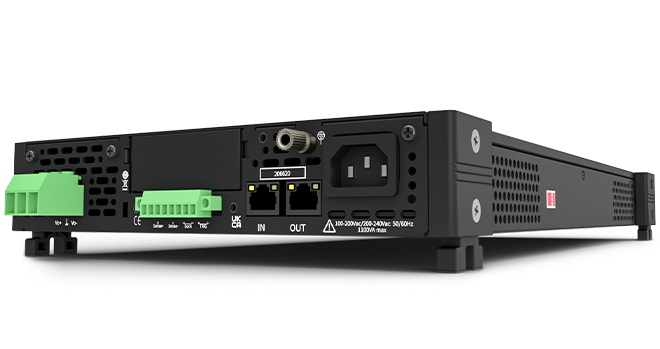

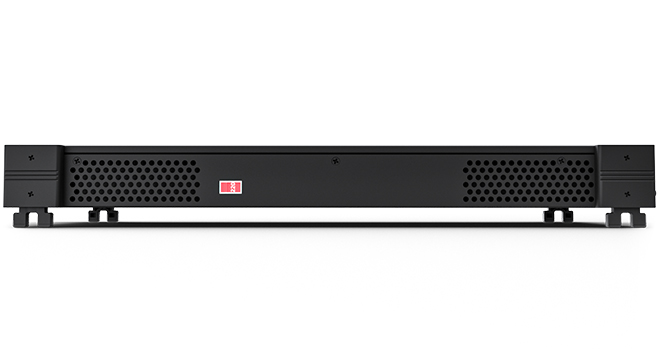

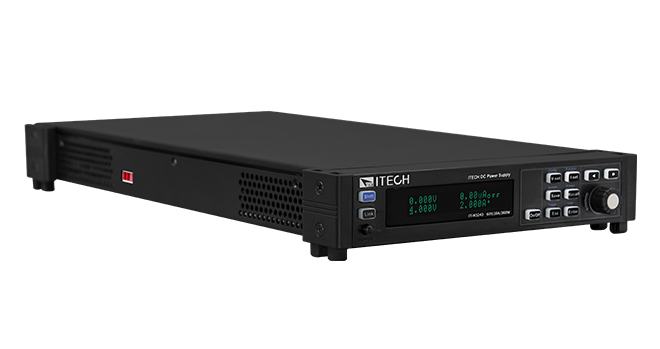

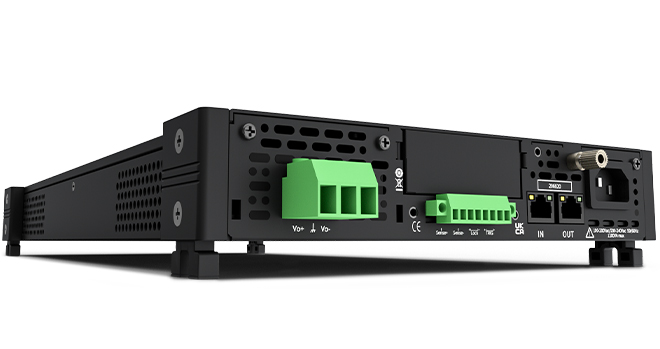

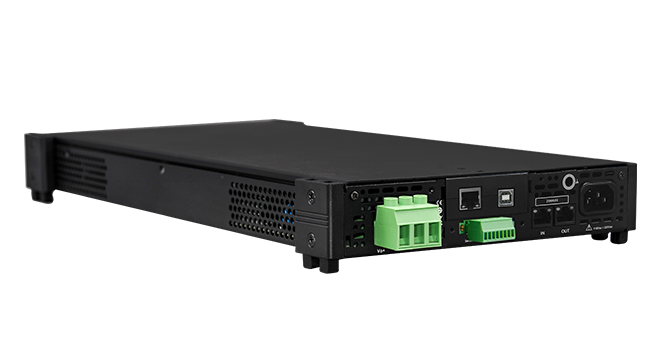

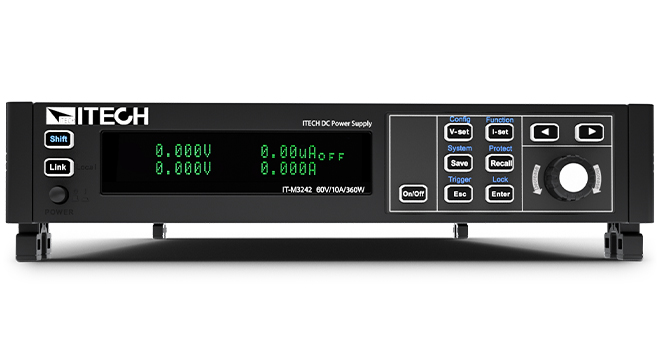

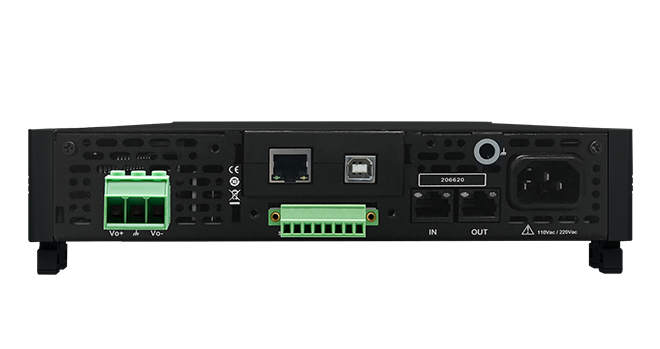

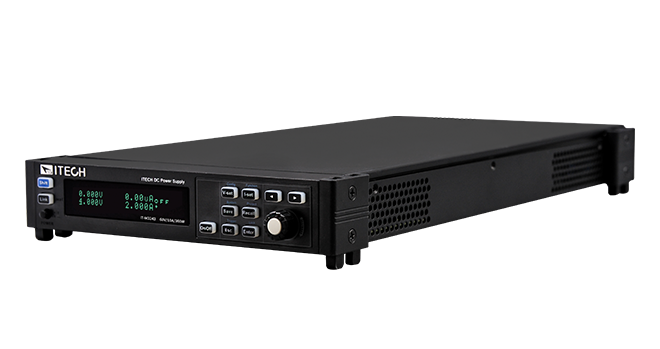

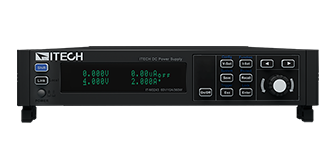

IT-M3200 High Precision Programmable DC Power Supply
IT-M3200 high precision programmable DC power supply adopts a mixed modes design, which not only takes into account high power and low ripple output, but also has dynamic load response, switching between multiple current measurement ranges. It meets various current measurement requirement from ampere level to micro-ampere level.IT-M3200 has a flexible modular architecture, independent multi-channel design with synchronous operation function. Users can configure each channel arbitrarily according to the test requirements of the DUT. The maximum channels is up to 16 which can meet various customized test requirements. It is widely used in the test fields of 3C products, semiconductor devices, 5G, IoT and medical electronic equipment, etc.


Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT-M3273
20V
20A
360W
1mV/10nA
≤0.03% + 5mV/≤0.05% + 100nA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ U
inquiry
IT-M3263
20V
20A
200W
1mV/10nA
≤0.03% + 5mV/≤0.05% + 100nA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ U
inquiry
IT-M3253
20V
20A
100W
1mV/10nA
≤0.03% + 5mV/≤0.05% + 100nA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ U
inquiry
IT-M3243
60V
10A
360W
1mV/10nA
≤0.02% + 12mV/≤0.05%+100nA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ U
inquiry
IT-M3233
60V
10A
200W
1mV/10nA
≤0.03% + 8mV/≤0.05% + 100nA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ U
inquiry
IT-M3223
60V
10A
100W
1mV/10nA
≤0.03% + 8mV/≤0.05% + 100nA
Optional RS232/CAN/LAN/GPIB/USB/RS485/external analog
½ U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

Feature

♦ 1U Half-rack, maximum power is up to 360W
♦ Wide range measurement
♦ Low ripple and noise
♦ High resolution, high accuracy and high stability
♦ Current readback is up to 10nA
♦ Four current measurement ranges Low/Middle/High/Auto
♦ CC/CV priority setting
♦ Foldback
♦ Adjustable rise/fall time, soft start / stop
♦ Independent control of multiple channels, up to 16 channels
♦ Different timing output of each channel to achieve synchronization or proportional tracking
♦ List
♦ Support multiple communication protocol,CANOPEN,LXI,SCPI
♦ Five optional cards, supporting RS232,CAN,LAN,GPIB, USB_TMC,USB_VCP,RS485, analog and IO communication
♦ Multiple protection, OVP/OCP/OTP/OPP/UVP/UCP

Functions and Advantages

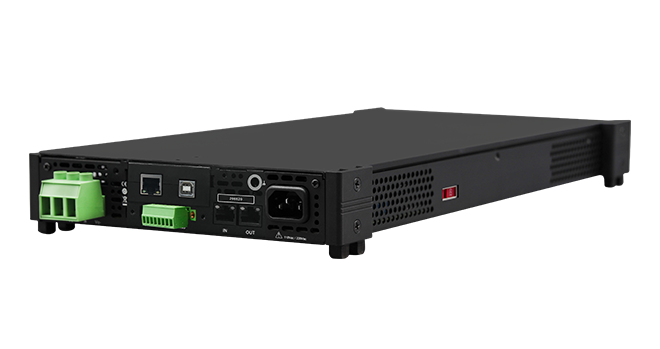

1U half rack Mini size

IT-M3200 provides 360W power output with 1U half rack size. Besides of the high-power density, it has high resolution, high accuracy and multi-range measurement functions. With auto-ranging design, the device covers a wide range of application requirements.


Multi-level current range

IT-M3200 provides multi-level (Low/Middle/High/Auto) current range switching, with esolution up to 10nA, to meet the current measurement needs from Amp level to micro-amp level. The user can realize the flexible switching between low and high current measurement at the Auto level, no need to control manually. This function is suitable for testing in the fields of 5G, wearable devices and other low power consumption products.





Foldback protection

IT-M3200 Series with Foldback protection function, is used for turn off the output when the power supply is switched by CV/CC, so as to protect certain DUT that are sensitive to voltage overshoot and current overshoot. User can specify working mode and set the delay time protection, if the current working mode is switched, it will trigger the protection and turn off the output when the delay time is used up.



Soft start/ stop function

IT-M3200 Series can be set the rise up and fall time of output voltage or current to prevent the sudden up and down of voltage at the moment of onloading or unloading, triggering the DUT false protection action.

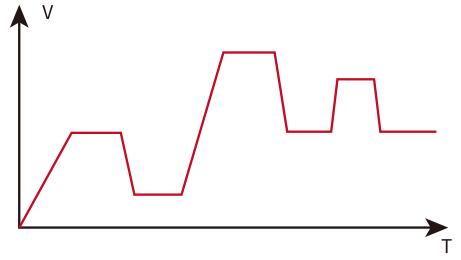

List Function

Users can modify and edit the output waveform of the voltage and current with time according to customer's test requirements without use the software, also can control the voltage rise and decline slope. the power supply will automatically transform the output according to pre-edited waveform after receiving the trigger signal.





Link function

The Link function is mainly designed for the cascade control of multiple devices. It is especially suitable for the multiple DUT synchronized testing or the application of multi-channel power input. IT-M3200 series support Duplicate / On-Off / Track of three modes, user only need to set the parameters on one of the power supplies, then automatically copy the set parameters or proportionally synchronize to other devices of M3200 series in the cascade circuit. IT-M3200 series may performance two solutions of synchronous power-on and in sequence power-on When the link-on / off function is used with the on / off delay function in the menu.
