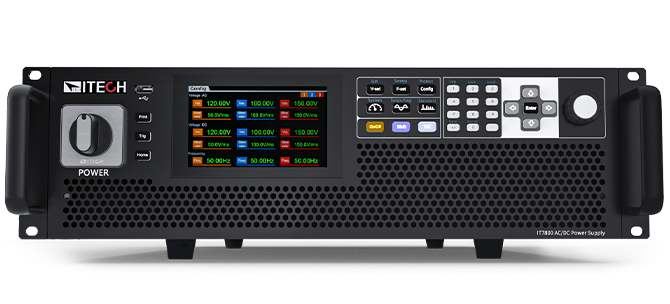

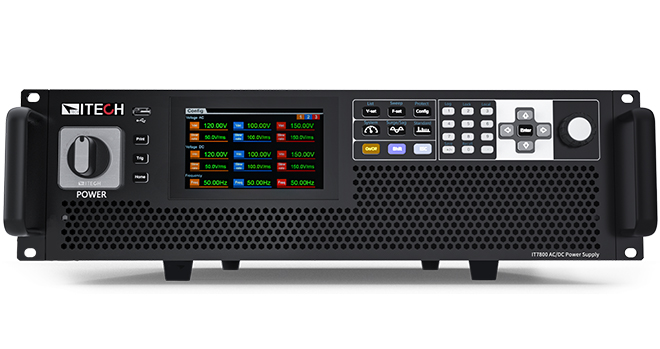

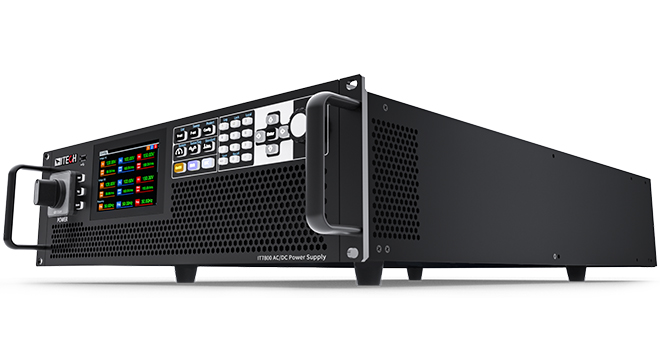

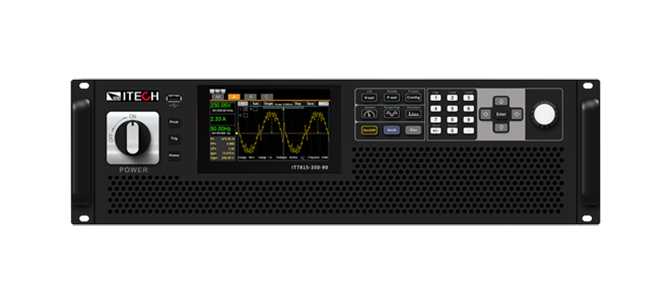

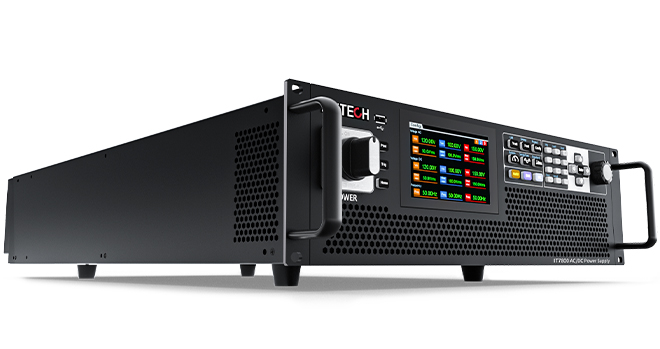

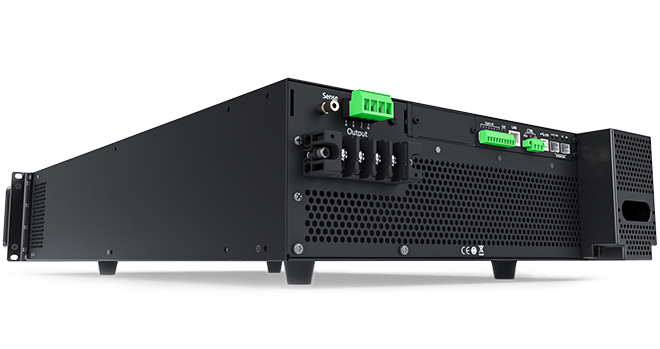

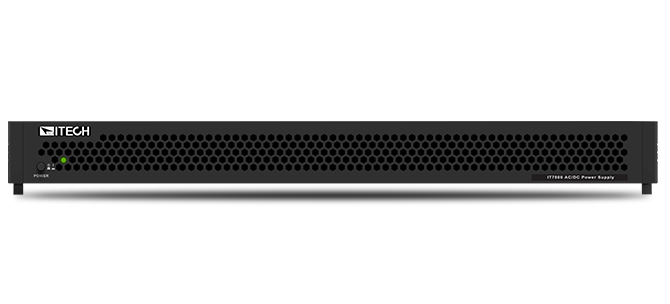

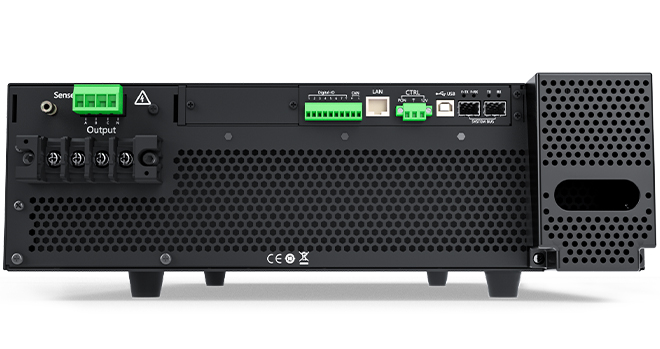

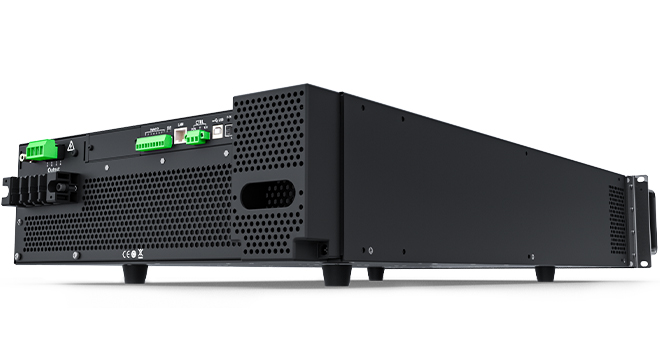

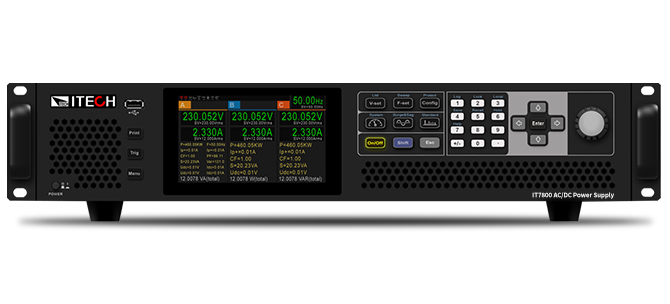

IT7800 High Power Programmable AC/DC Power Supply
Adopting advanced SiC technology,ITECH IT7800 3U high series of programmable AC/DC power supply, with power up to 15kVA, voltage ranges up to 350V L-N. Users are able to increase output power up to 960kVA by configuring master-slave parallel. With intuitive LCD touch panel interface, users can be quickly familiar with the unit operation. IT7800 series is built-in power meter and arbitrary waveform generator, which is able to simulate harmonics and other arbitrary waveform output. Users can choose single phase, three-phase, reverse phase, and multi-channel totally 4 output modes, with programmable output, and complete measurements, ITECH IT7800 series is designed for new energy, power electronics, research institutes etc.
Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT7803J-350-30U
350 V
30 A
3 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT7803-350-30U
350 V
30 A
3 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT7802-350-10U
350 V
10 A
2 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
2U
inquiry
IT7802-350-10U-ATE
350 V
10 A
2 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
1U
inquiry
IT7815-350-90
350 V
90 A
15 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT7812-350-90
350 V
90 A
12 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT7809-350-90
350 V
90 A
9 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT7806-350-90
350 V
90 A
6 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT7806-350-30
350 V
30 A
6 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
2U
inquiry
IT7806-350-30-ATE
350 V
30 A
6 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
1U
inquiry
IT7805-350-30U
350 V
30 A
5 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
3U
inquiry
IT7804-350-20U
350 V
20 A
4 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
2U
inquiry
IT7804-350-20U-ATE
350 V
20 A
4 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
1U
inquiry
IT78135-350-810
350 V
810 A
135 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
37U
inquiry
IT78120-350-720
350 V
720 A
120 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
37U
inquiry
IT78105-350-630
350 V
630 A
105 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT7890-350-540
350 V
540 A
90 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT7875-350-450
350 V
450 A
75 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT7860-350-360
350 V
360 A
60 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
27U
inquiry
IT7845-350-270
350 V
270 A
45 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
15U
inquiry
IT7830-350-180
350 V
180 A
30 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
6U
inquiry
IT78165-350-990
350 V
990 A
165 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
37U
inquiry
IT78150-350-900
350 V
900 A
150 kVA
0.01V/0.01A
<0.1%+0.1%FS /<0.1%+0.2%FS
USB/CAN/LAN/digital I/O port, optional GPIB/analog & RS232
37U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features
Adopt advanced SiC technology
High power density, 3U up to 15kVA
Master-slave parallel with current sharing technology, up to 960kVA, multiple units in parallel work as one
Voltage up to 350V L-N
Output frequency: 16-2400Hz, programmable slew rate setting for changing voltage and frequency
Built-in single/3-phase AC power meter
Multi-channel function, single unit can connect/test up to 3 DUTs*2
4 output modes: AC/DC/AC+DC/DC+AC
Choose single phase, three-phase, reverse phase output mode, to simulate 3-phase imbalance, 3-phase harmonics imbalance, 3-phase split phase test, reverse phase sequence tests for 3-phase models and etc.*3
Comprehensive harmonics measurement and analysis, up to 50th*4
Harmonics, inter-harmonics waveform synthesizer
Programmable output impedance
Intuitive touch screen interface
Simulate arbitrary waveform output, support csv. file import
High current crest factor, suitable for inrush current testing*5
Built-in various waveforms
List mode simulates the power supply reproduction function to realize the simulation function of instantaneous power interruption
Provide rich trigger configuration, synchronously capture the voltage waveform of DUT, collect and simulate data.
Output 0-360 ° start/stop phase angle can be set
Surge/Sag function
Relay CTRL function, to cut off the connection between instrument and DUT 6-phase, 12-phase power output
Built-in USB/CAN/LAN/Digital IO interface, optional GPIB /
Analog&RS232

Completion of civil avionics/electric ships and IEC testingby optional software*1

Support CANopen*1, Modbus, LXI, SCPI and other communication protocols

*1 coming soon, stay tuned

*2 Not available for 3k/5kVA model

*3 3k/5kVA model only support single phase

*4 Voltage and current harmonic analysis

    Voltage harmonic simulation

*5 Maximum CF is up to 6 within peak currnt range



Functions and Advantages

ac power source



3U/15kVA high power density

With only 3U size, ITECH IT7800 can reach both 15kVA for power and 350V L-N for voltage. Compared with conventional AC source, it saves a lot of space for users.

Master/Slave parallel

ITECH IT7800 series can provide more power by using the master/slave parallel output function, with 64 units in paralleled, to achieve total output power max. 960kVA. IT7800 comes with synchronous On/Off input and output signals, which ensures the synchronization of paralleling and ensures synchronous current sharing of multiple modules. After paralleling, not only all functions are retained, but there is no loss of accuracy. Make the construction of the power system faster, more flexible, and more economical, whether it is a stand-alone test or ATE system, it can be easily reached.

ac power supply




Multi-channel function

The multi-channel function of the IT7800 series allows users to test 3 independent DUT at the same time without adding additional hardware configuration. In the traditional solution, 3 tests for the DUT, the user needs to configure 3 AC power supplies; and one IT7800 device can meet multi-channel testing requirements. For example, IT7815-350-90 rated power is 15kVA, can provide single-phase/three-phase 15kVA DUT test, can also meet up to 3* single-phase DUT test, one machine with multiple functions, fully improves the equipment utilization.

AC、DC、AC+DC、DC+AC

The IT7800 series has four output modes: AC, DC, AC+DC, DC+AC. It not only provides pure AC/DC output, but also can use AC+DC and DC+AC output modes to realize "AC output plus DC bias" And "DC output waveform with ripple", which cover a wider range of applications.

ac power source



Single phase, three phase, reverse phase

The IT7800 series provides multiple output modes such as single-phase, three-phase and reverse phase, which can be selected by the user through the panel menu. By programming ,it can simulate three-phase unbalance, three-phase harmonic unbalance, lack of phase test, phase sequence reverse connection and other tests, which are flexible and cover more applications. At the same time, IT7800's reverse mode can also provide a high-voltage test solution. Its voltage can be increased to twice and the power remains 2/3.
For example, if it is set to 350V, the actual output voltage can reach 700V after the reverse mode is selected.

ac power source
