IT-M7700 High Performance Programmable AC Power Supply
ITECH newly-launched IT-M7700 High Performance Programmable AC Power Supply combines intelligence and flexibility, breaks through the huge defects of the traditional AC power source, reduces the size to only 1⁄2 1U, maximizes space utilization. Built-in power meter and arbitrary waveform generator make it convenient to simulate various arbitrary waveform outputs. IT-M7700 is designed with advanced technologies of programmable AC and DC power supplies, and can be widely used in multiple fields such as power energy products, home appliances, industrial electronics, avionics, IEC standards testing.
Find a product
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT-M7723
300V/600V
12A/6A
1200VA
0.1V/10mA
≤0.03%+12mV/ ≤0.05%+20uA
Standard USB/LAN/IT-E1206, optional RS232/external analog/GPIB/CAN
1U
inquiry
IT-M7722E
300V
10A
1000VA
0.1V/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
Standard USB/LAN/IT-E1206, optional RS232/external analog/GPIB/CAN
½ 2U
inquiry
IT-M7722
300V
6A
600VA
0.1V/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
Standard USB/LAN/IT-E1206, optional RS232/external analog/GPIB/CAN
½ 1U
inquiry
IT-M7721
300V
3A
300VA
0.1V/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
Standard USB/LAN/IT-E1206, optional RS232/external analog/GPIB/CAN
½ 1U
inquiry
IT-M7722D
300V
3A (CF=6)
300VA/300W
0.1V/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
Standard USB/LAN/IT-E1206, optional RS232/external analog/GPIB/CAN
½ 2U
inquiry
IT-M7723D
300V
7.5A (CF=6)
750VA/750W
0.1V/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
Standard USB/LAN/IT-E1206, optional RS232/external analog/GPIB/CAN
½ 2U
inquiry
IT-M7722L
300V
6A
600VA
0.1V/10mA
≤0.03%+12mV/ ≤0.05%+20uA
Optional RS232/CAN/LAN/GPIB/USB/external analog
½ 1U
inquiry
IT-M7721L
300V
3A
300VA
0.1V/10mA
≤0.03%+12mV/ ≤0.05%+20uA
Optional RS232/CAN/LAN/GPIB/USB/external analog
½ 1U
inquiry
IT-M7723E
300V
15A
1500VA
0.1V/0.1mA
≤0.03%+12mV/ ≤0.05%+20uA
Standard USB/LAN/IT-E1206, optional RS232/external analog/GPIB/CAN
½ 2U
inquiry
Show all
* The above specifications are subject to change without prior notice.
Product Features

Features
1U half-rack compact design, increased space utilization
AC, DC, AC + DC output modes, DC voltage offset simulation in AC + DC mode
 Built-in AC power meter with powerful functions
Built-in abundant waveform database, including 30 harmonic distortion waveforms*1
List mode, simulate civil AC working condition, realize instantaneous power interruption simulation function*1*2
Arbitrary waveform output function, user can customize waveforms*1
Harmonic analysis function*1*5
Harmonic simulation function*1
Surge/Trap function*1
Front and rear edge Dimmer phase dimming function
Settable output waveform start/stop phase angle *1
Higher voltage available by two units in series connection*1*3*4
Three phase output available by three units Y-type external connections*1*3*4
♦ Standard USB/LAN interface, optional accessories such as IT-E1205 (GPIB), IT-E1207 (RS232 & CAN), IT-E1208 (external analog & RS485), IT-E251 (multi-stage interconnecting running cable), etc.
*1 IT-M7721L/IT-M7722L does not have this function
*2 Realize by PC software
*3 IT-M7723 does not have this function
*4 Coming soon

Functions and Advantages

Application

♦ RD, verification and testing of the small-size power supply production
♦ IEC standard testing
♦ Communications/Telecommunications
♦ AC power simulation
♦ Manufacturing and process control
♦ Battery or LCD applications
♦ ATE testing

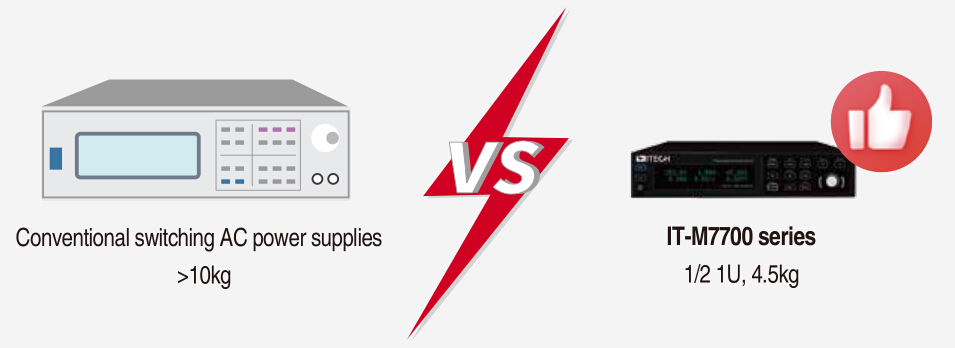

½ 1U Mini size

The conventional AC power supplies are much bigger and heavier, difficult to move. The size of IT-M7700 is only ½ 1U, but its max. power is up to 600VA. Its weight is 4.5kg only. With such high-power density design, the space is better utilized. So it can be portable, convenient for bench testing and good for system building.




Multiple output modes: AC, DC, AC+DC

The output modes of IT-M7700 series include AC, DC, AC+DC. It can not only provide pure AC or DC output but also AC+DC output mode which can expand application fields and test DC offset element.




Surge / Trap Wave Function

IT-M7700 series provide surge and trap wave simulation function. User can add surge/trap wave to the output sine wave accordingly, to simulate voltage frequent fluctuation. Thus to simulate the real testing environment.




Built-in abundant waveform database

IT-M7700 series has a variety of user-defined waveforms such as square, saw and triangle. There are 30 built-in distortion waveforms for users to edit and recall, which can also be used as the basic waveform to be recalled during list programming.



ITM7700 series has 30 built-in harmonic distortion waveforms
