ITS9500 Power Supply Test System

ITS9500power supply test system is a convenient,practical and cost-efficient testingsystem,it designed for switching power supply test.The standard 5U unitintegrates electronic loads,programmable AC power supplies,programmable DCpower supplies,noise analyzers,timeing analyzers,digital electricmeters,oscilloscope,I/O card and other instruments, ITS9500 can be installed onthe counter top or inside a standard cabinet. The system provides 80 test itemsand through the powerful automatic test software of ITS9500, users can selecttest items based on the charscteristics of the DUT to easily complete the testprocess. ITS9500 can be widely applied for testing AC and DC power supply, power converters,chargers, car charger and other products of the test.



  • Product catalog
  • Product video
    Operational video
  • Related technical articles
  • User's Manual
Find a product
Model
Voltage
Current
Power
Resolving
Accuracy
Interface
Size
No Records
Show all
* The above specifications are subject to change without prior notice.
Product Features

Features

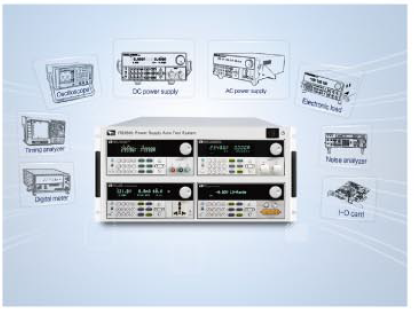

♦ Standard 5U unit integrates DSO, electronic loads,programmable AC power supplies, programmable DC power supplies,noise analyzers,timeing analyzers, digital electric meters,oscilloscope,I/O card and other instruments, ITS9500 can be installed on the counter top or inside a standard cabinet.
 Best cost-effective unit
 Modular design for easy maintenance
 Over 80 test items
 Simultaneous operation of 8 systems at maximum
♦ A power supply unit which can test several single outputs at one time
 Test program management/editing function
 Statistic report output/editing function
 Multi-level authority setting function
 User authority setting
♦ System accesses record
♦ Bar Code Reader supported by the software
 Optional external fixture for improving test speed
 Meet the ENERGY STAR measurement specification


Functions and Advantages

Modular design for easy maintenance

ITS9500 power supply test system adopts traditional modular design,forming an easy,and multi-functional power supply test platform. This facilitates future inspection and maintenance,and reduces the influence on the production line.

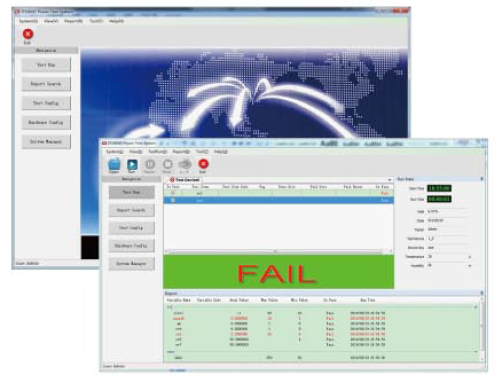

Easy operation and clear result display

ITS9500 test system, working together with teh test system, can realize such functions as editing, operation,test, and data analysis of power test items.
♦ The operation interface od thesoftware is simple and clean with five distinctive modules, and even users without programming ability can master the operation easily
♦ The status of final test results, which is PASS or FAULT, will be highlighted on the interface to ensure a fast and accurate view for operators.
