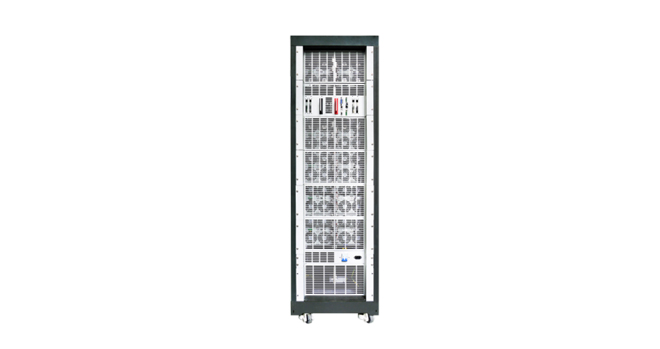

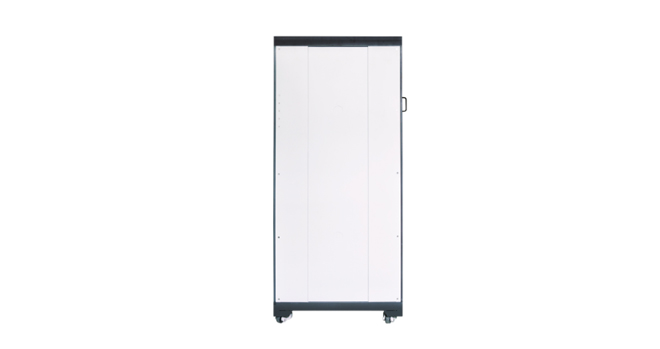

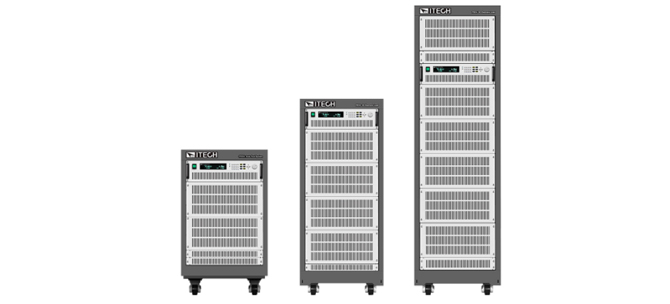

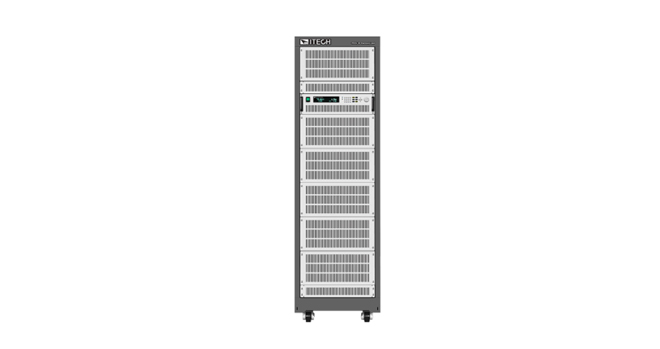

IT8900 High Performance High Power DC Electronic Load

IT8900 series of high performance high power dc electronic loads provide three voltage ranges 150V/600V/1200V. The power expands to 600kW by master-slave paralleling, and maintains stand-alone functions. 50kHz high speed measurement, six working modes, transient over-power loading capability, CV loop speed adjustment, Measurement function, 25kHz dynamic test and other multiple accurate testing functions make IT8900 series well-suited for types of high power applications. Built-in LAN/USB/RS232/GPIB interfaces are designed formany fields such as power supply, power battery, DC charging station, generators, military and aerospace etc.





Finden Sie ein Produkt
Model
Voltage
Current
Power
Resolution
Accuracy
Interface
Size
IT8918-600-720
600V
720A
18kW
1mV/1mA
±(0.025%+0.025%FS) ±(0.1%+0.1%FS)
24U
inquiry
IT8918-1200-360
1200V
360A
18kW
10mV/1mA
±(0.025%+0.025%FS) ±(0.05%+0.1%FS)
24U
inquiry
IT8922-150-1440
150V
1440A
22.5kW
1mV/10mA
±(0.025%+0.025%FS) ±(0.1%+0.1%FS)
24U
inquiry
IT8912-1200-240
1200V
240A
12kW
10mV/1mA
±(0.025%+0.025%FS) ±(0.05%+0.1%FS)
15U
inquiry
IT8924-600-960
600V
960A
24kW
1mV/1mA
±(0.025%+0.025%FS) ±(0.1%+0.1%FS)
24U
inquiry
IT8924-1200-480
1200V
480A
24kW
10mV/1mA
±(0.025%+0.025%FS) ±(0.05%+0.1%FS)
24U
inquiry
IT8930-150-1920
150V
1920A
30kW
1mV/10mA
±(0.025%+0.025%FS) ±(0.1%+0.1%FS)
24U
inquiry
IT8930-600-1200
600V
1200A
30kW
1mV/10mA
±(0.025%+0.025%FS) ±(0.1%+0.1%FS)
37U
inquiry
IT8930-1200-600
1200V
600A
30kW
10mV/1mA
±(0.025%+0.025%FS) ±(0.1%+0.1%FS)
37U
inquiry
IT8915-150-960
150V
960A
15kW
1mV/1mA
±(0.025%+0.025%FS) ±(0.1%+0.1%FS)
15U
inquiry
IT8960-1200-1200
1200V
1200A
60KW
10mV/10mA
±(0.05%+0.05%FS) ±(0.1%+0.1%FS)
37U*2
inquiry
IT8936-600-1440
600V
1440A
36kW
1mV/10mA
±(0.025%+0.025%FS) ±(0.1%+0.1%FS)
37U
inquiry
IT8936-1200-720
1200V
720A
36kW
10mV/1mA
±(0.025%+0.025%FS) ±(0.05%+0.1%FS)
37U
inquiry
IT8937-150-2400
150V
2400A
37.5KW
1mV/10mA
±(0.025%+0.025%FS) ±(0.1%+0.1%FS)
37U
inquiry
IT8945-150-2500
150V
2500A
45kW
1mV/10mA
±(0.025%+0.025%FS) ±(0.1%+0.1%FS)
37U
inquiry
IT89108-600-2500
600V
2500A
108KW
1mV/10mA
±(0.05%+0.05%FS) ±(0.1%+0.1%FS)
37U*2
inquiry
IT89108-1200-2160
1200V
2160A
108KW
10mV/10mA
±(0.05%+0.05%FS) ±(0.1%+0.1%FS)
37U*2
inquiry
IT8948-600-1920
600V
1920A
48KW
1mV/10mA
±(0.05%+0.05%FS) ±(0.1%+0.1%FS)
24U*2
inquiry
IT8948-1200-960
1200V
960A
48KW
10mV/1mA
±(0.05%+0.05%FS) ±(0.05%+0.1%FS)
24U*2
inquiry
IT8960-150-2500
150V
2500A
60KW
1mV/10mA
±(0.05%+0.05%FS) ±(0.1%+0.1%FS)
24U*2
inquiry
IT8960-600-2400
600V
2400A
60KW
1mV/10mA
±(0.05%+0.05%FS) ±(0.1%+0.1%FS)
37U*2
inquiry
IT8912-600-480
600V
480A
12kW
1mV/1mA
±(0.025%+0.1%FS) ±(0.05%+0.1%FS)
15U
inquiry
IT8972-600-2500
600V
2500A
72KW
1mV/10mA
±(0.05%+0.05%FS) ±(0.1%+0.1%FS)
37U*2
inquiry
IT8972-1200-1440
1200V
1440A
72KW
10mV/10mA
±(0.05%+0.05%FS) ±(0.1%+0.1%FS)
37U*2
inquiry
IT8990-150-2500
150V
2500A
90KW
1mV/10mA
±(0.05%+0.05%FS) ±(0.1%+0.1%FS)
37U*2
inquiry
Show all
* The above specifications are subject to change without prior notice.
Produktmerkmale

High resolution for voltage / current: 1mV/1mA
Supports master-slave paralleling, maintains stand-alone functions
Provides six working modes: CC/CV/CR/CW/CC+CV/CR-LED
Adjustable CV loop speed, well-suited for multiple power supplies
Transient over-power loading capability
Ultrafast loop response, available for 18Bits high speed test with up to 50kHz voltage/current measuring speed
Unique Measure function, designed for rise/fall time measurement of voltage or current
Overall modular design, convenient for maintenance and service
Full protection: OVP/OCP/OPP/overheat protection/anti-reverse protection/current limit protection/power limit protection
Built-in LAN/USB/RS232/GPIB interfaces
Supports VISA/USBTMC/SCPI
25kHz dynamic mode
Short circuit function
Battery test function
OCP/OPP test function
♦ Remote sense
♦ I-monitor
External analog control
 Up to 100 groups memories, with power off memory function
Control via software by computer





Funktionen und Vorteile



Master-slave paralleling, maintains stand-alone functions

IT8900 series support master-slave paralleling for same models, to expand power up to 600kW. The user operates on master panel and the slave unit will be distributed automatically, simple to use. Master-slave paralleling can achieve stand-alone functions, traditional paralleling is not workable under CV mode. However IT8900 series can parallel under CC/CV modes innovatively. IT8900 series are mainly applicable in the fields of DC charging station, power battery, high voltage UPS and military high power DC motor tests.

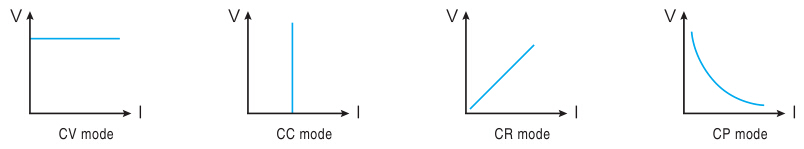

4 basic load operation modes

IT8900 series provide constant voltage, constant current, constant resistance and constant power modes, to meet the test needs from customers.

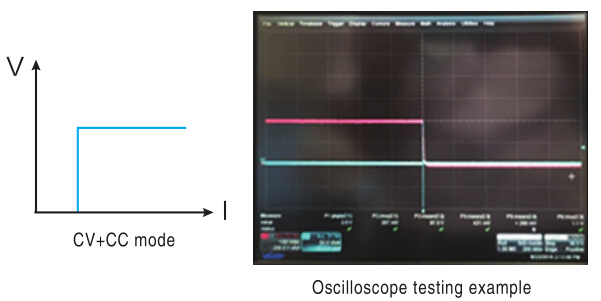

CV+CC compound operation mode

CV+CC mode is a new increased mode for operation, it can help engineer to solve the transient surge current problem and avoid DUT trigger or DUT burned problem in application testing, for example, in charging station testing, under CV working mode, electronic load will rising up to 700V, current value will suddenly rise up because current rising speed is too fast, the result is that charging station will OCP so that no output from charging station, to avoid the similar problem. We can use CV+CC mode to set CC(I-Limit) value, setting interior current value will no more than OCP value in charging station, it can effectively avoid the current surge and solve the OCP problem.



CR-LED (CC+CR) operation mode

IT8900 series CR-LED (CC+CR) mode can supply LED power drive testing and be applied in led current simulation, to simulate the ripple in real testing, CR-LED can improve speed and stability for control loop, it can solve the voltage and current jitter problem in LED driver testing, furthermore, IT8900 can increase frequency width, it can help users to achieve PWM dimmer testing.

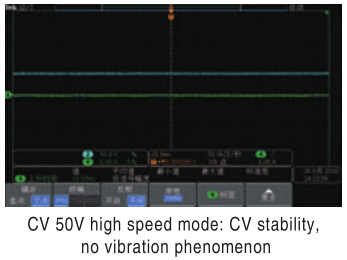

CV loop speed is adjustable

We believe that many engineers will meet the below similar situation, load loop speed is too fast or too slow to match some slow or high speed power supply features, result is testing value will vibrated. This problem can be well solved with IT8900 series, when appear mismatch situation, users can adjust interior CV loop speed with “High-rate” or “Low-rate” to achieve the best matching point.

This function can conveniently help customers to solve the different matching problems. Even it can save the cost and improve testing efficiency, after a simply setting up, one electronic load will meet the multi complicated DUT testing, CV high-low rate testing: power supply: IT6015 setting up: 60V/1A Blue is voltage waveform, green is current waveform

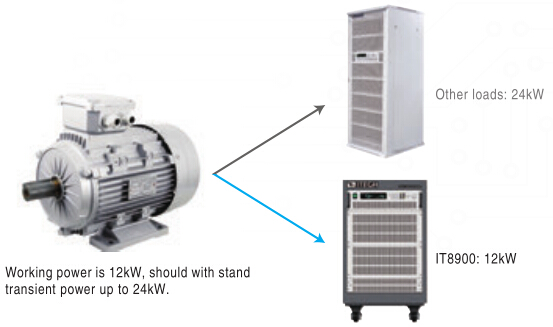

Transient over power loading capability

Transient over power loading capability, it will make load to take over power loading capability in short time, users no need to select types as maximum power value, it can extremely save cost. This function can be widely used the DUT transient peak power supply ability. Such as DC motor start-up simulation, start transient power will be several times of common working power, or else, it can simulate power supply’s transient over load features, application in discharging for high power battery in transient time.
